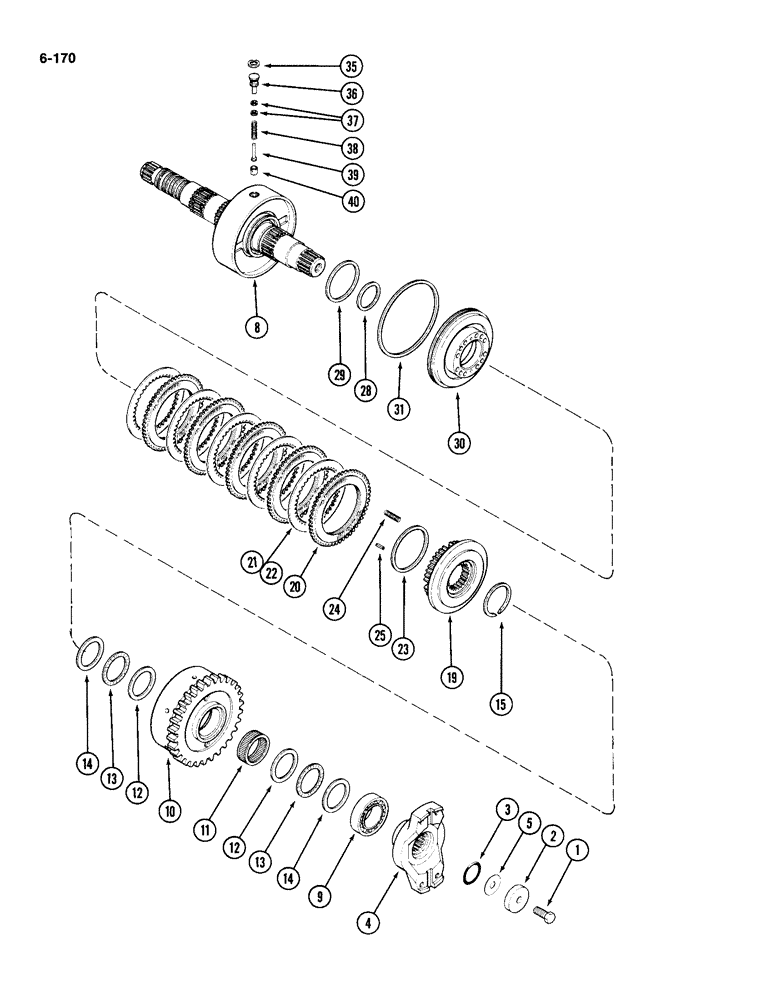

Запчасти Case IH 4994 (6-170) - UPPER 7 INCH (178 MM) CLUTCH ASSEMBLY (06) - POWER TRAIN

A179322

TRANSMISSION

TRANSMISSION ASSEMBLY - complete, Includes: Ref. 1 - 40 and 41 - 66 on Figure 6-172

1шт.

1

114-613

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

BOLT - hex, 5/8 NF x 1-1/2 inch

1шт.

2

A49270

WASHER

PLATE - retainer

1шт.

3

A31183

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

O-RING - yoke seal

1шт.

4

A49266

FORK

YOKE - input

1шт.

5

A49267

SHIM

SHIM - bearing, 0.0003 inch (0.076 mm)

1шт.

5

A49268

SHIM

SHIM - bearing, 0.010 inch (0.254 mm)

1шт.

5

A49269

SHIM

SHIM - bearing, 0.020 inch (0.508 mm)

1шт.

A49178

CLUTCH PACK

CLUTCH ASSEMBLY - upper 7 inch (178 mm), Includes: Ref. 8 - 40 and 41 - 65 on Figure 6-172

1шт.

8

A49196

SHAFT

SHAFT ASSEMBLY - upper clutch

1шт.

9

A49179

TAPERED BEARING,2.16" ID x 3.74" OD x 1.14"

BEARING - roller

1шт.

10

A49183

OIL SEAL

GEAR - drive ring

1шт.

11

A49180

ROLLER BEARING,2.5" ID x 2.87" OD

BEARING - roller

1шт.

12

A49206

WASHER

WASHER - thrust

2шт.

13

A49182

NEEDLE BEARING

BEARING - thrust, needle

2шт.

14

A49205

WASHER

WASHER - thrust

2шт.

15

A46974

RING, SNAP

RING SNAP RING - snap, external

1шт.

19

A49186

HUB

HUB - clutch

1шт.

20

A49188

LARGE PLATE

PLATE, LARGE PLATE - clutch, friction

5шт.

21

A49191

LARGE PLATE

PLATE, LARGE PLATE - clutch, flat steel

1шт.

A total of five steel plates used in combination of coned and flat plates is to be used for required clearance.

1шт.

22

A49189

LARGE PLATE

PLATE, LARGE PLATE - clutch, coned steel

1шт.

A total of five steel plates used in combination of coned and flat plates is to be used for required clearance.

1шт.

23

A46993

OIL SEAL

RING - piston

1шт.

24

A49192

SPRING

SPRING - piston return

12шт.

25

138-114

LOCK PIN,7/32" x 1", Slotted

Pin, 7/32" x 1", Slotted

12шт.

28

A46994

OIL SEAL

RING - piston

1шт.

29

A49169

OIL SEAL

RING - piston

1шт.

30

A49187

PISTON

PISTON - clutch

1шт.

31

A49166

SEALING RING

RING - sealing, piston

1шт.

A49385

VALVE

VALVE KIT - dump, clutch, Includes: Ref. 35 - 40

2шт.

35

D28157

SNAP RING,0.875", Int, #87

Ring, Snap, 0.875", Int, #87

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - valve (Reference No. A49195)

1шт.

37

NSS

NOT SOLD SEPARAT

SHIM - sleeve, 0.079 inch (0.020 mm) (Reference No. A49202)

1шт.

37

NSS

NOT SOLD SEPARAT

SHIM - sleeve, 0.039 inch (0.010 mm) (Reference No. A49203)

1шт.

38

NSS

NOT SOLD SEPARAT

SPRING - valve (Reference No. A49193)

1шт.

39

NSS

NOT SOLD SEPARAT

STEM - valve (Reference No. A49194)

1шт.

40

NSS

NOT SOLD SEPARAT

VALVE - feedback (Reference No. A49204)

1шт.

40

1981314C1R

REMAN-CLUTCH DISC

Clutch Plate - Torque Limiter

2шт.

40

1981314C1C

CORE-CLUTCH DISC

Return Part Number

2шт.
