(6-168) - TRANSMISSION REAR HOUSING, CONTROL VALVE AND REGULATOR VALVE

Запчасти Case IH 4994 (6-168) - TRANSMISSION REAR HOUSING, CONTROL VALVE AND REGULATOR VALVE (06) - POWER TRAIN

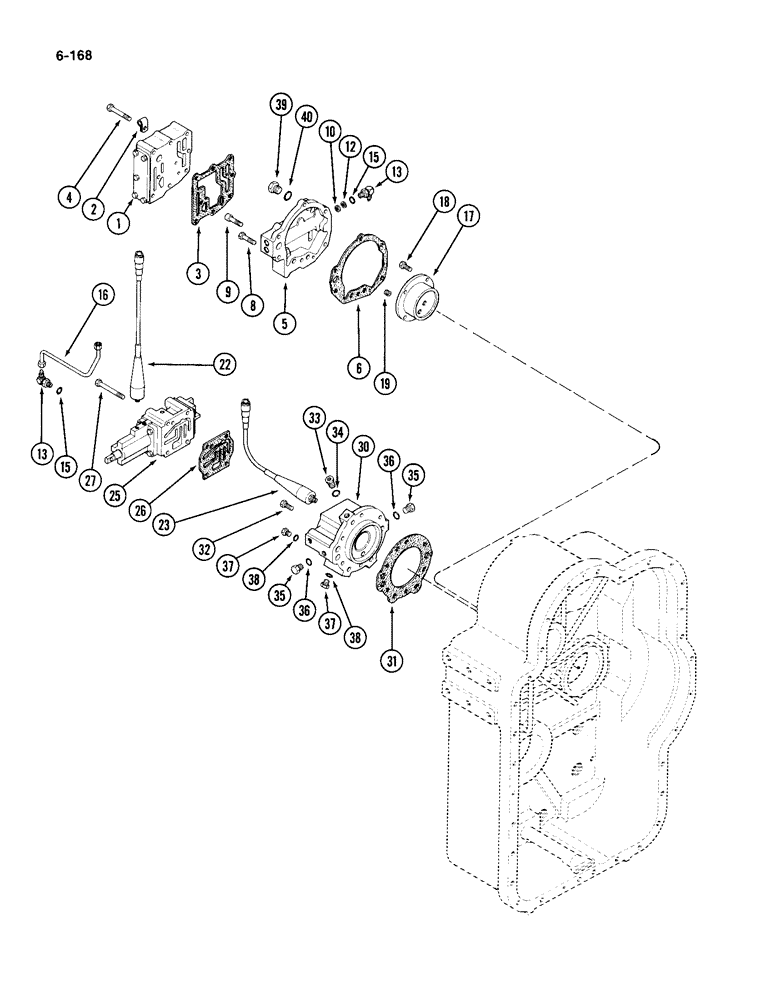

Схема запчастей Case IH 4994 - (6-168) - TRANSMISSION REAR HOUSING, CONTROL VALVE AND REGULATOR VALVE (06) - POWER TRAIN
23
2
10
1
8
12
31
27
9
6
32
15
39
40
26
13
25
19
36
18
37
5
22
13
35
38
34
4
30
37
16
38
35
17
36
3
33
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A179322

TRANSMISSION

ASSEMBLY - complete, Includes: Ref. 1 - 40

1шт.

1

A49342

VALVE

ASSEMBLY - regulator (See Figure 6-190)

1шт.

2

A46999

CLAMP

- tube

2шт.

3

A49354

GASKET

- valve mounting

1шт.

4

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

8шт.

5

A49357

PLATE

- ditch

1шт.

6

A49355

GASKET

- ditch

1шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

9

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT - hex socket, 3/8 NC x 1-3/4 inch

3шт.

10

A49356

SCREEN

- filter

1шт.

12

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, 0.50", Int, #50

1шт.

13

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

ASSEMBLY - 90 degree adjustable, 3/8 tube 9/16-18 x 1/4 tube 7/16-20 inch thread, Incl. Ref. 15

2шт.

15

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.

16

A49353

TUBE ASSY.

TUBE ASSEMBLY - oil

1шт.

17

A49300

RETAINER

- bearing

1шт.

18

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- hex, 3/8 NC x 7/8 inch

4шт.

19

A49170

PLUG

- pipe, orifice

2шт.

22

A49373

CABLE

ASSEMBLY - pressure switch

1шт.

23

A49294

CABLE

ASSEMBLY - pressure switch

1шт.

25

A49358

VALVE

ASSEMBLY - control, clutch (See Figure 6-192)

1шт.

26

A49374

GASKET

- valve mounting

1шт.

27

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

4шт.

30

A49381

MANIFOLD

COLLECTOR - clutch

1шт.

31

A49376

GASKET

- collector mounting

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

33

A49164

PLUG

- valve body

1шт.

34

D38602

O-RING,50 mm ID

- body plug

1шт.

35

76349

PLUG,9/16" - 18 ORB

Assy, 3/8 tube, Incl. Ref. 36 Hex Hd, 9/16"-18 ORB

4шт.

36

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 16 x 2 mm)

1шт.

37

9672438

PLUG,7/16" - 20 ORB

Assy, 1/4" tube, Incl. Ref. 38 Hex Hd, 7/16"-20 ORB

3шт.

38

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 23/64 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.

39

214389

PLUG,3/4" - 16 ORB

Assy, 1/2 tube, Includes Ref. 40 Hex Hd, 3/4"-16 ORB

1шт.

40

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.
