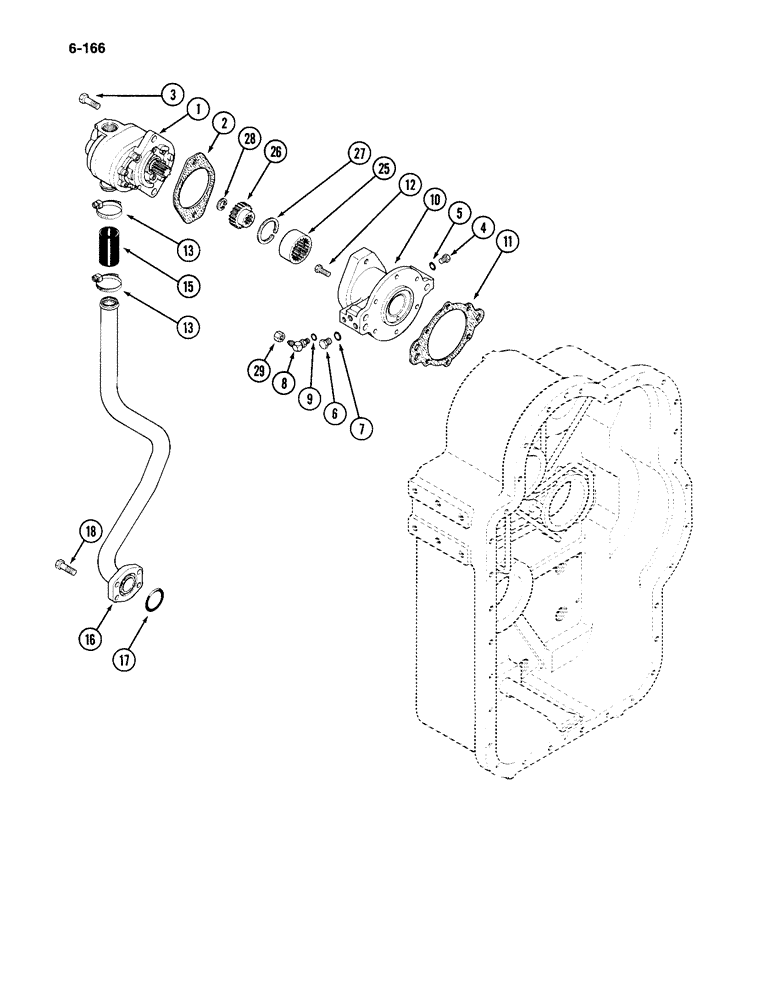

Запчасти Case IH 4994 (6-166) - TRANSMISSION REAR HOUSING, HYDRAULIC PUMP (06) - POWER TRAIN

A179322

TRANSMISSION

ASSEMBLY - complete, Includes: Ref. 1 - 29

1шт.

1

A49303

PUMP

ASSEMBLY - hydraulic

1шт.

2

A49295

GASKET

- pump mounting

1шт.

3

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

4

9672438

PLUG,7/16" - 20 ORB

Assy, 1/4" tube, Incl. Ref. 5 Hex Hd, 7/16"-20 ORB

2шт.

5

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.

6

76349

PLUG,9/16" - 18 ORB

Assy, 3/8 tube Hex Hd, 9/16"-18 ORB

2шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 16 x 2 mm)

1шт.

8

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSEMBLY - 90 degree adjustable, 1/4 tube 7/16-20 inch thread, Includes: Ref. 9

2шт.

9

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.

10

A49290

COVER

- oil supply

1шт.

11

A49292

GASKET

- supply cover

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

13

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

15

A49301

HOSE

- suction

1шт.

16

A49321

TUBE

- suction

1шт.

17

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- suction tube

1шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

25

NLS

NO LONGER SERVICED

- pump

1шт.

26

A49293

ADAPTER

- pump drive

1шт.

27

D41419

RING

- snap, internal

1шт.

28

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

29

A49162

CAP

- hex, 7/16-20 inch thread

1шт.
