(6-164) - TRANSMISSION REAR HOUSING, COVERS AND RANGE SELECTOR

Запчасти Case IH 4994 (6-164) - TRANSMISSION REAR HOUSING, COVERS AND RANGE SELECTOR (06) - POWER TRAIN

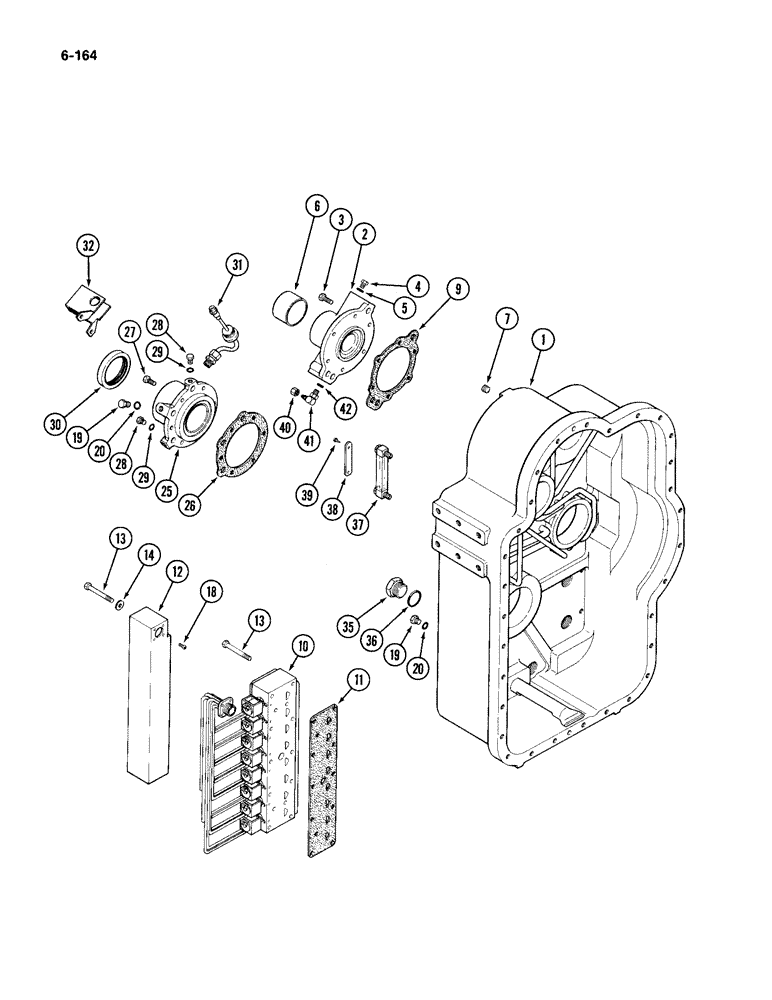

Схема запчастей Case IH 4994 - (6-164) - TRANSMISSION REAR HOUSING, COVERS AND RANGE SELECTOR (06) - POWER TRAIN
14
42
26
19
11
36
12
4
31
40
3
19
18
41
28
20
7
38
28
39
35
5
13
9
32
6
29
29
27
1
30
13
10
25
20
37
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A179322

TRANSMISSION

ASSEMBLY - complete, Includes: Ref. 1 - 42

1шт.

1

A49304

HOUSING

ASSEMBLY - rear (See Figure 6-160)

1шт.

2

A49291

COVER

- oil supply (Without PTO)

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

4

9672438

PLUG,7/16" - 20 ORB

Assy, 1/4" tube, Incl. Ref. 5 Hex Hd, 7/16"-20 ORB

2шт.

5

D38602

O-RING,50 mm ID

- plug

1шт.

6

A49288

COVER

- upper shaft (Without PTO)

1шт.

7

221-1663

PLUG,Hex Hd, 3/8"-18

- hex, 3/8 inch PT

1шт.

9

A49292

GASKET

- cover

1шт.

10

REF

INSTRUCTION

SELECTOR ASSEMBLY - range selector (See Figure 6-188)

1шт.

11

A49341

GASKET

- valve mounting

1шт.

12

A49340

TERMINAL BOX

BOX - junction

1шт.

13

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch

10шт.

14

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

3шт.

18

173-57

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- round head slotted, No. 6 NC x 1/4 inch

4шт.

19

76349

PLUG,9/16" - 18 ORB

Assy, 3/8 tube, Incl. Ref. 20 Hex Hd, 9/16"-18 ORB

2шт.

20

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 10 x 2 mm)

1шт.

25

A49600

RETAINER

- bearing, rear

1шт.

26

A49272

GASKET

- retainer

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

28

9672438

PLUG,7/16" - 20 ORB

Assy, 1/4" tube, Incl. Ref. 29 Hex Hd, 7/16"-20 ORB

3шт.

29

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.

30

A46992

OIL SEAL

SEAL - oil, retainer

1шт.

31

A49274

SENSOR

- magnetic

1шт.

32

A49271

GUARD

- magnetic sensor

1шт.

35

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

ASSEMBLY - hex, 1-1/4 tube 1-5/8-12 inch thread, Includes: Ref. 36

1шт.

36

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-15/32 x 1-23/32 x 7/64 inch (37 x 44 x 3 mm)

1шт.

37

A49163

SIGHTGLASS

GAUGE - sight, oil level

1шт.

38

A49377

PLATE

- oil level

1шт.

39

A22907

DRIVE SCREW,Rd Hd, #4 x 1/4"

- drive

6шт.

40

A49162

CAP

- hex, 7/16-20 inch thread

1шт.

41

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

ASSEMBLY - 90 degree adjustable, 3/8 tube 9/16-18 thread x 1/4 tube 7/16-20 inch thread, Incl. Ref. 42

1шт.

42

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 16 x 2 mm)

1шт.
