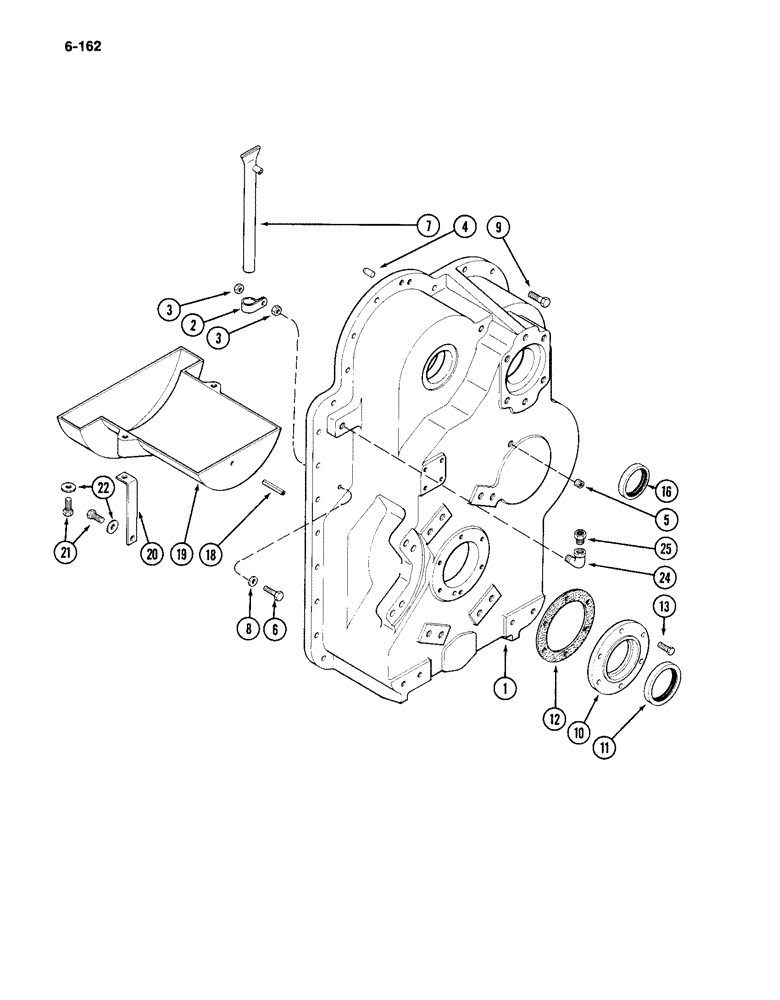

Запчасти Case IH 4994 (6-162) - TRANSMISSION FRONT HOUSING (06) - POWER TRAIN

A179322

TRANSMISSION

ASSEMBLY - complete, Includes: Ref. 1 - 25

1шт.

1

A49322

HOUSING

ASSEMBLY - front, Includes: Ref. 2 - 8

1шт.

2

A49157

CLAMP

- tubing

1шт.

3

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Stop 3/8"-16, G5

2шт.

4

A46977

DOWEL,1/2" x 1"

PIN - dowel, locating

2шт.

5

221-1663

PLUG,Hex Hd, 3/8"-18

- hex head pipe, 3/8 inch PT

1шт.

6

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

7

A49326

TUBE

- breather

1шт.

8

A49172

WASHER

- sealing

1шт.

9

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

30шт.

10

A49275

RETAINER

- bearing, front

1шт.

11

A46992

OIL SEAL

SEAL - oil

1шт.

12

A49273

GASKET

- retainer

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

16

A46980

OIL SEAL

- oil, upper clutch shaft

1шт.

18

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

1шт.

19

A49323

BAFFLE

- oil

1шт.

20

A49327

STRAP

- oil baffle

2шт.

21

26-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch

4шт.

22

195-106

WASHER,1/2"

- flat, 1/2 x 1-1/4 x 7/64 inch (13 x 32 x 3 mm)

4шт.

24

221-376

ELBOW,90 Degree, 3/8" NPT

- 90 degree, 3/8 x 3/8 inch PT

1шт.

25

A49161

BREATHER

- transmission

1шт.
