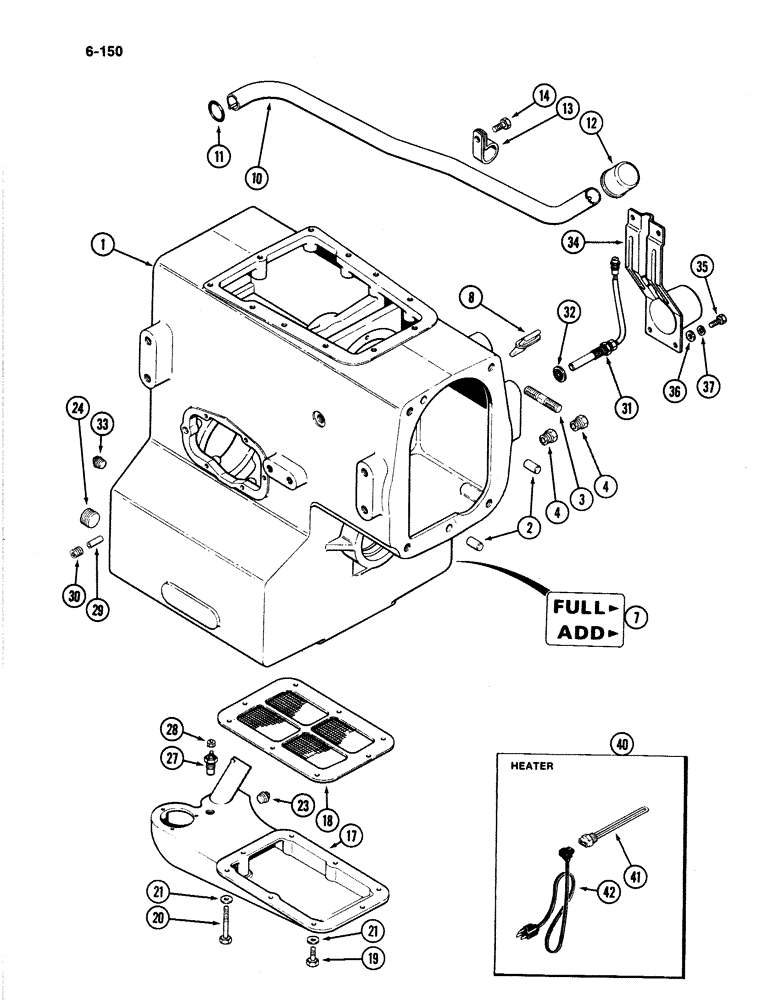

Запчасти Case IH 4894 (6-150) - TRANSMISSION HOUSING (06) - POWER TRAIN

1

A157249

CASE

HOUSING - transmission

1шт.

2

A28269

PIN

- dowel, 3/4 x 1-1/4 inch (19 x 32 mm)

2шт.

3

A151866

STUD

- clutch housing

4шт.

4

A156111

GAUGE

- sight, oil lever

2шт.

7

321-2470

DECAL

- oil level

1шт.

8

A144878

FILTER

- oil bypass

1шт.

10

A157267

TUBE

- filler, transmission oil

1шт.

11

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- filler tube sealing

1шт.

12

A27973

CAP

- breather

1шт.

13

49773

CLAMP

- tube

1шт.

14

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

17

A153931

COVER

- bottom, transmission housing

1шт.

18

A140228

FILTER SCREEN

SCREEN - bottom

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

7шт.

20

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

1шт.

21

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- oil pan

1шт.

23

221-844

PLUG,Hex Soc, 1/2"-14

- square head, 1/2 inch PT

1шт.

24

221-846

PLUG,Hex Soc, 1"-11 1/2

- hex socket, 1 inch PT (Use with no PTO)

1шт.

27

A147186

SWITCH ASSY

SWITCH - sending, transmission oil temperature, Includes: Ref. 28

1шт.

28

193-1000

NUT,Keps, w/LW,#10-32

- hex keps, no. 10-32

1шт.

29

A58049

TUBE

- lube oil passage

1шт.

30

A58050

PLUG

- oil tube

1шт.

31

A158683

TRANSMITTER

SENSOR - speed

1шт.

32

A75995

SEAL

- sensor

1шт.

33

221-844

PLUG,Hex Soc, 1/2"-14

- square head, 1/2 inch PT

1шт.

34

A164799

COVER

- transmission speed sensor

1шт.

35

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

36

196-525

WASHER - flat, 13/32 x 13/16 x 3/32 inch (10 x 21 x 2 mm)

4шт.

37

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

40

A164503

HEATER ASSY.

HEATER KIT - tranmission oil, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - heater, transmission oil

1шт.

42

A48171

HARNESS

CORD - heater element, 60 inch (1 524 mm), transmission oil

1шт.
