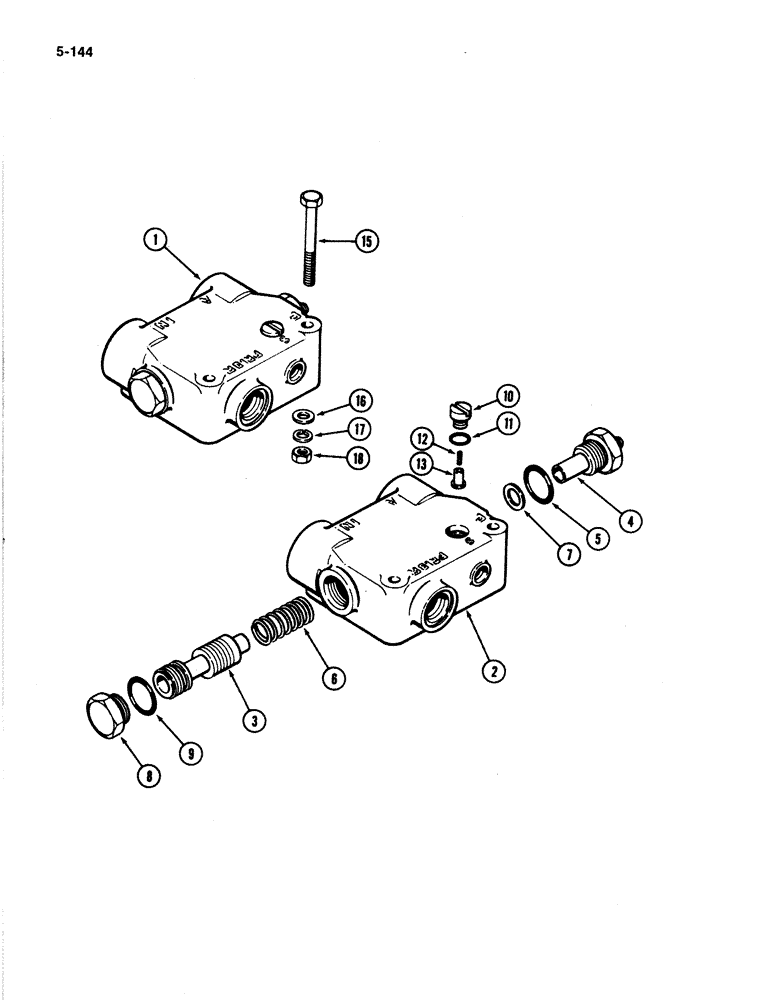

Запчасти Case IH 4894 (5-144) - REAR STEERING PRIORITY VALVE (05) - STEERING

1

AR145582

REMAN-HYD VALVE

VALVE ASSEMBLY - priority (Remanufactured)

1шт.

1

AC145582

CORE-VALVE HYD

RETURN NUMBER - priority valve (Use this nuber to return valve core for credit

1шт.

1

A145582

VALVE

ASSEMBLY - priority, flow control (New), Includes: Ref. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

BODY (Order A145582)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL (Order A145582)

1шт.

4

A47475

VALVE

ASSEMBLY - relief, Includes: Ref. 5

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 13/16 x 29/32 x 3/32 inch (21 x 23 x 2 mm) (Order A47478)

1шт.

6

A47477

SPRING

- relief, 27/32 O.D. x 2 inch free length (22 x 51 mm)

1шт.

7

A47476

SHIM,.010" Thk

Relief spring (0.254 mm) .010" Thk

1шт.

7

H162974

SHIM,.015" Thk

Relief spring (0.323 mm) .015" Thk

1шт.

7

H746172

SHIM,.030" Thk

Relief spring (0.762 mm) .030" Thk

1шт.

7

F8236

SHIM

- relief spring, 0.065 inch (0.1593 mm)

1шт.

8

A47429

PLUG

ASSEMBLY - spool, Includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 13/16 x 29/32 x 3/32 inch (21 x 23 x 2 mm) (Order A47478)

1шт.

10

H229203

PLUG

- poppet spring

1шт.

11

NSS

NOT SOLD SEPARAT

OPRING - 3/8 x 15/32 x 3/32 inch (10 x 12 x 2 mm) (Order A47478)

1шт.

12

F36082

SPRING

- check poppet, 5/32 O.D. x 1/2 inch free length (4 x 13 mm)

1шт.

13

F36081

VALVE POPPET

POPPET - check

1шт.

A47478

KIT

- repair (Includes ref. 5, 9 and 11)

1шт.

15

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

16

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

2шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

2шт.
