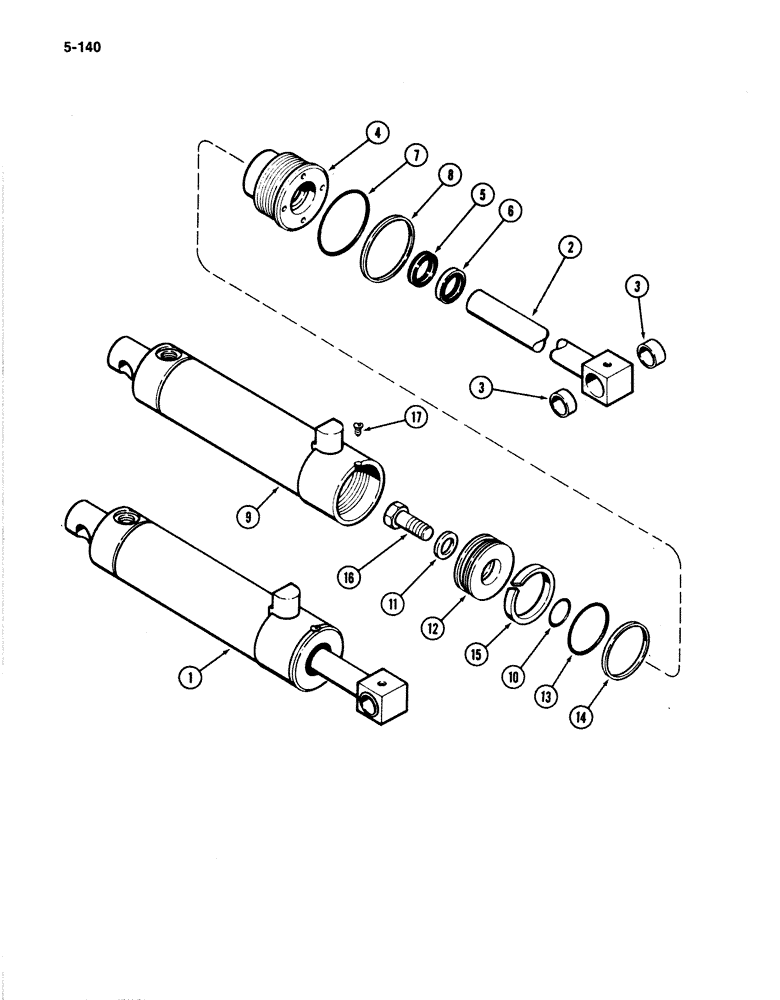

Запчасти Case IH 4894 (5-140) - REAR STEERING CYLINDER (05) - STEERING

1

G102020

CYLINDER

ASSEMBLY - rear steering, Includes: Ref. 2 - 17

2шт.

2

G102025

ROD

ASSEMBLY - piston, Includes: Ref. 3

1шт.

3

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- pivot, rod

2шт.

G34204

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 8 and cylinder gland

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder (Order G35204) (Reference No G35241)

1шт.

5

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- rod, piston

1шт.

Part of Cylinder Seal Repair Kit, P/N G102728

1шт.

6

D95141

WIPER SEAL

WIPER - rod, piston

1шт.

Part of Cylinder Seal Repair Kit, P/N G102728

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland, 3 inch (76 mm) ID

1шт.

Part of Cylinder Seal Repair Kit, P/N G102728

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland

1шт.

Part of Cylinder Seal Repair Kit, P/N G102728

1шт.

9

G102021

TUBE

- cylinder

1шт.

10

A59066

O-RING,1.239" ID x 1.379" OD

- piston 1-1/4 inch (32 mm) ID

1шт.

Part of Cylinder Seal Repair Kit, P/N G102728

1шт.

11

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston rod

1шт.

12

G102029

PISTON

- cylinder (Order G104106)

1шт.

13

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

0-RING - piston, 2-1/2 inch (64 mm) ID

1шт.

Part of Cylinder Seal Repair Kit, P/N G102728

1шт.

14

G32034

RING

SEAL - piston

1шт.

Part of Cylinder Seal Repair Kit, P/N G102728

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston 3 inch (76 mm) diameter

1шт.

Part of Cylinder Seal Repair Kit, P/N G102728

1шт.

16

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

17

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - round head slotted, No. 8-32 x 1/4 inch

1шт.

G102728

KIT

- cylinder seal repair, Includes: ref. nos. 5, 6, 7, 8, 10, 13, 14, and 15

1шт.
