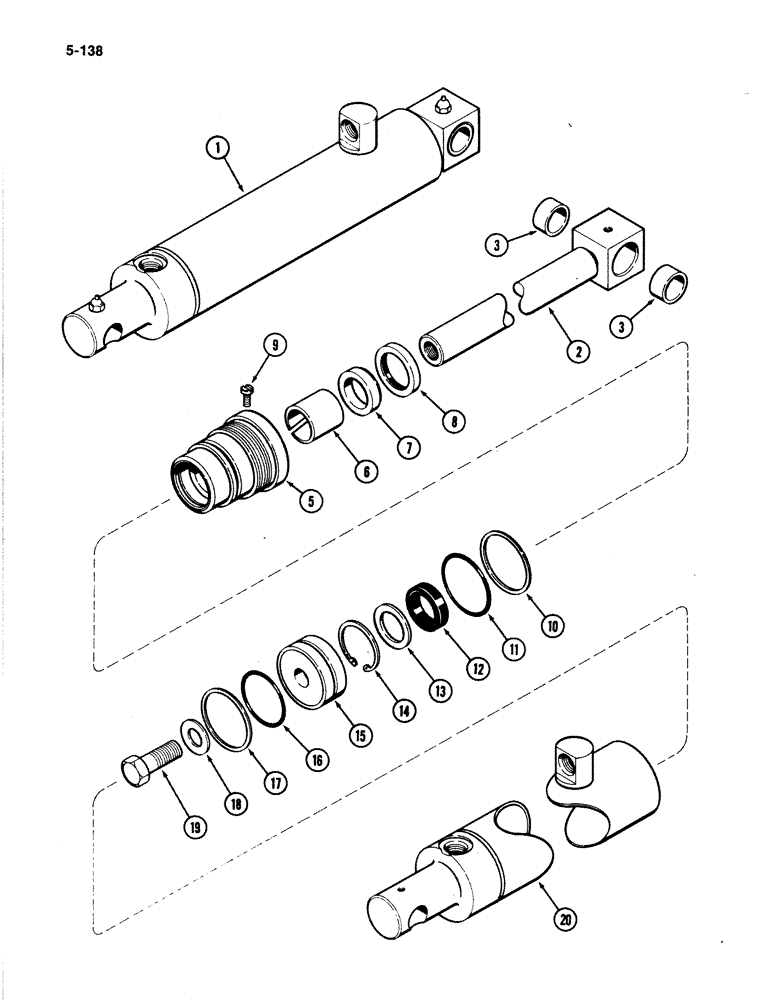

Запчасти Case IH 4894 (5-138) - FRONT STEERING CYLINDER (05) - STEERING

1

G104623

CYLINDER

ASSEMBLY - front steering, Includes: Ref. 2 - 15

2шт.

2

G104628

ROD

ASSEMBLY - piston, Includes: Ref. 3

1шт.

3

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- rod

2шт.

G104633

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder (Order G104633) (Reference No G104631)

1шт.

6

G104634

BEARING,31.73mm ID x 31.78mm OD

- rod

1шт.

Part of Cylinder Repair Kit, P/N G104992

1шт.

7

G104607

RING

- retaining

1шт.

Part of Cylinder Repair Kit, P/N G104992

1шт.

8

D95141

WIPER SEAL

WIPER - rod

1шт.

Part of Cylinder Repair Kit, P/N G104992

1шт.

9

187-1424

SCREW - oval head, No 10 NC x 1-1/4 inch

6шт.

10

A35901

RING

WASHER - gland locking

1шт.

Part of Cylinder Repair Kit, P/N G104992

1шт.

11

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Kit, P/N G104992

1шт.

12

G104670

SEAL

- rod

1шт.

Part of Cylinder Repair Kit, P/N G104992

1шт.

13

G104195

SPACER

- rod seal

1шт.

14

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

1шт.

Part of Cylinder Repair Kit, P/N G104992

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - cylinder rod (Order G104623) (Reference G104097)

1шт.

Reference numbers in description are for CARES use only and can not be ordered separately

1шт.

16

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- loader

1шт.

Part of Cylinder Repair Kit, P/N G104992

1шт.

17

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

- sealing

1шт.

Part of Cylinder Repair Kit, P/N G104992

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston retaining, Includes: Ref. 19 and 20

1шт.

19

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

20

G104624

TUBE

- cylinder

1шт.

G104992

KIT

- cylinder repair, Includes: ref. nos. 6, 7, 8, 10, 11, 12, 14, 16, and 17

1шт.
