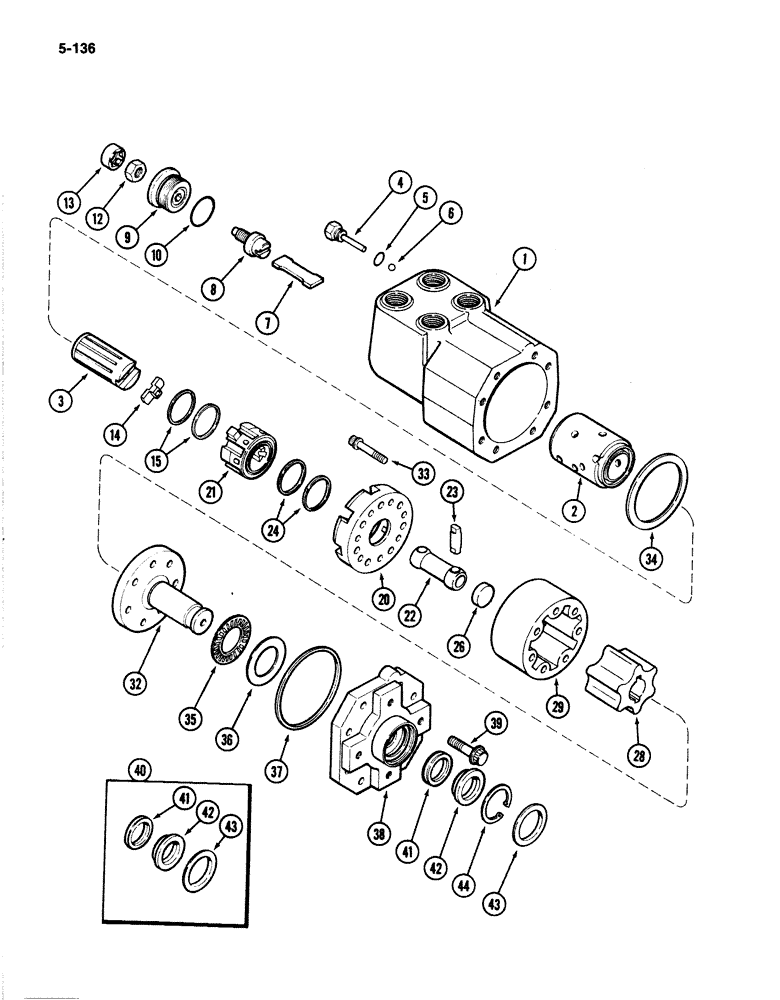

Запчасти Case IH 4894 (5-136) - FRONT STEERING PUMP AND VALVE (05) - STEERING

A47840

PUMP

AND VALVE ASSEMBLY - steering, remanufactured, Includes: Ref. 1 - 44

1шт.

A47841

RETURN NUMBER - steering valve and pump (Use this number to return pump core for credit, Includes: Ref. 1 - 44

1шт.

A145862

PUMP

AND VALVE ASSEMBLY - steering, new, Includes: Ref. 1 - 44

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING (ORDER A145862) (Reference No. A47393)

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - valve (Order A145862) (Reference No. A47024)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A145862) (Reference No. A47025)

1шт.

4

A47019

PLUG

ASSEMBLY - pump, Includes: Ref. 5

1шт.

5

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

6

A47018

BALL

- 9/32 inch (7 mm) diameter

1шт.

7

A45196

FAN

BLADE - torsion

2шт.

8

A45193

ADJUSTMENT SCREW,3/8" - 24 x 1.44"

SCREW - adjusting

1шт.

9

A47006

PLUG

ASSEMBLY - pump, Includes: Ref. 10

1шт.

10

A47005

O-RING,1.053" ID

- 1-3/64 ID x 1/8 inch width (27 x 3 mm)

1шт.

12

129-156

NUT,Jam, 2"-4.5, G5

- hex jam, 3/8 inch NC

1шт.

13

A47007

CAP

- pump

1шт.

14

A47668

RING

- drive

1шт.

15

A47421

SEALING RING

RING ASSEMBLY - seal

1шт.

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - input (Order components), Includes: Ref. 20 and 21 and manifold assembly

1шт.

A47419

MANIFOLD

ASSEMBLY - pump

1шт.

20

NSS

NOT SOLD SEPARAT

MANIFOLD (Order A47419) (Reference No. A47420)

1шт.

21

NSS

NOT SOLD SEPARAT

COMMUTATOR (Order A47419) (Reference No. A47028)

1шт.

22

F19635

LINK

- drive

1шт.

23

F19636

PIN

- lock

1шт.

24

A47421

SEALING RING

RING ASSEMBLY - seal

1шт.

26

A47413

SPACER

- 47/64 x 1/8 inch (19 diameter x 3 mm) wide

1шт.

A47395

ROTOR

SET - pump, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

ROTOR - pump (Order A47395)

1шт.

29

NSS

NOT SOLD SEPARAT

STATOR - pump (Order A47395)

1шт.

32

A47009

SHAFT

- input

1шт.

33

A47417

SCREW,1/4" x 1 7/8"

- 12 point cap, 1/4 NF x 1-7/8 inch

7шт.

34

A160850

WASHER

- hardened, 2-1/4 x 2-13/16 x 1/32 inch (57 x 71 x 1 mm)

1шт.

35

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING - thrust, needle

1шт.

A47670

KIT

- thrust washer, Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.035 inch (0.89 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.041 inch (1.02 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.047 inch (1.19 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.053 inch (1.35 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.059 inch (1.50 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.065 inch (1.65 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.071 inch (1.80 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.077 inch (1.80 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.083 inch (2.11 mm)

1шт.

37

A47004

RING

- seal, 2-3/32 x 3-3/64 x 1/16 inch (53 x 78 x 2 mm)

1шт.

38

A47016

COVER

- upper

1шт.

39

A45197

12 PT SCREW,1/4" - 28 x 0.875"

SCREW - 12 point cap, 1/4 NF x 1 inch

8шт.

40

A47038

SEAL KIT,Pump Shaft

KIT - cover seal, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

SEAL - shaft (Reference No. A45667)

1шт.

42

NSS

NOT SOLD SEPARAT

SEAL - spacer (Reference No. A44585)

1шт.

43

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

- shaft

1шт.

44

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.
