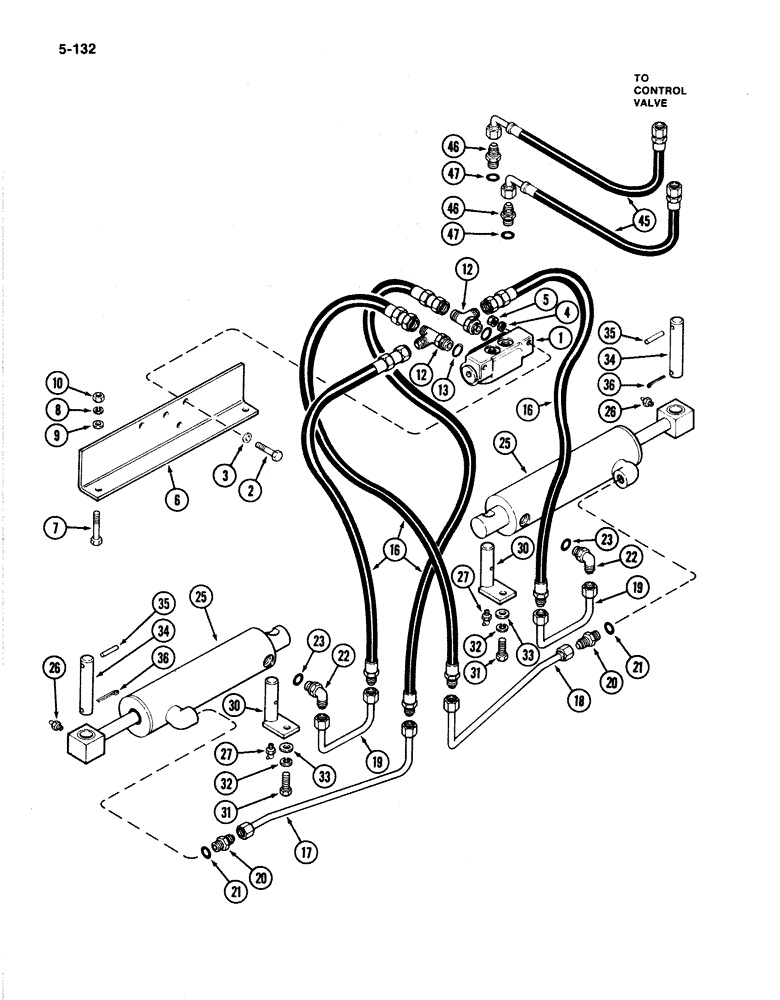

Запчасти Case IH 4894 (5-132) - REAR STEERING HYDRAULICS CHECK VALVE AND CYLINDERS (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - check (See Figure 5-146)

1шт.

2

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

3

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

2шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

5

129-106

NUT,9/16"-12, G5

- hex, 5/16 inch NC

2шт.

6

A161785

ANGLE

- mounting, check valve

1шт.

7

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

2шт.

10

126-103

NUT - hex, 3/8 inch NC

2шт.

12

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

CONNECTOR ASSEMBLY - branch, Includes: Ref. 13

2шт.

16

A161688

HOSE

- valve to cylinder tube (Order A162278)

4шт.

17

A77058

TUBE

- hose to right steering cylinder

1шт.

18

A77059

TUBE

- hose to left steering cylinder

1шт.

19

A77057

TUBE

- valve, Serial Range: hose-cylinder

2шт.

20

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - 1/2 tube x 3/4-16 inch, Incl. Ref 21

2шт.

22

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, 1/2 tube x 3/4-16 inch, Includes: Ref. 23

2шт.

25

REF

INSTRUCTION

CYLINDER ASSEMBLY - rear steering (See Figure 5-140)

2шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

27

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

30

A160384

PIN

- inner, steering cylinder

2шт.

31

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

33

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

2шт.

34

A160382

PIN,25.4mm OD x 132.08mm L

- outer, steering cylinder

2шт.

35

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

PIN - groove, 1/4 x 1/2 inch (6 x 13 mm)

2шт.

36

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), (6 x 44 mm) 1/4" x 1 3/4"

2шт.

45

A160449

HOSE

- control valve to check valve

2шт.

46

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube x 3/4-16 inch (At check valve), Incl. Ref 47

2шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/34 inch (16 x 21 x 2 mm)

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.

47

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.
