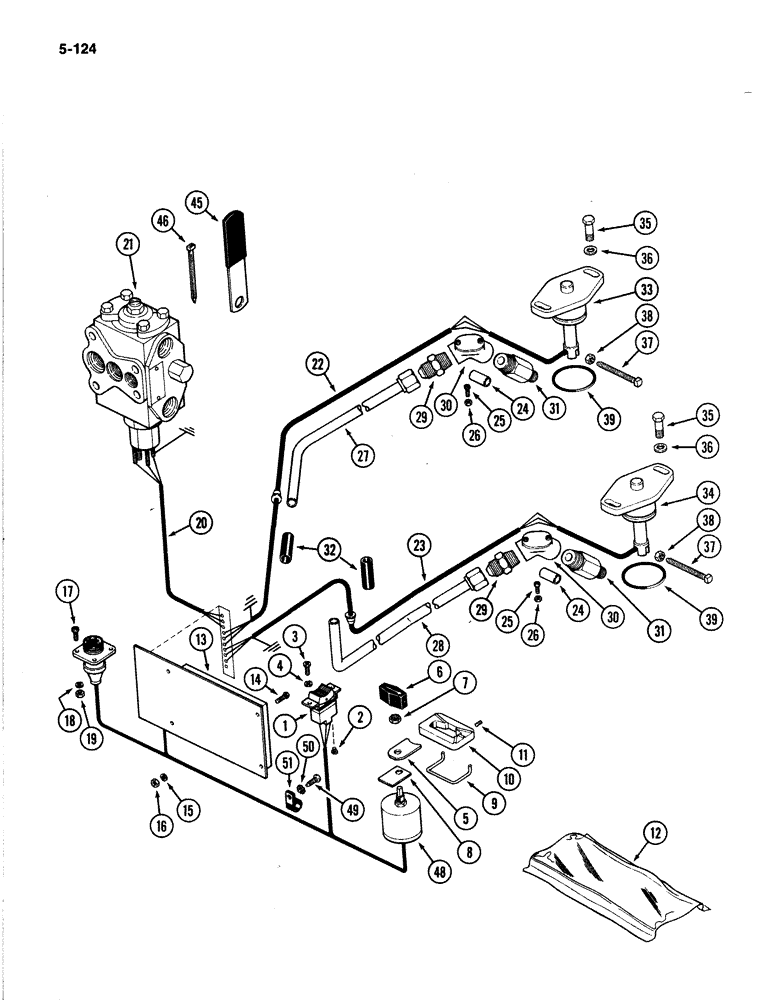

Запчасти Case IH 4894 (5-124) - REAR STEERING ELECTRIC CONTROLS (05) - STEERING

1

A162070

SWITCH

- rocker, rear steering control

1шт.

2

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

- slotted pan head, brass, No. 6-32 x 3/16 inch

3шт.

3

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- pan head phillips, no. 6-32 x 1/2 inch

4шт.

4

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

5

A162042

PLATE

STRAP - retaining

1шт.

6

A160272

KNOB

- selector

1шт.

7

A39888

NUT

- spring, 3/8 - 32 inch

1шт.

8

A160501

SPRING

- selector knob

1шт.

9

A160502

ELECTRICAL WIRE

WIRE - stop

1шт.

10

A162250

KNOB

SWITCH - limiter

1шт.

11

178-850

SET SCREW,Hex Soc, #6-32 x 1/4"

SCREW - set, headless hex socket, No. 6-32 x 1/4 inch

2шт.

12

A177018

COVER

- protective, controller

1шт.

13

A166672

MOTOR, HYDROSTAT USE

CONTROL BOX AND HARNESS ASSEMBLY - rear steering

1шт.

14

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- pan head, No. 8-32 x 5/8 inch

5шт.

15

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

4шт.

16

129-16

NUT,#8-32

5шт.

17

182-45

SCREW,Sl Pan Hd, #6 - 32 x 7/16"

- pan head, No. 6-32 x 7/16 inch

4шт.

18

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

4шт.

19

129-15

NUT,#6-32

4шт.

20

A160043

HARNESS

- wire, control box to control valve

1шт.

129-16

NUT,#8-32

(Harness to valve) (Not Shown) #8-32

3шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - rear steering control (See Figure 5-140)

1шт.

22

A160042

HARNESS

- wire, rear axle sensor to control box

1шт.

23

A160041

HARNESS

- wire, front axle sensor to control box

1шт.

24

A161254

SLEEVE

- shrink, harness to sensor lugs (Set of 3)

2шт.

Use 345-92 Silicone Protector.

1шт.

25

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

- pan head, brass, no. 6-32 x 3/16 inch (Harness terminals)

6шт.

26

A167755

NUT

- terminal

6шт.

27

149686

CONDUIT - rear sensor wire harness

1шт.

28

A149687

CONDUIT

- front sensor wire harness

1шт.

29

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

CONNECTOR - straight, 3/4 PT x 3/4 inch-16

2шт.

30

A149530

FITTING

ELBOW - conduit to axle trunnion

2шт.

31

A149605

CONNECTOR, ELEC

CONNECTOR - straight, 3/4 inch PT x 5/8-11 inch

2шт.

32

A161375

SLEEVE

- shrink, harness to conduit (Set of 2)

1шт.

33

A149697

TRANSMITTER

SENSOR - rear axle left trunnion

1шт.

33

A185744R

REMAN-SENSOR

4894 CASE IH TRACTOR, SENSOR, rear axle left trunnion (1/83-12/87), Reman for New PN A149697

1шт.

33

A185744C

CORE-SENSOR

Return Number

1шт.

34

A149696

TRANSMITTER

SENSOR - front axle left trunnion

1шт.

34

A185743R

REMAN-SENSOR

SENSOR - front axle left trunnion

1шт.

34

A185743C

CORE-SENSOR

Return Number

1шт.

35

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

36

195-104

WASHER,3/8"

- 7/15 x 1 x 5/64 inch (11 x 25 x 2 mm)

4шт.

37

A160466

SQUARE BOLT,1/4" - 20, SST

- set, Serial Range: sensor-trunnion

2шт.

38

129-141

JAM NUT,Jam, 1/4"-20, G5

2шт.

39

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2 x 2-1/4 x 1/8 inch (51 x 57 x 3 mm)

2шт.

45

A149744

CLAMP

- rear wire conduit

1шт.

46

R38237

STRAP

- nylon, wire harness

1шт.

48

A167752

SWITCH

- rotary

1шт.

49

187-1506

SELF-TAP SCREW,0.164"-32 x 1/2"

SCREW - hex, no. 8-32 x 1/2 inch

7шт.

50

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

7шт.

51

49833

CLAMP

- harness retaining

1шт.
