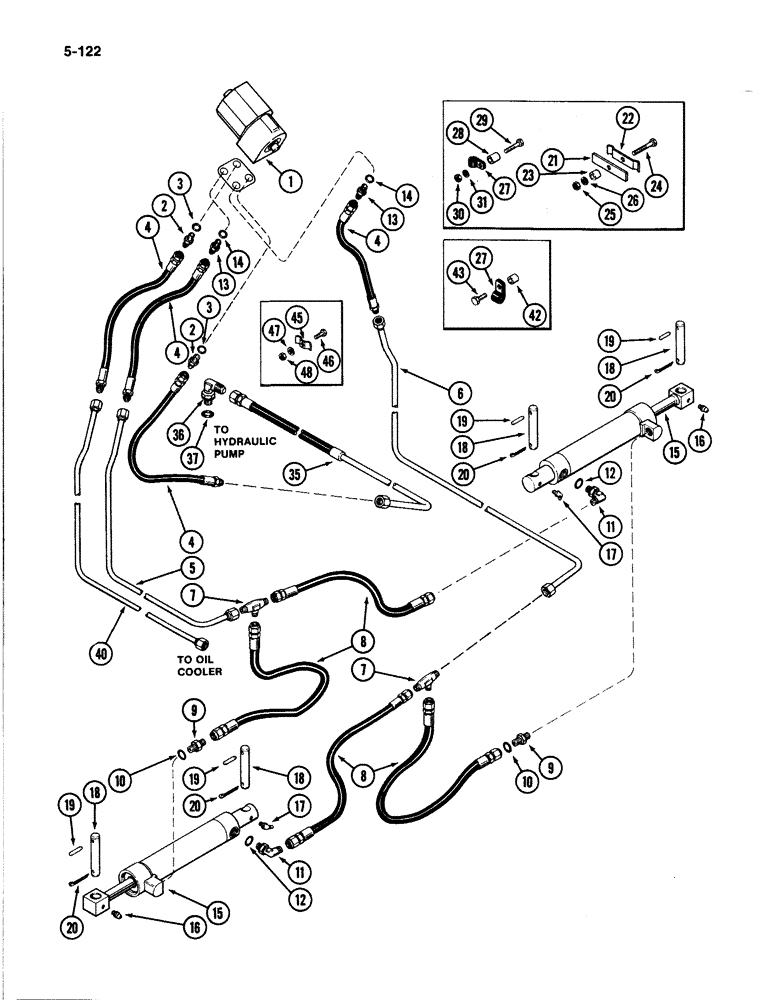

Запчасти Case IH 4894 (5-122) - FRONT STEERING HYDRAULICS (05) - STEERING

1

REF

INSTRUCTION

VALVE AND PUMP ASSEMBLY - front steering (See Figure 5-134)

1шт.

2

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

FITTING ASSEMBLY - valve hoses, 9/16-18 x 3/4-16 inch, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 9 x 2 mm)

1шт.

4

A162278

HOSE,0.38" ID x 20.00", SAE 100R2 per SAE J517

- Front steering valve port 0.38" ID x 20.00", SAE 100R2 per SAE J517

4шт.

5

A167005

TUBE

- right steering cylinder

1шт.

6

A167006

TUBE

- left steering cylinder

1шт.

7

218-594

TEE,3/4"-16, 37 Degree

CONNECTOR - cylinder hoses, 1/2 x 3/4-16 inch tube

2шт.

8

H364497

HOSE,0.38" ID x 22.00", SAE 100R2A

Steering Cylinderr 0.38" ID x 22.00", SAE 100R2A

4шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - cylinder hose, Incl. Ref 10

2шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - cylinder hose 90 degree, Includes: Ref. 12

2шт.

13

A149481

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - restrictor, Includes: Ref. 14

2шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - front steering (See Figure 5-136)

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

17

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - 45 degree, 1/4-28 inch

2шт.

18

A160382

PIN,25.4mm OD x 132.08mm L

- steering cylinders

4шт.

19

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

PIN - groove, 1/4 x 1-3/4 inch

4шт.

20

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

4шт.

21

A140431

SUPPORT

- tube clamp to side plate

1шт.

22

A140432

CLAMP

- double

1шт.

23

A140434

BUSHING

SPACER - clamp support, 3/4 inch wide (19 mm)

1шт.

24

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

49838

CLAMP

- tube, right and left side

4шт.

28

A140435

BUSHING

SPACER - clamp, right and left tubes 5/16 inch (8 mm) wide

4шт.

28

A140442

BUSHING

SPACER - clamp, left tube 1 inch (25 mm) wide

1шт.

29

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

29

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

35

A167008

HOSE

- front steering pressure

1шт.

36

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, Includes: Ref. 37

1шт.

40

A167004

TUBE ASSY.

TUBE - oil, Serial Range: cooler-valve

1шт.

42

A76093

BUSHING

SPACER - pressure hose, 1/2 inch (13 mm) wide

1шт.

43

187-1304

SELF-TAP SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

SCREW - hex head taptite, 3/8 x 3/4 inch

1шт.

45

NLS

NO LONGER SERVICED

- pressure hose

2шт.

46

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

47

129-20

NUT,#1-72

WASHER - lock, 5/16 inch

1шт.

48

9635082

NUT,5/16" - 18, Gr 5

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32 inch (13 x 17 x 2 mm)

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (16 x 21 x 2 mm)

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- /12 x 21/32 x 2/32 inch (13 x 17 x 2 mm)

1шт.
