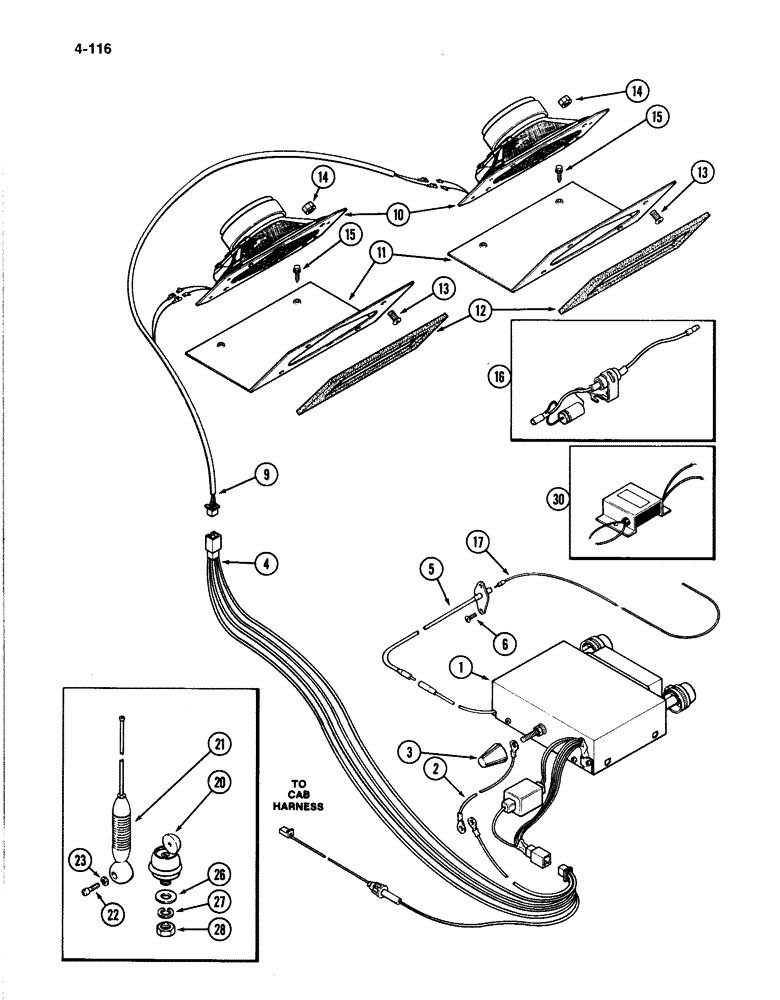

Запчасти Case IH 4894 (4-116) - HEADLINER MOUNTED RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS

1

A180796

RADIO

KIT - AM (Replaces A167180), Includes: Ref. 2 - 4

1шт.

1

A180797

RADIO

KIT - am-fm stereo (Replaces A167181), Includes: Ref. 2 - 4

1шт.

1

NLA

RADIO KIT - AM-FM with eight track tape player, Includes: Ref. 2 - 4

1шт.

1

A180798

RADIO

KIT - AM-FM with cassette tape player (Replaces A167183), Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

WIRE - radio ground (Order kit) (Reference No. A165970)

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - retaining (Order kit)

1шт.

4

NSS

NOT SOLD SEPARAT

HARNESS - radio wire (Order kit) (Reference No. A166846)

1шт.

5

F64799

CABLE

- antenna

1шт.

6

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - round head, no. 10-16 x 1/2 inch

2шт.

9

F66160

HARNESS

- speaker lead (Replaces F64727)

1шт.

10

F66124

HARNESS

SPEAKER - radio (Replaces F64847)

2шт.

11

F64667

PLATE

- speaker

2шт.

12

F64793

SEAL

GASKET - speaker sealing

2шт.

13

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- pan head, No. 10-24 x 3/4 inch

8шт.

14

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

8шт.

15

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self tapping, No. 10

4шт.

16

F64184

CAPACITOR

SUPPRESSOR - noise (Mounted on blower motor)

1шт.

17

F69182

CABLE - antenna

1шт.

A177631

ANTENNA

ASSEMBLY - whip, outer mounted, Includes: Ref. 20 - 23

1шт.

20

A177751

BASE - mounting, antenna

1шт.

21

A177752

ANTENNA

- whip

1шт.

22

177-99

SCREW,Sl Fil Hd, #10 - 32 x 5/8"

- slotted fillister head, No.-32 x 5/8 inch

1шт.

23

192-149

WASHER

- lock, 3/16 inch

1шт.

26

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 7/64 inch (13 x 27 x 3 mm)

1шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

28

129-125

NUT,1/2"-20, G5

1шт.

30

A180120

FILTER

- noise, radio

1шт.
