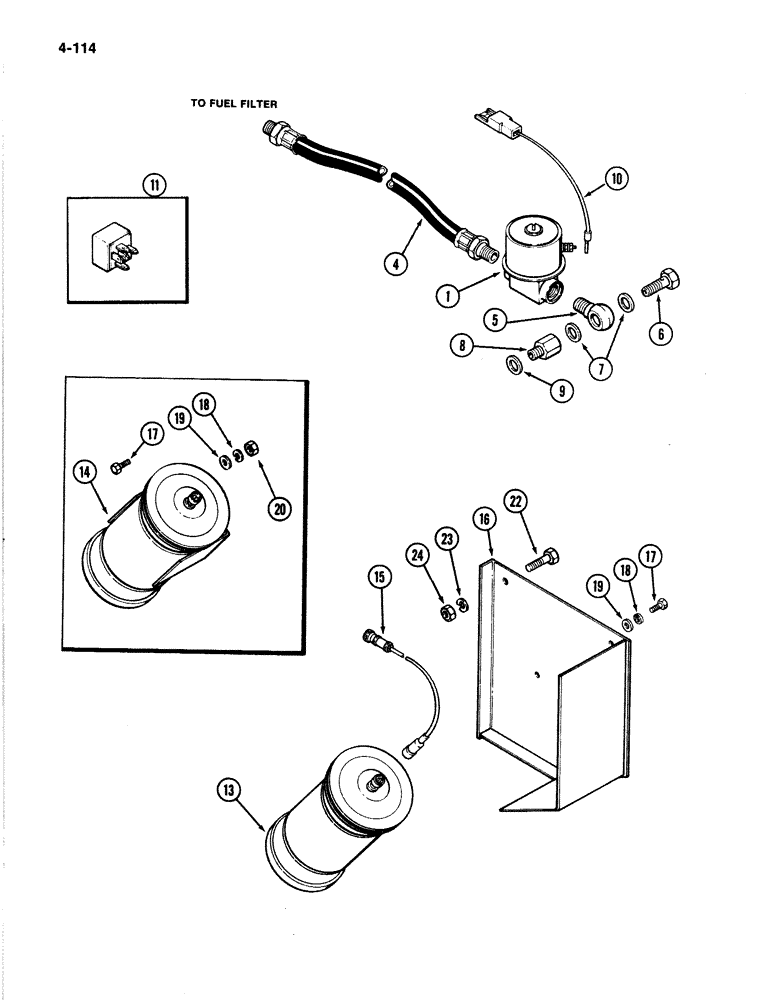

Запчасти Case IH 4894 (4-114) - ENGINE AUTOMATIC SHUTOFF (04) - ELECTRICAL SYSTEMS

A167618

SHUTOFF KIT - engine automatic (Machinery item), Includes: Ref. 1 - 11

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - shutoff (Reference No. A169746), Includes: Ref.

1шт.

1

A176720

VALVE

- shutoff

1шт.

4

A47921

HOSE

- fuel

1шт.

5

A47919

FITTING

- valve

1шт.

6

A47945

BOLT

CONNECTOR BOLT - hollow

1шт.

7

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

- fitting

2шт.

8

A47920

ADAPTER

ADAPTOR - extension

1шт.

9

A48231

WASHER

- adapter

1шт.

10

A167616

ELECTRICAL WIRE

WIRE - valve

1шт.

11

A147176

RELAY

- shutoff, 30 ampere

1шт.

A169281

ATTACHMENT - ground speed (Machinery item)

1шт.

13

1983292C1

SENSOR

- ground speed (Cast with tapped holes) (Replaces A177139), attachment

1шт.

13

BN95030AR

SENSOR

4894 CASE IH TRACTOR, ground speed (Cast with tapped holes) (1/83-12/87), Reman for New PN 1983292C1

1шт.

13

BN95030AC

CORE-SENSOR

Return Number

1шт.

14

NSS

NOT SOLD SEPARAT

SENSOR - ground speed (Steel) order A177139, attachment, Includes: Ref. 15 - 24

1шт.

15

A167862

HARNESS

- sensor, ground speed sensor attachment

1шт.

16

A177180

BRACKET

- sensor mounting (Replaces A169640), ground speed attachment

1шт.

17

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Ground speed sensor attachment Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Ground speed sensor attachment 3/8"

2шт.

19

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm), ground speed sensor attachment

4шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Ground speed sensor attachment 3/8"-16, G5

1шт.

22

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Ground speed sensor attachment Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Ground speed sensor attachment 1/2"

2шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

Ground speed sensor attachment 1/2"-13, G5

2шт.
