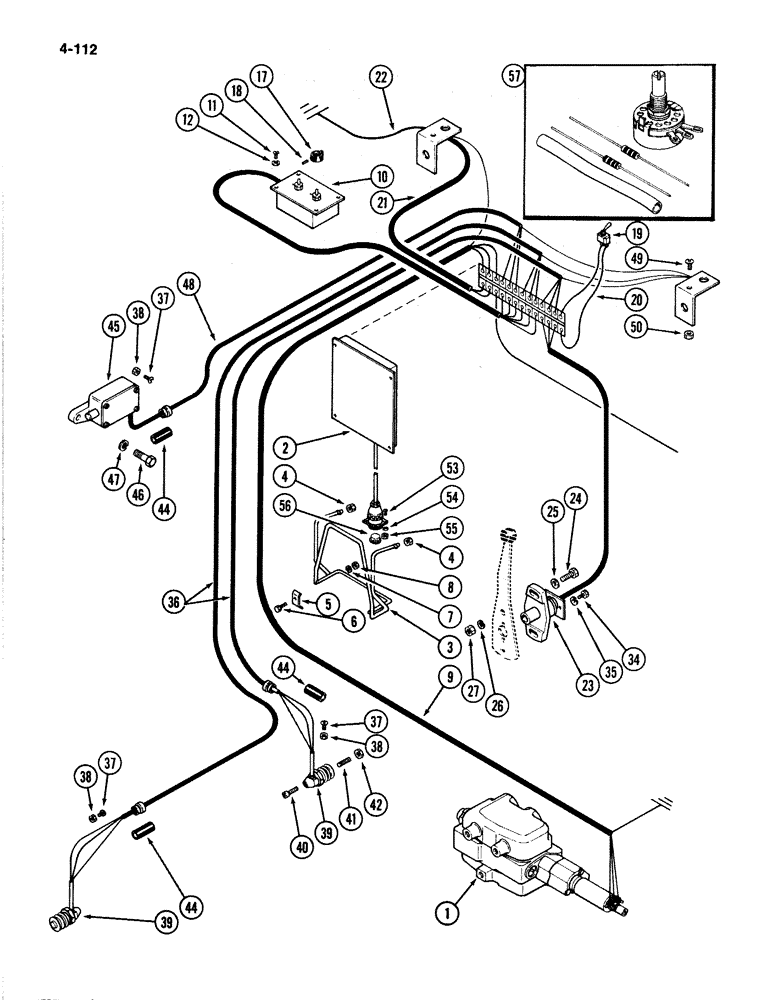

Запчасти Case IH 4894 (4-112) - ELECTRIC HITCH WIRING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, hitch (See Figure 8-340 and 8-338)

1шт.

2

A176429

BOX

BOX - control, hitch (New) (Replace A166673)

1шт.

2

AR176429

REMAN-ELECT MONITOR

REMAN-MONITOR BOX - control, hitch (Remanufactured)

1шт.

2

AC176429

CORE-MONITOR

RETURN NUMBER - control box (Use this number to return control box core for credit

1шт.

3

A162600

BRACKET

BRACKET - control box

1шт.

4

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self threading, 7/16 inch

2шт.

5

A60224

CLAMP

CLAMP -, Serial Range: bracket-console

1шт.

6

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT, Hex, 1/4"-20 x 1", G5

1шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

NUT, 1/4"-20, G5

1шт.

9

A161981

HARNESS

HARNESS ASSEMBLY - hitch valve

1шт.

10

A167145

BOX

CONTROL BOX - hitch

1шт.

11

182-545

SCREW,Slotted Pan Hd, #8-32 x 5/16"

SCREW - pan head, No. 8-32 x 5/16 inch

4шт.

12

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

4шт.

17

A169091

KNOB

KNOB - draft and sensing, Includes: Ref. 18

2шт.

18

178-870

SET SCREW,Hex Soc, #8-32 x 3/16"

SCREW - set, No. 6-32 x 3/16

2шт.

19

A162764

SWITCH

SWITCH - reset

1шт.

20

A165198

ELECTRICAL WIRE

WIRE WIRE - reset switch

2шт.

21

A162427

CABLE PULLING GRIP

WIRE - hitch valve ground

1шт.

22

A163035

ELECTRICAL WIRE

WIRE WIRE - hitch ground, Serial Range: console-frame

1шт.

23

A162359

TRANSMITTER

SENSOR - hitch lever

1шт.

24

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

25

195-104

WASHER,3/8"

WASHER - flat, 3/8 inch

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

34

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

3шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

36

A161975

HARNESS

HARNESS ASSEMBLY - draft arm

2шт.

37

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

SCREW - slotted pan head, brass, No. 6-32 x 3/16 inch

9шт.

38

A167755

NUT

NUT - hex, No. 6-32

9шт.

39

A165422

TRANSMITTER

SENSOR - draft arm

2шт.

40

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

SCREW - hex socket, 5/16 NC x 1-1/4 inch

2шт.

41

A166780

SET SCREW,3/8" - 24 x 47.80"

SCREW - hex socket, sensor adjust

2шт.

42

86585245

SPECIAL NUT,JAM, 5/8" - 18

NUT - hex jam, 3/8 inch NC

2шт.

A161254

SLEEVE

SLEEVE - shrink (Set of 3)

1шт.

44

A163365

SLEEVE

SLEEVE - shrink, sensor to harness (Order A161254)

9шт.

45

REF

INSTRUCTION

SENSOR - rockshaft (See figure 8-330)

1шт.

46

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

47

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

48

A161974

HARNESS

HARNESS ASSEMBLY - rockshaft sensor

1шт.

49

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

SCREW - pan head, No. 8.32 x 5/8 inch

2шт.

50

129-16

NUT,#8-32

NUT, #8-32

2шт.

53

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

SCREW - pan head phillips, No. 6-32 x 1/2 inch

2шт.

54

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

55

129-15

NUT,#6-32

NUT, #6-32

3шт.

56

353-409

PLUG,Dome, .812" hole, Nylon

PLUG - protective (Heyco type)

1шт.

57

A167596

KIT

Rotary Switch

2шт.
