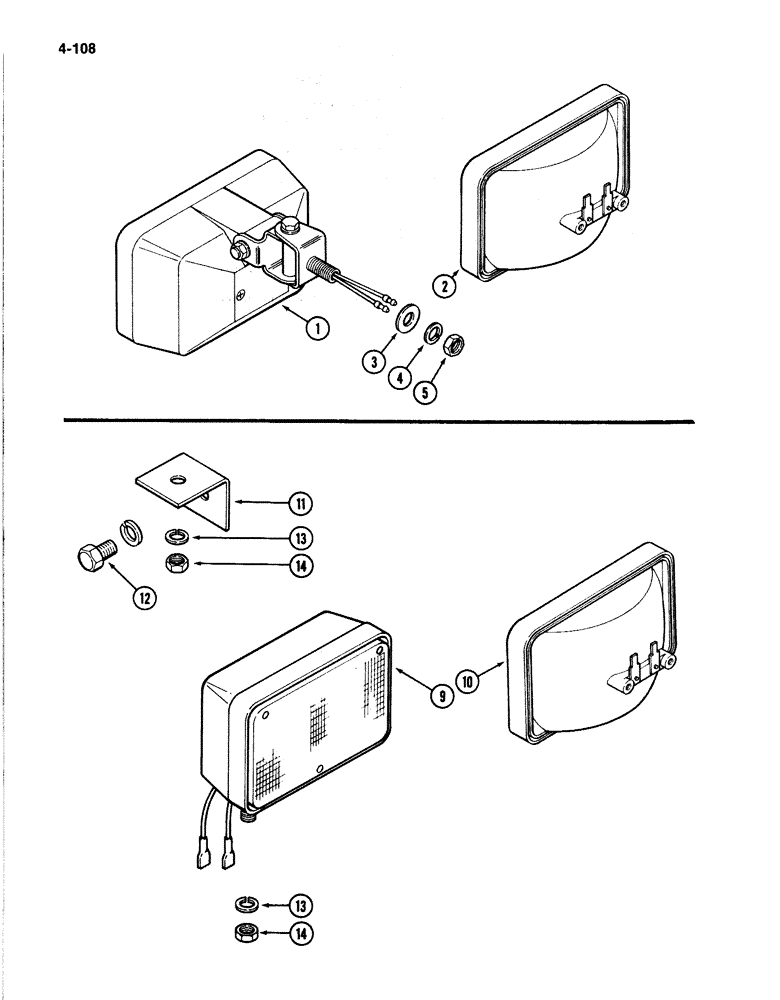

Запчасти Case IH 4894 (4-108) - FLOOD LAMP ATTACHMENTS UPPER REAR (04) - ELECTRICAL SYSTEMS

1

A165065

LAMP

ASSEMBLY - upper flood, cab (Order A177347), Includes: Ref. 2 - 5

1шт.

2

A48265

LAMP

BULB - seal beam (Includes screw)

1шт.

3

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32 inch (14 x 27 x 2 mm)

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

A166652

LAMP

ATTACHMENT - flood lamp, upper (Machinery item), front, Includes: Ref. 9 - 14

1шт.

9

A165347

LAMP

ASSEMBLY - flood, upper, Includes: Ref. 10

1шт.

10

A48265

LAMP

BULB - seal beam (Includes screws), upper front

1шт.

11

A166585

BRACKET

- mounting (Not used this application), upper front

1шт.

12

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Not used this application), Upper front Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Quanity of 1 used this application), upper front 1/2"

2шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

Upper front 1/2"-13, G5

1шт.
