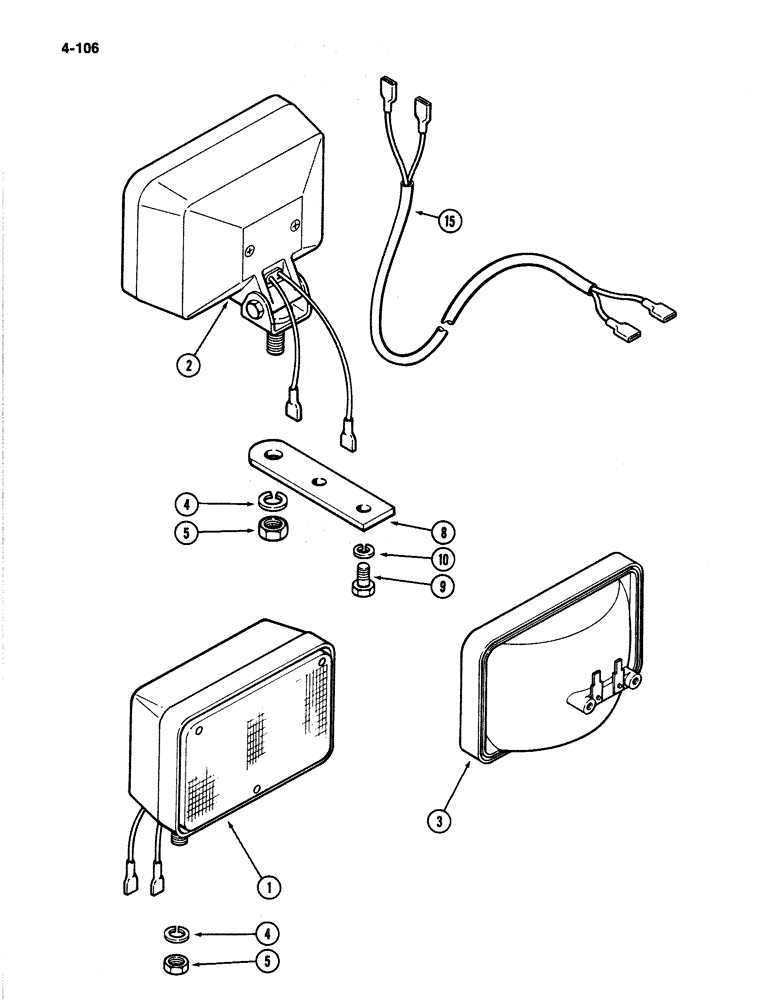

Запчасти Case IH 4894 (4-106) - FLOOD LAMP (04) - ELECTRICAL SYSTEMS

1

A165347

LAMP

ASSEMBLY - flood, front, Includes Ref. 3, (Order A177347)

2шт.

2

A165347

LAMP

ASSEMBLY - flood, rear, Includes: Ref. 3

2шт.

3

A48265

LAMP

- seal beam

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

8

A165598

BRACKET

- lamp mounting, rear

2шт.

9

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

BOLT - hex self tapping, 3/8 NC x 1 inch

4шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

A176391

HARNESS

ASSEMBLY - lower rear flood lamp

1шт.

Used to move flood lamp from cab bracket to fender.

1шт.
