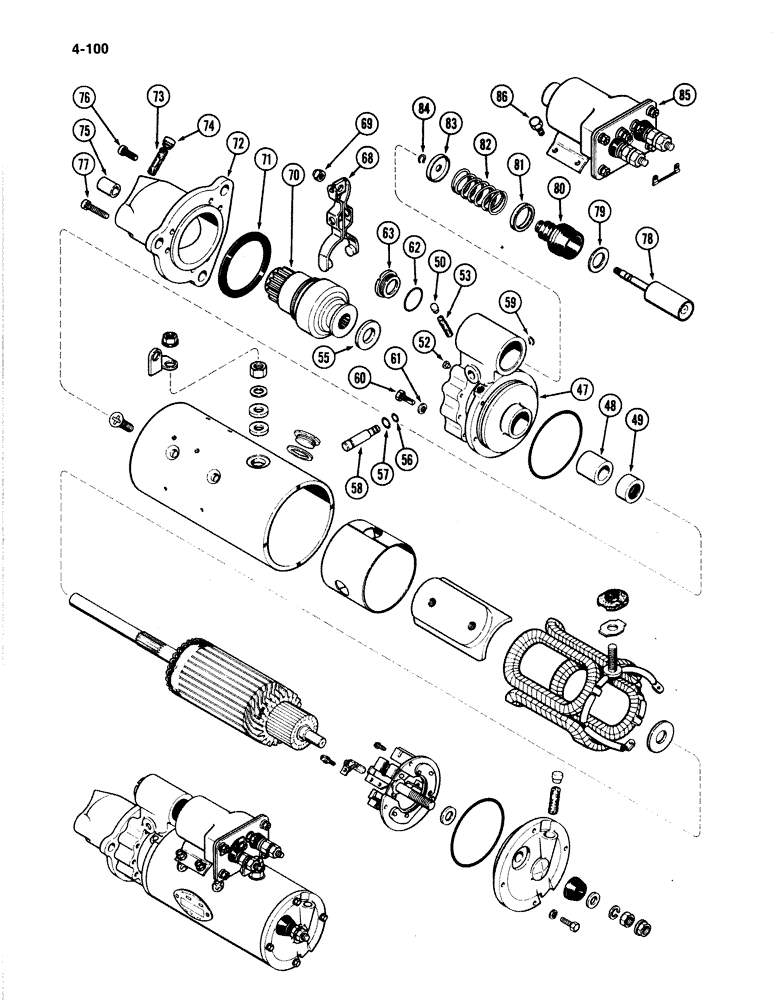

Запчасти Case IH 4894 (4-100) - A162578 STARTER (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A162578
ENGINE
STARTER ASSEMBLY - engine (Continued from Figure 4-98), Includes: Ref. 47 - 55
1шт.
47
A47935
HOUSING
ASSEMBLY - shift lever
1шт.
48
A47261
BUSHING
- shift lever housing
1шт.
49
R21582
OIL SEAL
- oil
1шт.
50
A47889
PLUG
- oil reservoir
1шт.
52
A47897
PLUG
- housing
1шт.
53
A47888
WICK
- oil
1шт.
55
R15145
DISC
WASHER - brake
1шт.
56
A47259
O-RING,0.244" ID x 0.391" OD
- stud, 15/64 inch (6 mm) ID
1шт.
57
A47258
O-RING,0.369" ID x 0.515" OD
- stud, 23/64 inch (9 mm) ID
1шт.
58
A42199
PIN
STUD - shift lever pivot
1шт.
59
G46146
SNAP RING,#37, Ext
Ring, Snap, , stud retaining #37, Ext
1шт.
60
114-1
BOLT,Hex, 1/4" - 28 x 1", Gr 5
Shift lever housing Hex, 1/4"-28 x 1", G5
5шт.
61
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
5шт.
62
A41924
GASKET
- plug
1шт.
63
R21587
PLUG
- shift lever housing
1шт.
68
D32547
LEVER
ASSEMBLY -shifter
1шт.
70
A47523
DRIVE
ASSEMBLY - starter, clutch
1шт.
71
R21562
GASKET
- drive end housing
1шт.
72
A47898
HOUSING
ASEMBLY - drive end, Includes: Ref. 73 - 75
1шт.
73
A47888
WICK
- oil
1шт.
74
A47889
PLUG
- oil reservoir
1шт.
75
A47257
BUSHING
- housing
1шт.
76
D32489
HEX SOC SCREW,5/16" - 18 x 0.86"
SCREW - drive end housing
1шт.
77
D32488
HEX SOC SCREW,5/16" - 18 x 1.50"
SCREW - drive end housing, special, 5/16 NC x 1-1/2 inch
5шт.
78
A42309
PLUNGER
- solenoid core
1шт.
79
A41922
WASHER
SEAT - protector
1шт.
80
A42308
BOOT
PROTECTOR - plunger
1шт.
81
A43380
BACK-UP RING
SEAT - spring, solenoid end
1шт.
82
A41242
SPRING
- plunger return
1шт.
83
A43419
SEAT
- spring, lever end
1шт.
84
G46146
SNAP RING,#37, Ext
Ring, Snap, , plunger retaining #37, Ext
1шт.
85
A47931
SOLENOID
ASSEMBLY - starter (Serviced as complete assembly only)
1шт.
Выбрано товаров: 34
