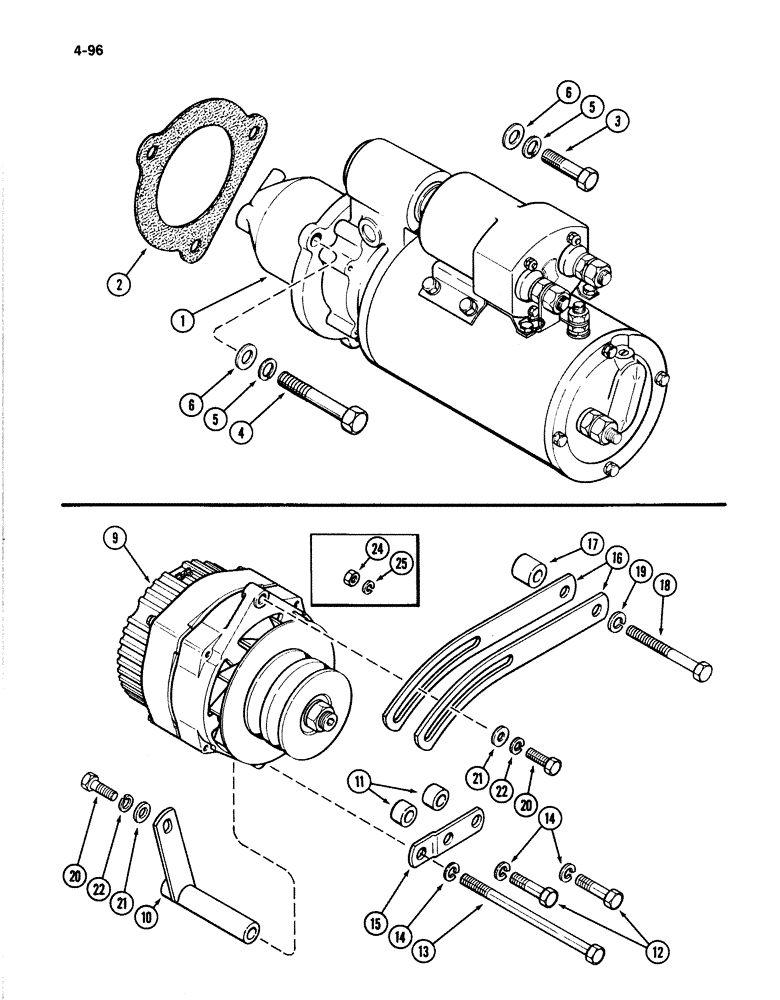

Запчасти Case IH 4894 (4-096) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-98)

1шт.

1

87297380

REMAN-STARTER

Remanufactured Starter; For N.A. only

1шт.

1

87297381

CORE-STARTER

Return number - For N.A. only

1шт.

2

A27933

GASKET

GASKET - starter mounting

2шт.

3

113-2432

BOLT,Locking, 1/2" - 13 x 2", Gr 5

BOLT - hex lock, 1/2 NC x 2 inch

2шт.

4

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

BOLT, Hex, 1/2"-13 x 3 1/4", G5

1шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

6

A75865

WASHER

WASHER - hardened

3шт.

9

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-102), mounting

1шт.

10

A169700

BRACKET

BRACKET - alternator mounting

1шт.

11

A169701

SPACER

SPACER - alternator pivot, mounting

2шт.

12

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, , Alternator mounting Hex, 3/8"-16 x 1 3/8", G5

2шт.

13

113-254

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

BOLT - hex, 3/8 NC x 6-1/2 inch, alternator mounting

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Alternator mounting 3/8"

3шт.

15

A140419

BRACKET

BRACKET - alternator support, mounting

1шт.

16

A166827

BRACKET

STRAP - adjusting, alternator mounting

2шт.

17

A169702

SPACER

SPACER - alternator mounting

1шт.

18

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

BOLT, , Alternator mounting Hex, M10 x 90, 8.8

1шт.

19

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, alternator mounting

1шт.

20

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

BOLT, , Alternator mounting Hex, M10 x 25, 8.8, Full Thd

2шт.

21

195-525

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm), alternator mounting

2шт.

22

192-407

LOCK WASHER,7/16"

alternator mounting 7/16"

1шт.

24

825-1106

NUT,Hex, M6, Cl 8

NUT - hex, M6 x 1 (Battery terminal), Alternator mounting

1шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Alternator mounting 1/4"

1шт.
