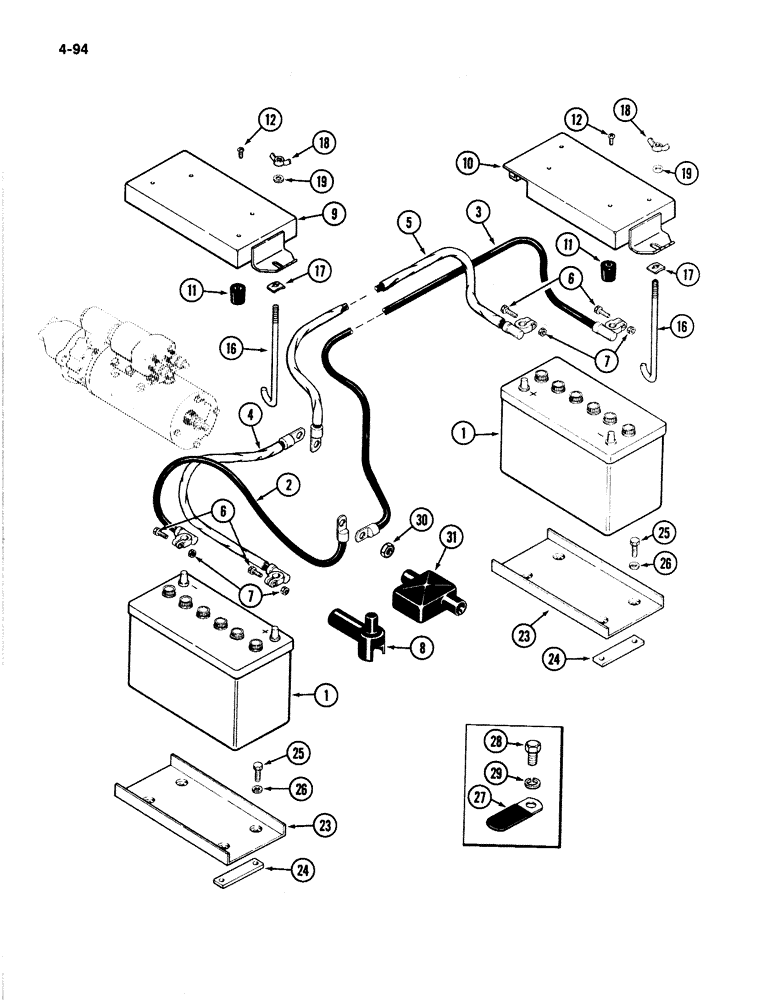

Запчасти Case IH 4894 (4-094) - BATTERIES, CABLES AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

A162334

DRY BATTERY

- 12 volt (JI case installed) (Order A38411)

2шт.

1

A38411

DRY BATTERY

(12 VOLT) DRY (SERVICE ONLY)

2шт.

2

A75818

CABLE

ASSEMBLY - right negative

1шт.

3

A166539

CABLE PULLING GRIP

CABLE ASSEMBLY - left negative

1шт.

4

A75820

CABLE

ASSEMBLY - right positive

1шт.

5

A75821

CABLE

ASSEMBLY - left positive

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- square head, 5/16 NC x 1-3/8 inch (Grade 2)

1шт.

7

129-737

NUT

- hex shoulder, 5/16 inch NC

4шт.

8

A153796

BOLT

BOOT - terminal, Serial Range: cable-starter

1шт.

9

A169482

COVER

- battery, right

1шт.

10

A169483

COVER

- battery, left

1шт.

11

A75847

FENDER

BUMPER - rubber, Serial Range: cover-battery

8шт.

12

175-454

SCREW,Phil Truss Hd, 1/4" - 20 x 3/8"

- phillips head, 1/4 NC x 3/8 inch

8шт.

16

A143936

BOLT,Hook, 5/16" - 18 x 10mm

BOLT - hook, 5/16 inch NC

4шт.

17

131-640

NUT

- tinnerman speed, 5/16 inch

4шт.

18

G49020

NUT

- wing, 51/6 inch NC

4шт.

19

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

4шт.

23

A75848

CARRIER

- right and left battery

2шт.

24

A148489

BUSHING

SPACER - carrier

4шт.

25

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

27

A137179

CLIP

- battery cables

2шт.

28

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

29

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

1шт.

30

131-1308

JAM NUT,Jam, 1/2"-13

NUT - hex lock, 1/2 inch NC

1шт.

31

A139372

CAP

BOOT - battery terminal

2шт.
