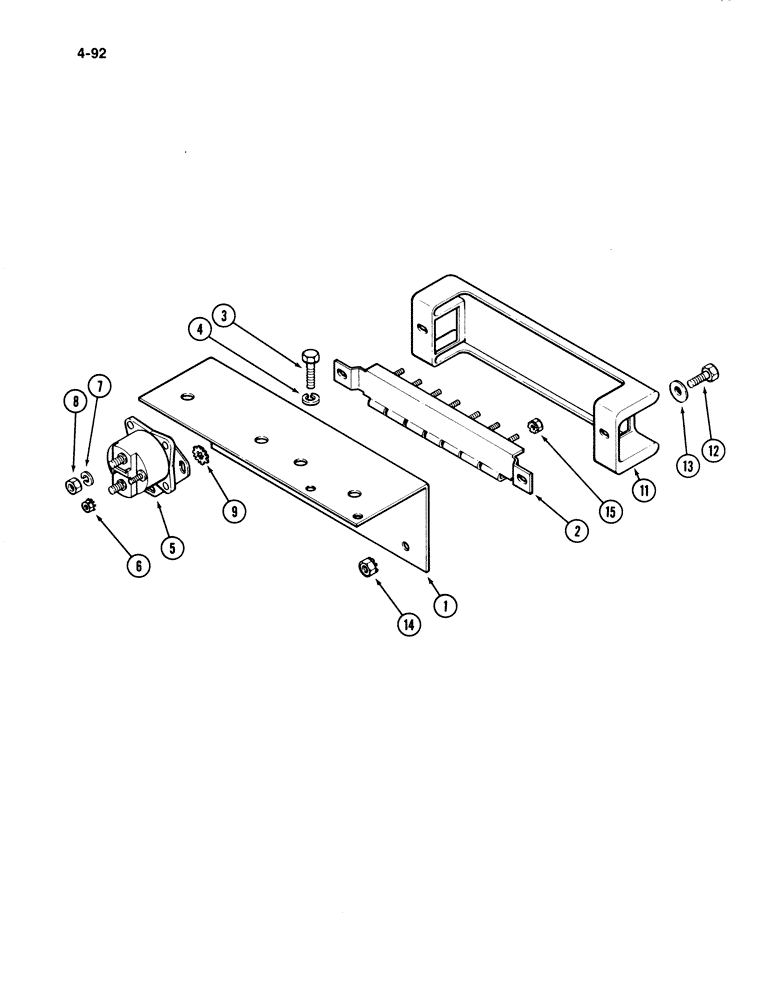

Запчасти Case IH 4894 (4-092) - SOLENOID AND CIRCUIT BREAKER MOUNTING (04) - ELECTRICAL SYSTEMS

1

A166340

BRACKET

- mounting

1шт.

2

A165723

BREAKER

- circuit, electrical system

1шт.

3

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, m4 x 30 mm

2шт.

4

892-110

WASHER - lock, 10 mm

2шт.

5

A39079

SOLENOID

- starter, intermediate

1шт.

6

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex esna lock, no. 10-32

1шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

2шт.

9

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal and external lock, 1/4 inch

2шт.

11

A169929

COVER ASSY

COVER - circuit breaker

1шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

13

195-124

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

14

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex keps, 1/4 inch NC

4шт.

15

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex lock, no. 10-32

6шт.
