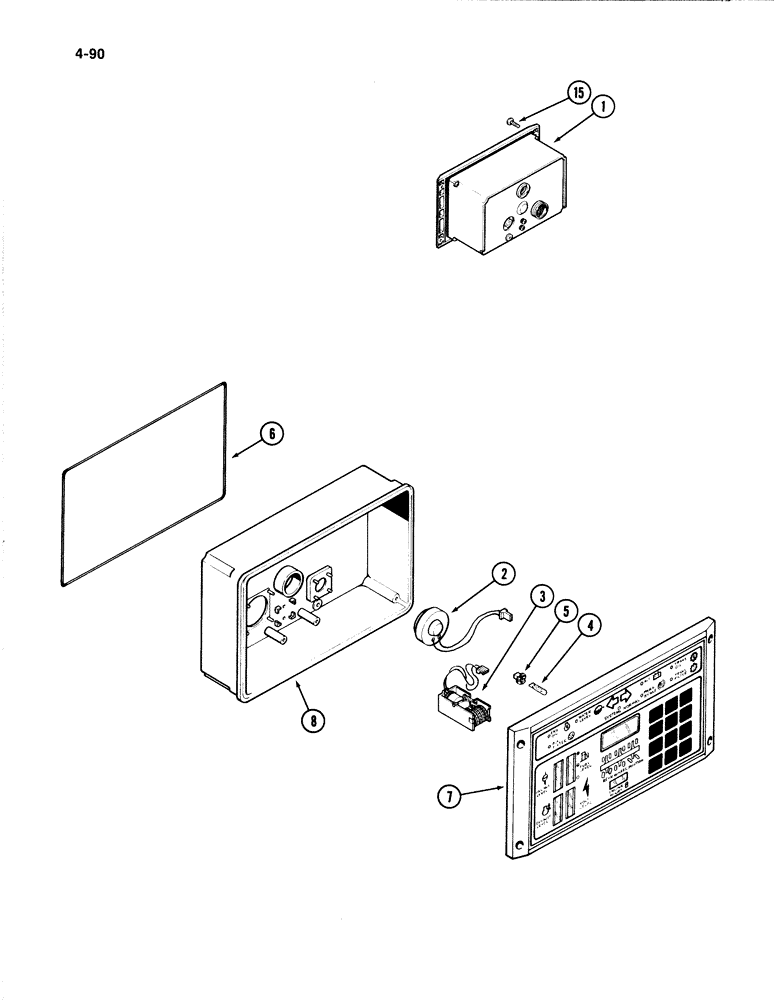

Запчасти Case IH 4894 (4-090) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

AR167765

INSTRUMENT CLUSTER

CLUSTER ASSEMBLY - remanufactured, Includes: Ref. 2 - 8

1шт.

1

AC167765

CORE

RETURN NUMBER - use this part number to return cluster core for credit, Includes: Ref. 2 - 8

1шт.

1

A167765

INSTRUMENT CLUSTER

CLUSTER ASSEMBLY - instrument (New), Includes: Ref. 2 - 8

1шт.

2

A48886

BUZZER

ALARM - instrument cluster

1шт.

3

A48887

GAUGE

COUNTER - instrument cluster

1шт.

4

A48888

BULB

- instrument cluster

5шт.

5

A48889

LAMP SOCKET

SOCKET - cluster bulb

5шт.

6

A48890

GASKET

- instrument cluster

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - face, cluster

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - cluster

1шт.

15

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

- mounting, phillips head, NO. 10-24 x 3/4 inch

4шт.

16

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.
