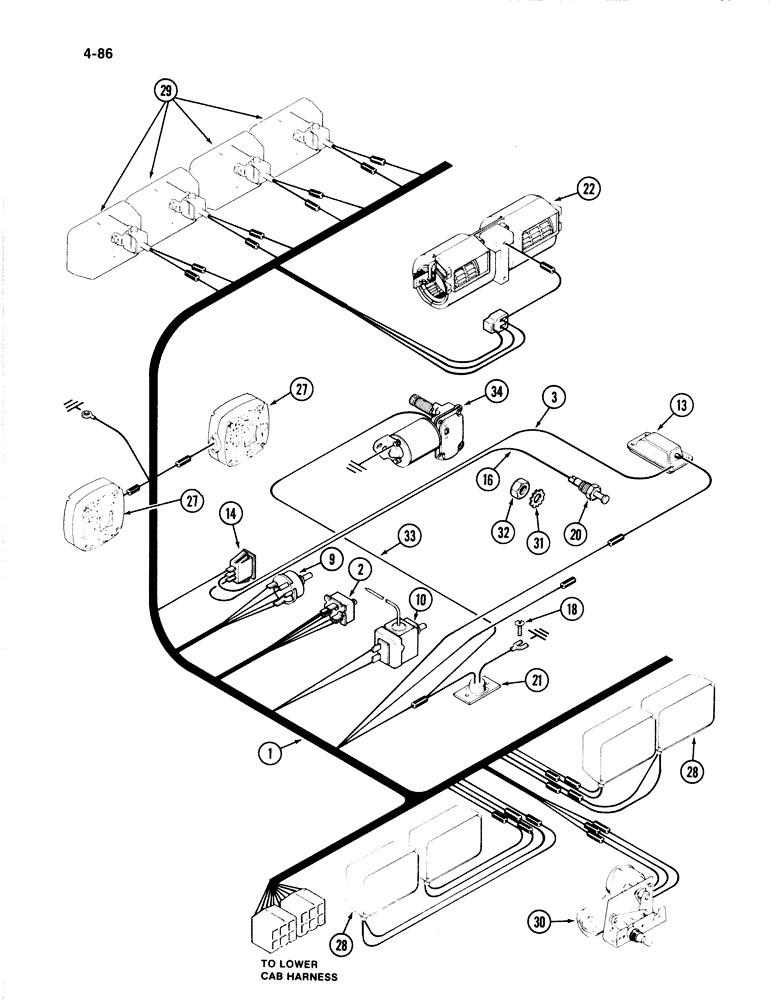

Запчасти Case IH 4894 (4-086) - CAB HEADLINER HARNESS (04) - ELECTRICAL SYSTEMS

1

F66064

HARNESS

ASSEMBLY - headliner wiring (Replaces A64800)

1шт.

2

A42622

SWITCH

- blower

1шт.

3

F64731

CABLE PULLING GRIP

WIRE - dome light to switch, brown

1шт.

9

F43359

SWITCH

- wiper

1шт.

10

F43186

SWITCH ASSY

SWITCH - air conditioning (Order 173646)

1шт.

13

F89772

LAMP

- dome

1шт.

14

F64733

IGNITION SWITCH

SWITCH - dome lamp

1шт.

16

F64127

ELECTRICAL WIRE

WIRE - switch to door switch, white, 70 inch (1778 mm)

1шт.

18

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - phillips pan head, self-tapping, No. 10-16 x 1/2 inch

1шт.

20

F63895

SWITCH

- lamp, door opening

1шт.

21

F98279

INTERIOR LIGHT

LAMP - console

1шт.

22

REF

INSTRUCTION

BLOWER ASSEMBLY (See Figure 9-416)

1шт.

27

REF

INSTRUCTION

LIGHT - flasher (See Figure 4-98)

2шт.

28

REF

INSTRUCTION

LAMP - front flood (See Figure 4-100)

1шт.

29

REF

INSTRUCTION

LAMP - rear flood (See Figure 4-100)

1шт.

30

REF

INSTRUCTION

WIPER ASSEMBLY - windshield (See Figure 9-426 or 9-428)

1шт.

31

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

32

9635082

NUT,5/16" - 18, Gr 5

1шт.

33

F64723

HARNESS

ASSEMBLY - rear window wiper

1шт.

34

REF

INSTRUCTION

WIPER ASSEMBLY - rear window (See Figure 9-430)

1шт.
