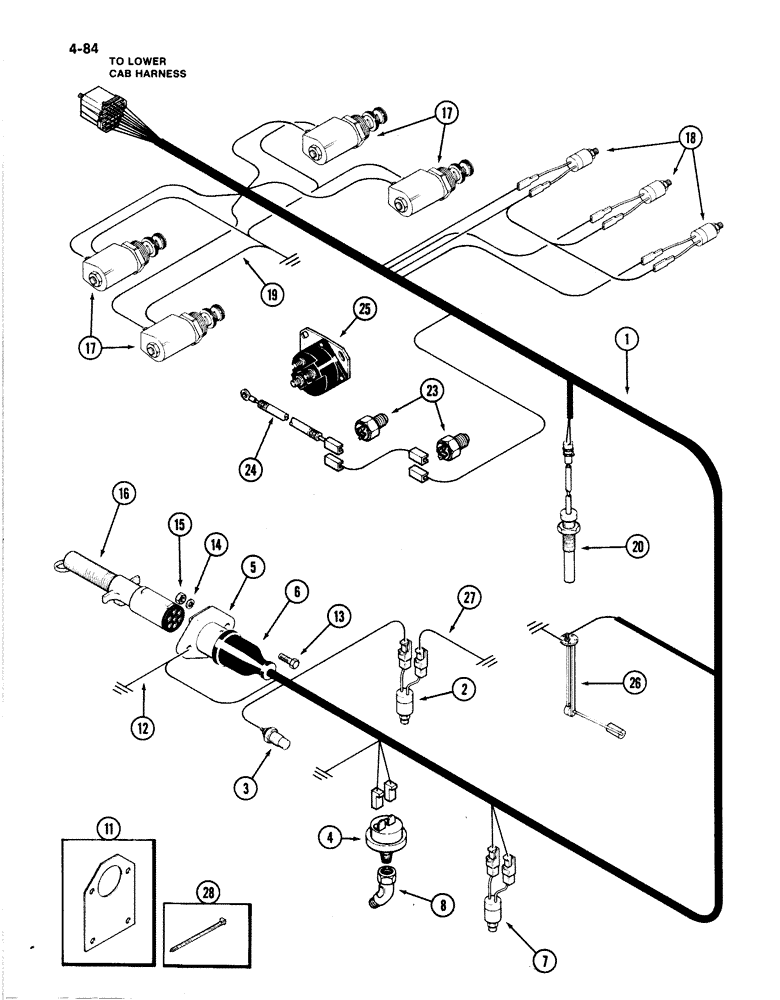

Запчасти Case IH 4894 (4-084) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

A165730

HARNESS

ASSEMBLY - transmission

1шт.

2

A162422

SWITCH

- transmission oil pressure

1шт.

3

A147186

SWITCH ASSY

SWITCH - transmission oil temperature

1шт.

4

A161461

SWITCH

- hydraulic filter pressure

1шт.

5

A145795

CONNECTOR, ELEC

CONNECTOR - auxiliary outlet

1шт.

6

A169283

BOOT

- auxiliary outlet

1шт.

7

A167895

SWITCH

- transmission oil filter pressure

1шт.

8

221-1401

ELBOW,45º, 1/8"-27, NPT

- switch, 45 degree

1шт.

11

A166636

SUPPORT ASSY.

BRACKET - auxiliary outlet mounting

1шт.

12

A163717

WIRE - auxiliary outlet ground

1шт.

13

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

15

9635082

NUT,5/16" - 18, Gr 5

4шт.

16

A139672

PLUG

CONNECTOR - 7 point

1шт.

17

A160899

VALVE

SOLENOID ASSEMBLY - electric shift (See Figure 6-152)

4шт.

18

A156555

SWITCH

- pressure, electric shift

3шт.

19

A157990

HARNESS

- solenoid ground

1шт.

20

A158683

TRANSMITTER

SENSOR - speed, mph

1шт.

23

A139078

SWITCH

- neutral start

2шт.

24

A176140

ELECTRICAL WIRE

WIRE - neutral start switch

1шт.

25

A39079

SOLENOID

- intermediate

1шт.

26

REF

INSTRUCTION

SENDER - fuel level (See Figure 3-76)

1шт.

27

A165731

ELECTRICAL WIRE

WIRE - transmission pressure

1шт.

28

R38237

STRAP

- nylon retaining

1шт.
