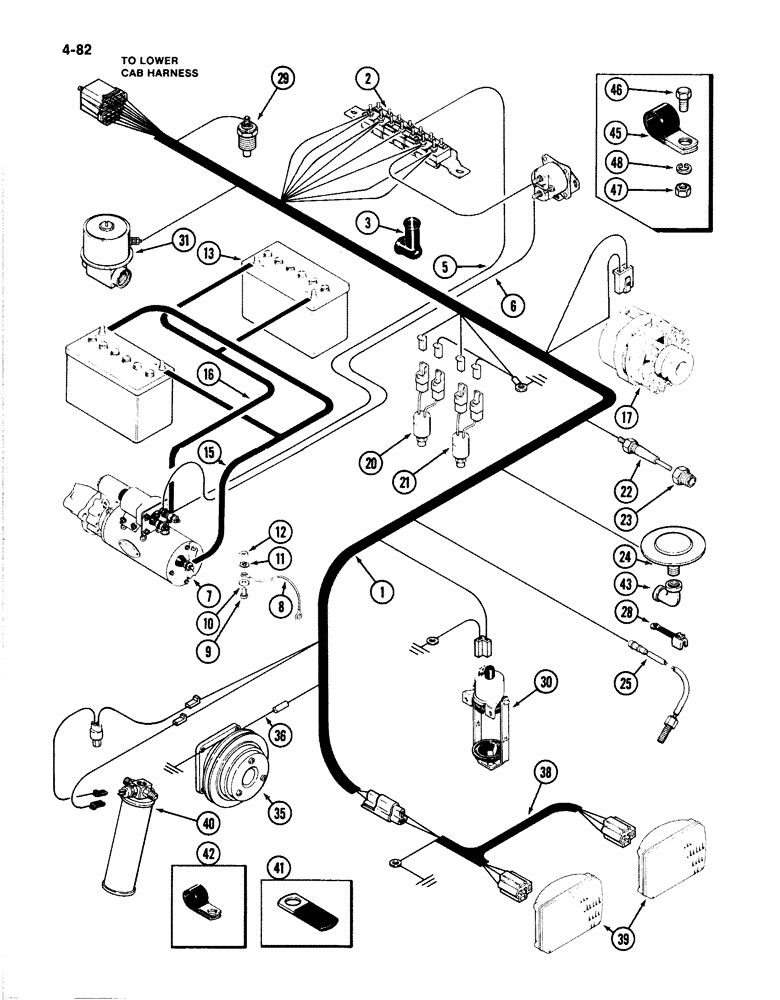

Запчасти Case IH 4894 (4-082) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

A164707

HARNESS

ASSEMBLY - engine

1шт.

2

A165723

BREAKER

ASSEMBLY - circuit

1шт.

3

A21753

CAP

BOOT - terminal, rubber

9шт.

4

A39079

SOLENOID

- intermediate, starter

1шт.

5

A166843

CABLE

- starter, Serial Range: solenoid-breaker

1шт.

6

A149781

CABLE

-, Serial Range: starter-solenoid

1шт.

7

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-98)

1шт.

8

A64704

STRAP

- ground, Serial Range: engine-frame

1шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

10

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

2шт.

11

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

13

REF

INSTRUCTION

BATTERY - 12 volt (See Figure 4-94)

2шт.

15

REF

INSTRUCTION

CABLE - battery, postive (See Figure 4-94)

2шт.

16

REF

INSTRUCTION

CABLE - battery, negative (See Figure 4-94)

2шт.

17

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-102)

1шт.

20

A177628

SWITCH

- engine oil pressure, 15 PSI (105 kPa) (See Figure 2-26) (Replaces A167996)

1шт.

Ref #20 - A177628 Switch, Engine Oil Pressure 8 psi

1шт.

21

A167644

PRESSURE SWITCH

SWITCH - engine oil pressure, 40 PSI (276 kPa) (See Figure 2-26)

1шт.

22

A145513

SENSOR

PROBE - sensing, coolant level

1шт.

23

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing 1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

24

A154782

SWITCH

- restriction indicator, air

1шт.

25

A176438

GAUGE

SENSOR - magnetic, engine rpm

1шт.

28

A169696

CLAMP

- sensor wire

1шт.

29

A176566

TRANSMITTER

SENDER - water temperature (Replaces D65446)

1шт.

30

REF

INSTRUCTION

SOLENOID ASSEMBLY - ether start (See Figure 2-12)

1шт.

31

REF

INSTRUCTION

SOLENOID - engine shut down (See Figure 4-114)

1шт.

35

REF

INSTRUCTION

CLUTCH - air compressor (See Figure 9-440)

1шт.

36

A169708

HARNESS

ASSEMBLY - air compressor

1шт.

38

A162317

HARNESS

ASSEMBLY - head lamp

1шт.

39

REF

INSTRUCTION

LAMP - head tractor (See Figure 104)

2шт.

40

REF

INSTRUCTION

RECEIVER DRIER - air conditioning (See Figure 9-436)

1шт.

41

A37179

CLIP

- retaining

1шт.

42

A149624

CLIP

- retaining

2шт.

43

221-1365

ELBOW,45 Degree, 1/8" NPT

- switch to air cleaner, 45 degree

1шт.

45

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- harness

2шт.

46

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

47

9635082

NUT,5/16" - 18, Gr 5

2шт.

48

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.
