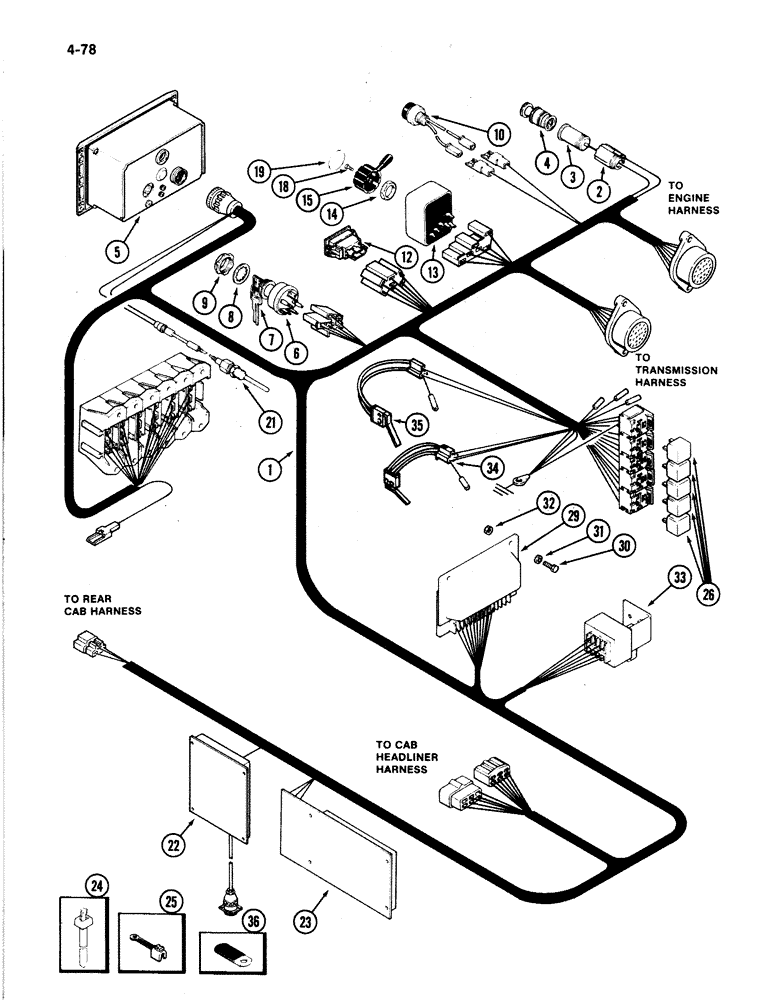

Запчасти Case IH 4894 (4-078) - LOWER CAB HARNESS (04) - ELECTRICAL SYSTEMS

1

A177750

HARNESS

ASSEMBLY - lower cab

1шт.

2

F63738

CIGAR LIGHTER

SHELL - lighter

1шт.

3

F63530

SOCKET/RECEPTACLE

SOCKET - cigar lighter

1шт.

4

A177447

LIGHTER, CIGARETTE

ELEMENT - cigar lighter, push in (Replaces A143340)

1шт.

5

REF

INSTRUCTION

CLUSTER ASSEMBLY - instrument (See Figure 4-90)

1шт.

6

L61053

IGNITION SWITCH

SWITCH - ignition

1шт.

7

A77313

SET OF 2 KEYS

KEY - ignition switch (Set of 2)

1шт.

8

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - internal shakeproof, 1 inch

1шт.

9

A77314

NUT

- lock, Serial Range: switch-panel

1шт.

10

A135520

SWITCH

- cold start

1шт.

12

A163009

SWITCH

- light

1шт.

13

A77184

SWITCH

- turn signal

1шт.

14

131-428

LOCK NUT,PAL, 3/4"-20

NUT - palnut, 3/4-20 inch

1шт.

15

A141736

KNOB

- turn signal switch

1шт.

18

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

- round head, no. 5-40 x 1/2 inch

1шт.

19

A167962

DISC

PLATE - knob insert

1шт.

21

A162936

TRANSMITTER

THERMOCOUPLE - exhaust

1шт.

22

REF

INSTRUCTION

BOX - hitch control (See Figure 4-112)

1шт.

23

REF

INSTRUCTION

BOX - rear steering control (See Figure 5-124)

1шт.

24

R38237

STRAP

- nylon retaining

1шт.

25

A169696

CLAMP

- retaining

1шт.

26

A147176

RELAY

- flood lamp

3шт.

29

A164734

BOARD

ASSEMBLY - relay (Order A164685)

1шт.

Ref #29 The sub for this relay board has 14 pins. Original could have 10 pins. Use the first 10 pins of the 14 pin board. M.U. TSG

1шт.

30

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

31

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

32

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

33

A180201

SWITCH

ASSEMBLY - range (Replaces A164974)

1шт.

34

A166333

SWITCH

- clutch, three wire

1шт.

35

A167041

SWITCH

- clutch, two wire

1шт.

36

A37179

CLIP

- harness

1шт.
