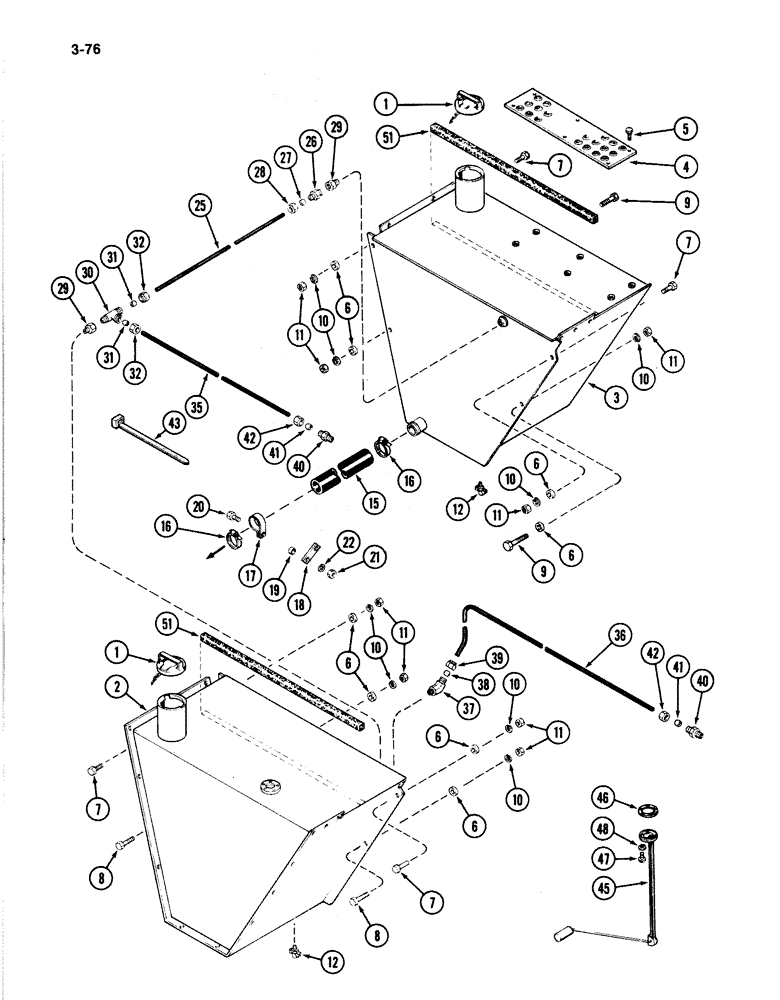

Запчасти Case IH 4894 (3-76) - FUEL TANKS 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

51200859

CAP

- filler, fuel tank, vented

2шт.

A162191

CAP

- non-vented, effective with S/N 8866672

1шт.

2

A144081

TANK

- fuel, right

1шт.

3

A164970

TANK

- fuel, left

1шт.

4

A165509

PLATE

- skid, step

1шт.

5

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

6шт.

6

A162131

BUSHING

SPACER - fuel tank

8шт.

7

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

3шт.

8

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

3шт.

9

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-1/2 inch

2шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

11

129-107

NUT,5/8"-11, G5

8шт.

12

217-81

VALVE

- drain, water trap, 1/8 inch PT

2шт.

15

A160192

HOSE,2.00" ID x 29.00", SAE 30R1 PER SAE J30 OR SAE 30R2 TYPE 2

2.00" ID x 29.00", SAE 30R1 per SAE J30 - Passage, Tank to Tank (Order S118389)

1шт.

16

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(46 mm to 70 mm) #36, 1.81/2.75 Type F Worm

2шт.

17

A8593

CLAMP

- hose support

1шт.

18

A160255

STRAP

- hose support

1шт.

19

A31263

BUSHING

SPACER - clamp

1шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

A63670

TUBE

- vent, tank to tank, 3/8 O.D. x 30 inch (10 x 762 mm) nylon (Order A67232)

1шт.

26

222-2626

FITTING,17/32"-24 x 1/4" NPT, Comp

CONNECTOR ASSEMBLY, Includes: Ref. 27 and 28

1шт.

27

222-5186

SLEEVE,3/8" Tube

- for 3/8 inch (9 mm) tube

1шт.

28

222-5181

NUT,9/16"-24

NUT - for 3/8 inch (9 mm) tube

1шт.

29

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- brass, 1/4 x 1/4 inch PT

2шт.

30

222-2676

TEE,17/32"-24 x 1/4" NPT Br

ASSEMBLY - overflow tube to pump, Includes: Ref. 31 and 32

1шт.

31

222-5186

SLEEVE,3/8" Tube

- for 3/8 inch (10 mm) tube

2шт.

32

222-5181

NUT,9/16"-24

NUT - for 3/8 inch (10 mm) tube

2шт.

35

A164699

TUBE - tank to pump, 1/4"

1шт.

35a

A67323

TUBE

3/8"

1шт.

36

A150838

TUBE

- tank to pump, 3/8 inch O.D. x 95 inch (10 x 2413 mm) nylon (Order A67323)

1шт.

37

222-2641

ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp

ASSEMBLY - 45 degree, tube to tank, Includes: Ref. 38 and 39

1шт.

38

222-5186

SLEEVE,3/8" Tube

- for 3/8 inch (10 mm) tube

1шт.

39

222-5181

NUT,9/16"-24

NUT - for 3/8 inch (10 mm) tube

1шт.

40

222-5101

CONNECTOR, ELEC,17/32"-24 x 1/4" NPT

CONNECTOR ASSEMBLY - straight, Includes: Ref. 41 and 42

2шт.

41

222-5186

SLEEVE,3/8" Tube

- for 3/8 inch (10 mm) tube

1шт.

42

222-5181

NUT,9/16"-24

NUT - for 3/8 inch (10 mm) tube

1шт.

43

R38237

STRAP

- nylon, fuel tubes

5шт.

45

A144084

UNIT

SENDER - fuel gauge

1шт.

46

A11822

GASKET

-, Serial Range: sender-tank

1шт.

47

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- round head, No. 10-32 x 7/16 inch

5шт.

48

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

51

A150492

FOAM

- sealing, tank to cab, 2 x 2 x 35-1/2 inch (51 x 51 x 212 mm)

2шт.

A164699

TUBE -, Serial Range: tank-pump

1шт.
