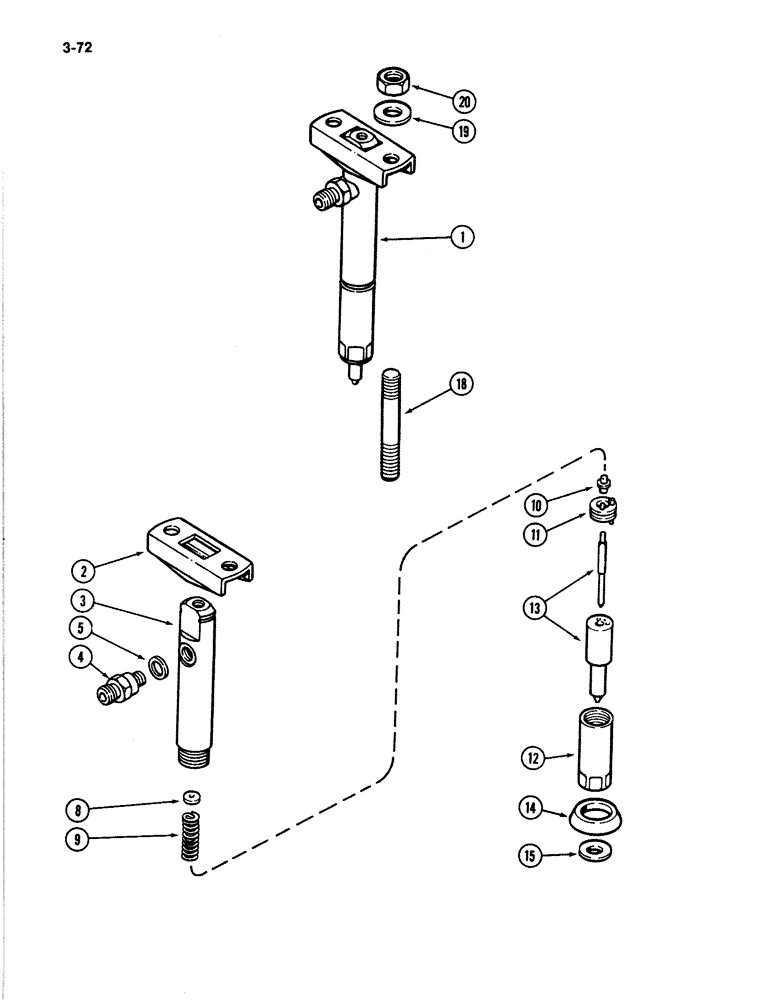

Запчасти Case IH 4894 (3-72) - FUEL INJECTION NOZZLE 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

A70856

INJECTOR ASSY.

NOZZLE ASSEMBLY - injector (Continued from Figure 3-70), Includes: Ref. 8 - 13, 16 - 20 and 1 - 8 on fig. 3-70

6шт.

A46569

HOLDER

ASSEMBLY - nozzle, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.50 mm (Set of 5) (Reference No. A70795)

1шт.

8

A70796

SHIM,1.52mm Thk

Nozzle (Set of 5) 1.52mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.54 mm (Set of 5) (Reference No. A70797)

1шт.

8

A70798

SHIM,1.56mm Thk

Nozzle (Set of 5) 1.56mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.58 mm (Set of 5) (Reference No. A70799)

1шт.

8

A70800

SHIM,1.60mm Thk

Nozzle (Set of 5) 1.60mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.62 mm (Set of 5) (Reference No. A70801)

1шт.

8

A70802

SHIM,1.64mm Thk

. Nozzle (Set of 5) 1.64mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.66 mm (Set of 5) (Reference No. A70803)

1шт.

8

A70804

SHIM,1.68mm Thk

Nozzle (Set of 5) 1.68mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.70 mm (Set of 5) (Reference No. A70805)

1шт.

8

A70806

SHIM,1.72mm Thk

Nozzle (Set of 5) 1.72mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.74 mm (Set of 5) (Reference No. A70807)

1шт.

8

A70808

SHIM,1.76mm Thk

Nozzle (Set of 5) 1.76mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.78 mm (Set of 5) (Reference No. A70809)

1шт.

8

A70810

SHIM,1.80mm Thk

Nozzle (Set of 5) 1.80mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.82 mm (Set of 5) (Reference No. A70811)

1шт.

8

A70812

SHIM,1.84mm Thk

Nozzle (Set of 5) 1.84mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.86 mm (Set of 5) (Reference No. A70813)

1шт.

8

A70814

SHIM,1.88mm Thk

Nozzle (Set of 5) 1.88mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.90 mm (Set of 5) (Reference No. A70815)

1шт.

8

A70816

SHIM,1.92mm Thk

Nozzle (Set of 5) 1.92mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.94 mm (Set of 5) (Reference No. A70817)

1шт.

8

A70818

SHIM,1.96mm Thk

Nozzle (Set of 5) 1.96mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.98 mm (Set of 5) (Reference No. A70819)

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - nozzle

1шт.

10

NSS

NOT SOLD SEPARAT

SPINDLE - nozzle

1шт.

11

NSS

NOT SOLD SEPARAT

SPACER - nozzle

1шт.

12

NSS

NOT SOLD SEPARAT

NUT - retaining

1шт.

13

A46570

NOZZLE CAP

NOZZLE - injector

1шт.

14

A46880

SEALING RING

WASHER - seal

1шт.

15

A46069

GASKET

- nozzle

1шт.

18

A46567

STUD

- nozzle holder

12шт.

19

195-525

WASHER,3/8", SAE

- fit, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

12шт.

20

A46073

NUT

- hex, nozzle stud

12шт.
