(3-70) - FUEL INJECTION NOZZLE 674 CUBIC INCH DIESEL ENGINE

Запчасти Case IH 4894 (3-70) - FUEL INJECTION NOZZLE 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

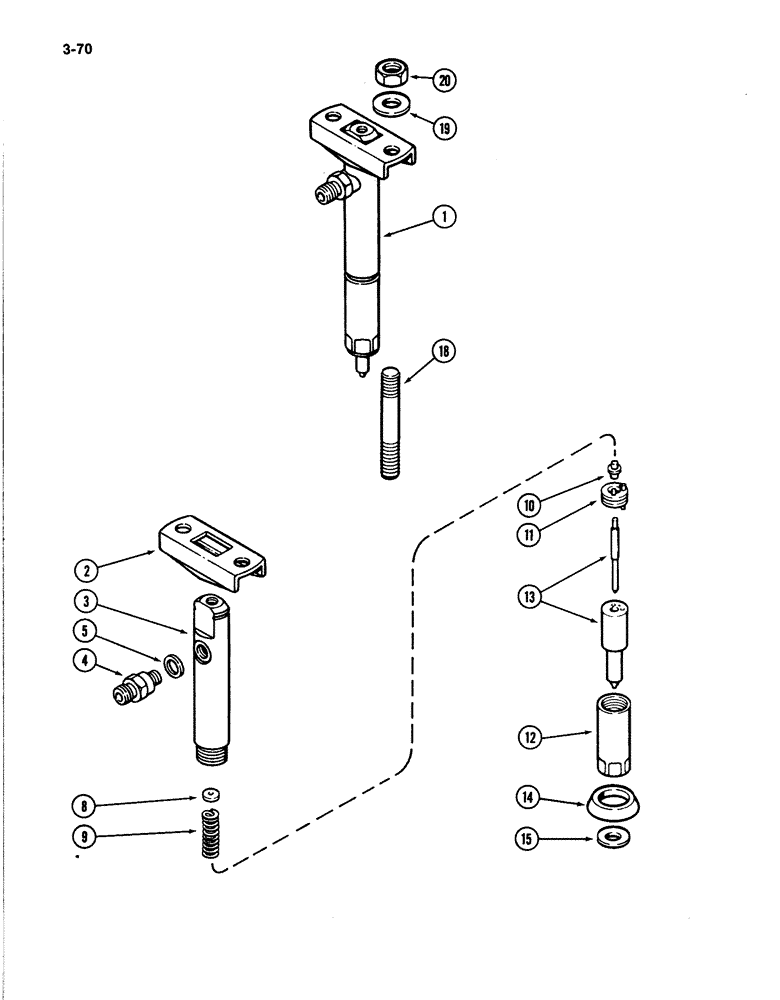

Схема запчастей Case IH 4894 - (3-70) - FUEL INJECTION NOZZLE 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM
14
11
4
10
20
12
9
13
3
19
5
15
1
18
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A70856

INJECTOR ASSY.

NOZZLE ASSEMBLY - injector, Includes: Ref. 2 - 8 and 8 - 2- 0n fig. 3-72

6шт.

Ref #1A - A46676 Injector used on newer tractors .

1шт.

2

A46571

YOKE

- nozzle holder

1шт.

3

A46569

HOLDER

ASSEMBLY - nozzle, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

ADAPTER - nozzle

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET - adapter

1шт.

8

A70770

SHIM,1.00mm Thk

Nozzle (Set of 5) 1.00mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.02 mm (Set of 5) (Reference No. A70771)

1шт.

8

A70772

SHIM,1.04mm Thk

Nozzle (Set of 5) 1.04mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.06 mm (Set of 5) (Reference No. A70773)

1шт.

8

A70774

SHIM,1.08mm Thk

Nozzle (Set of 5) 1.08mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.10 mm (Set of 5) (Reference No. A70775)

1шт.

8

A70776

SHIM,1.12mm Thk

Nozzle (Set of 5) 1.12mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.14 mm (Set of 5) (Reference No. A70777)

1шт.

8

A70778

SHIM,1.16mm Thk

Nozzle (Set of 5) 1.16mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.18 mm (Set of 5) (Reference No. A740779)

1шт.

8

A70780

SHIM,1.20mm Thk

Nozzle (Set of 5) 1.20mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.22 mm (Set of 5) (Reference No. A70781)

1шт.

8

A70782

SHIM,1.24mm Thk

Nozzle (Set of 5) 1.24mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.26 mm (Set of 5) (Reference No. A70783)

1шт.

8

A70784

SHIM,1.28mm Thk

Nozzle (Set of 5) 1.28mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.30 mm (Set of 5) (Reference No. A70785)

1шт.

8

A70786

SHIM,1.32mm Thk

. Nozzle (Set of 5) 1.32mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.34 mm (Set of 5) (Reference No. A70787)

1шт.

8

A70788

SHIM,1.36mm Thk

Nozzle (Set of 5) 1.36mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.38 mm (Set of 5) (Reference No. A70789)

1шт.

8

A70790

SHIM,1.40mm Thk

. Nozzle (Set of 5) 1.40mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.42 mm (Set of 5) (Reference No. A70791)

1шт.

8

A70792

SHIM,1.44mm Thk

Nozzle (Set of 5) 1.44mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.46 mm (Set of 5) (Reference No. A70793)

1шт.

8

A70794

SHIM,1.48mm Thk

Nozzle (Set of 5) 1.48mm Thk

1шт.
