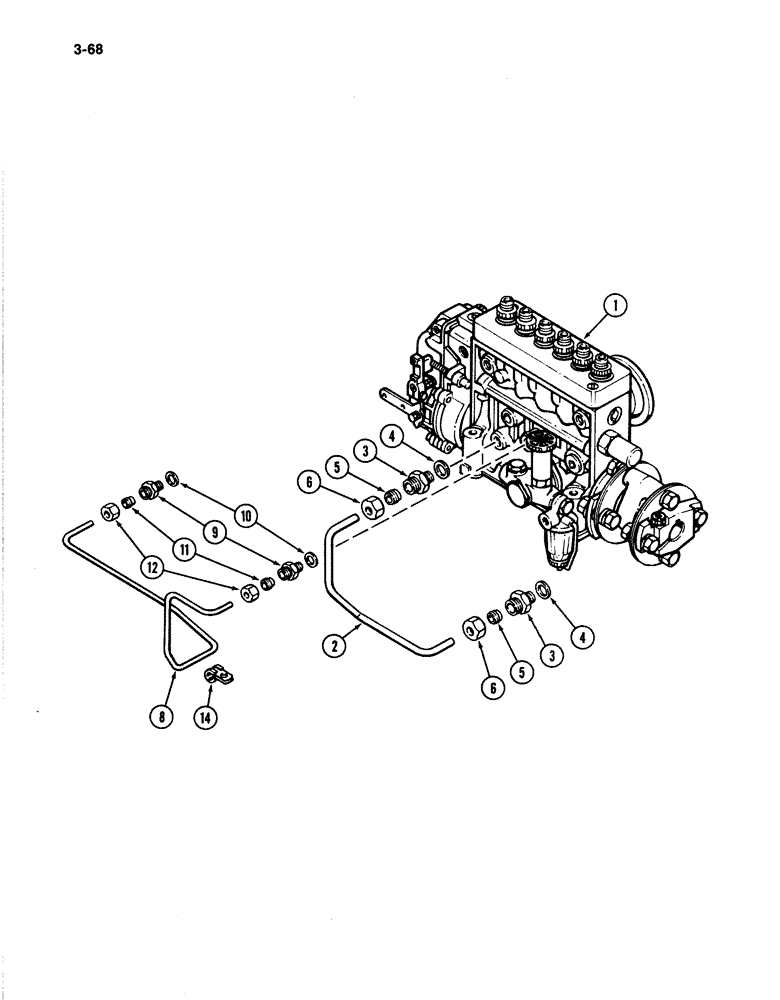

Запчасти Case IH 4894 (3-68) - INJECTION PUMP LUBRICATION TUBES 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-58)

1шт.

2

A46545

TUBE

- lubrication

1шт.

3

A46546

CONNECTOR, ELEC

CONNECTOR - tube, straight

2шт.

4

A46209

GASKET

- connector

2шт.

5

A46551

CLAMP

FERRULE - tube

2шт.

6

A46699

TUBE NUT

- hex coupling

2шт.

8

A70860

TUBE

- lubrication

1шт.

9

A46548

FITTING

CONNECTOR - tube, straight

2шт.

10

A45731

GASKET

- connector

2шт.

11

A46549

CLAMP

FERRULE - tube

2шт.

12

A46698

TUBE NUT

- hex coupling

2шт.

14

A46372

CLAMP

- tube

1шт.
