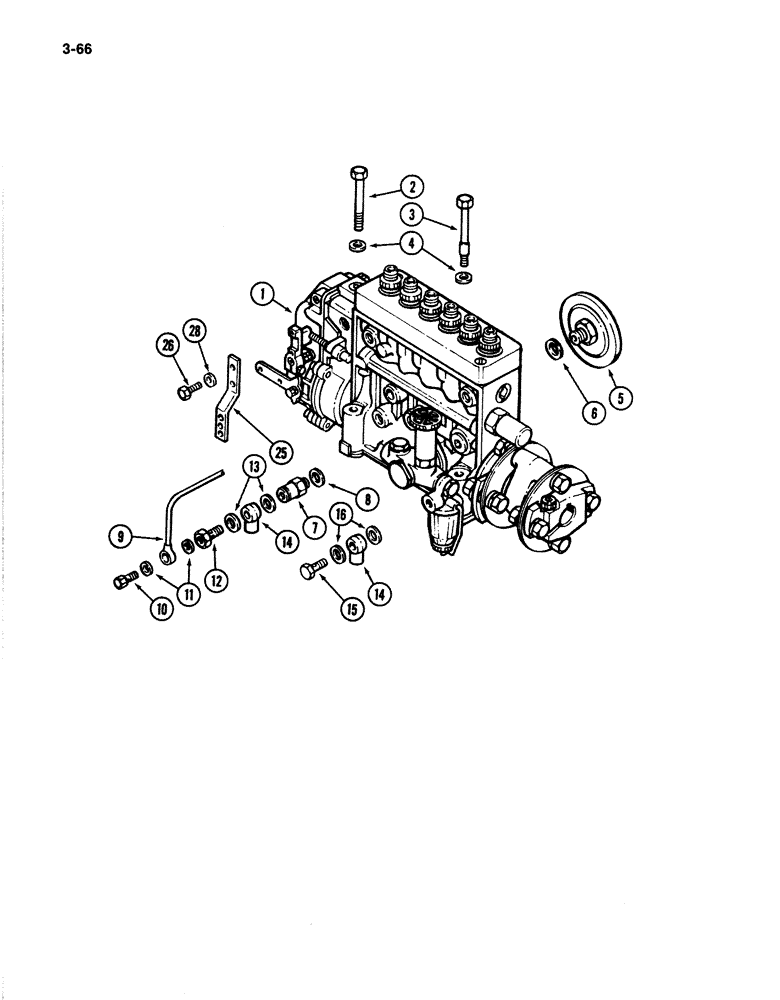

Запчасти Case IH 4894 (3-66) - FUEL INJECTION RETAINING PARTS 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

INJECTION PUMP ASSEMBLY - fuel (See Figure 3-58)

1шт.

2

814-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

(Pump mounting) Hex, M10 x 85, 8.8

2шт.

3

A46068

BOLT

- guide, pump mounting

2шт.

4

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

5

A46617

DIAPHRAGM

VIBRATOR - injection pump

1шт.

6

A46209

GASKET

-, Serial Range: diaphragm-pump

1шт.

7

A46564

VALVE

- pump leak-off

1шт.

8

A46209

GASKET

-, Serial Range: valve-pump

1шт.

9

A46585

TUBE ASSY.

TUBE - nozzle leak-off valve (See Figure 3-64)

1шт.

10

A46058

BANJO BOLT

-, Serial Range: tube-valve

2шт.

11

A46379

WASHER

GASKET - washer, tube bolt

2шт.

12

A46066

BANJO BOLT

- tank return, Serial Range: tube-valve

1шт.

13

A46209

GASKET

- washer, Serial Range: bolt-tube

2шт.

14

A46067

CONNECTOR, ELEC

CONNECTOR - banjo, tank lines

2шт.

15

A150818

BOLT,M14 x 1.5 x 1 mm

- fuel line from tank

1шт.

16

A46209

GASKET

- washer, Serial Range: bolt-connector

2шт.

25

A46043

LEVER

ARM - throttle lever

1шт.

26

A46074

BOLT

- hex, M6 x 22 mm

2шт.

28

195-515

WASHER,#12

- flat, 1/4 x 1/2 x 3/64 inch (6 x 13 x 1 mm) x 13 x 1 mm)

2шт.
