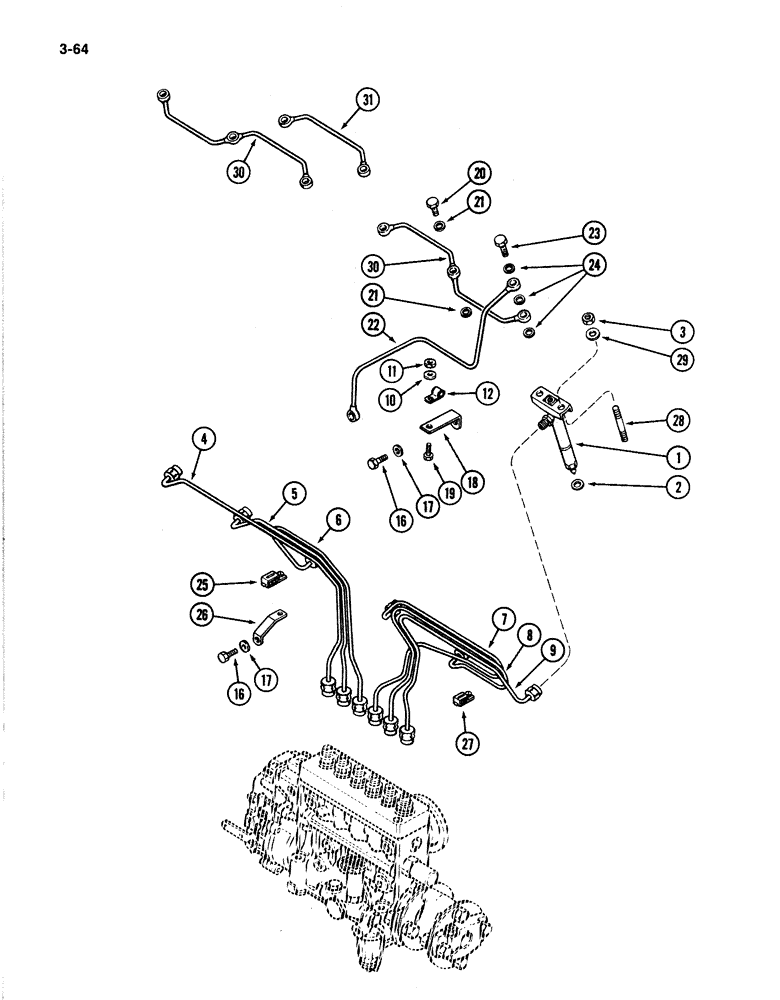

Запчасти Case IH 4894 (3-64) - FUEL INJECTION SYSTEM 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

NOZZLE - fuel injection (See figure 3-70)

6шт.

2

A46069

GASKET

- copper washer, Serial Range: nozzle-head

6шт.

3

A46073

NUT

- nozzle to head stud

12шт.

4

A46577

TUBE

- injection pump to No. 6 nozzle

1шт.

5

A46576

TUBE

- injection pump to No. 5 nozzle

1шт.

6

A46575

TUBE

- injection pump to No. 4 nozzle

1шт.

7

A46574

TUBE

- injection pump to No. 3 nozzle

1шт.

8

A46573

TUBE

- injection pump to No. 2 nozzle

1шт.

9

A46572

TUBE

- injection pump to No. 1 nozzle

1шт.

10

195-515

WASHER,#12

- flat, 1/4 x 1/2 x 3/64 inch (6 x 13 x 1 mm)

1шт.

11

825-1006

NUT,M6, Cl 8

- hex, M6

1шт.

12

A46704

CLIP

- tube

1шт.

16

814-8014

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, M8 x 14 mm

4шт.

17

195-521

WASHER,5/16", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

18

A70907

BRACKET

- tube clamp

1шт.

19

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

20

A46058

BANJO BOLT

- hollow, leak-off tube to nozzle, No. 2, 5 and 6

3шт.

21

A46379

WASHER

GASKET - washer, injector nozzle

6шт.

22

A46585

TUBE ASSY.

TUBE - nozzle leak-off valve

1шт.

23

A46060

BANJO BOLT

- hollow, tube to nozzle, No. 1, 3 and 4

3шт.

24

A46379

WASHER

GASKET - washer, Serial Range: tube-nozzle

9шт.

25

A70838

CLAMP

- tube retaining

5шт.

26

A70846

BRACKET

- tube retaining

1шт.

27

A70841

CLAMP

- tube retaining

1шт.

28

A46567

STUD

- nozzle holder

12шт.

29

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

12шт.

30

A46533

TUBE

- nozzle, leak off

2шт.

31

A46534

TUBE

- nozzle, leak off

1шт.
