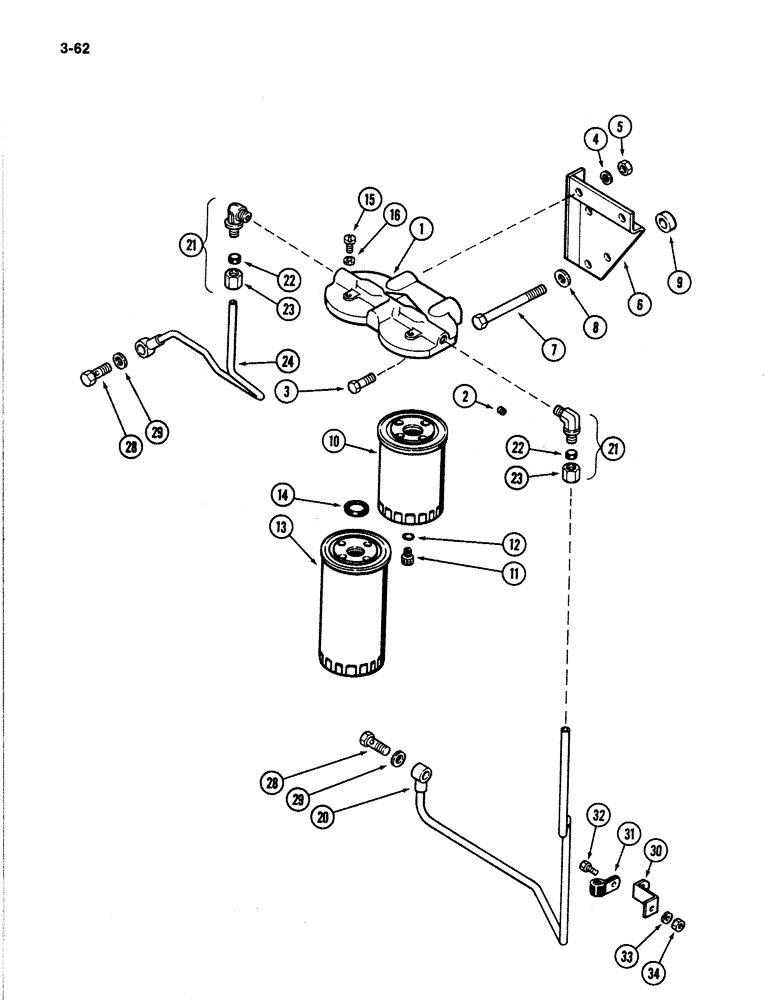

Запчасти Case IH 4894 (3-62) - FUEL FILTER SYSTEM 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

A155489

HEAD

ASSEMBLY - first and second stage filters

1шт.

2

221-1849

PLUG

- socket head, 1/8 inch PT

1шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

A46284

BRACKET

- filter head mounting

1шт.

7

A70889

BOLT

- hex, M12 x 140 mm

3шт.

8

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 27 x 2 mm)

3шт.

9

A46285

BUSHING

SPACER - mounting bracket

3шт.

A44068

FUEL FILTER

KIT - fuel filter replacement, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - first stage (Reference No. A58712), Includes: Ref. 11 and 12

1шт.

11

G49080

PLUG

- drain

1шт.

12

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

13

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - second stage (Reference No. A77220), Includes: Ref. 14

1шт.

14

NSS

NOT SOLD SEPARAT

GASKET - filter to head (Order A44068) (Reference No. A42315)

1шт.

Whenever filter is removed, gasket must also be removed and replaced with a new gasket

1шт.

15

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, filter head

2шт.

16

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

GASKET - bleed screw

2шт.

20

A164551

TUBE

- inlet to filter from pump

1шт.

21

222-4047

ELBOW

ASSEMBLY - 90 degree, Includes: Ref. 22 and 23

2шт.

22

222-104

SLEEVE,3/8" Tube

- for 3/8 inch tube (10 mm)

1шт.

23

222-114

NUT,5/8"-24

NUT - for 3/8 inch tube (10 mm)

1шт.

24

A164536

TUBE

- outlet, Serial Range: filter-pump

1шт.

28

A150818

BOLT,M14 x 1.5 x 1 mm

SCREW - tube to pump (Order A46063)

2шт.

29

A150819

GASKET

- screw and tube

4шт.

30

A46064

BRACKET

- tube, fuel

1шт.

31

A46226

CLAMP

CLIP - tube

1шт.

32

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

33

195-515

WASHER,#12

- flat, 1/4 x 1/2 x 3/64 inch (6 x 13 x 1 mm)

1шт.

34

825-1006

NUT,M6, Cl 8

- hex, M6

1шт.
