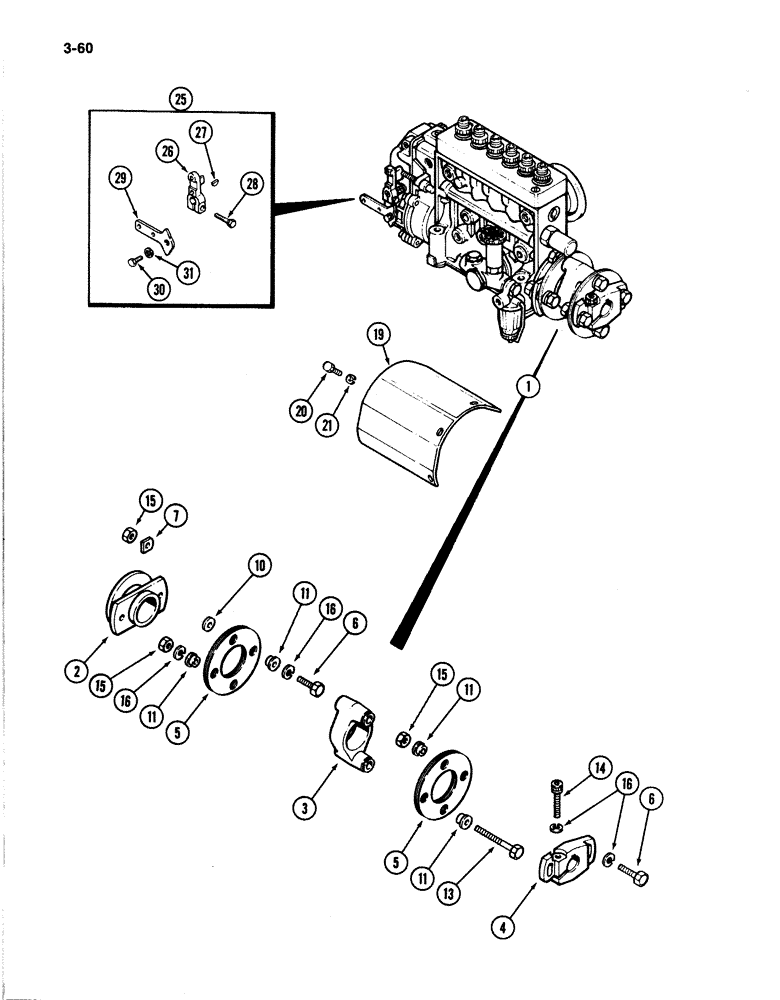

Запчасти Case IH 4894 (3-60) - FUEL INJECTION PUMP 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

A70681

PUMP, FUEL INJECTION

INJECTION PUMP - fuel (Continued from Figure 3-58), Includes: Ref. 1 - 21

1шт.

1

A70897

COUPLING

ASSEMBLY - pump drive, Includes: Ref. 2 - 16

1шт.

2

A46131

COUPLING, BREAK AWAY

COUPLING - half, pump shaft

1шт.

3

A46132

HOUSING

DRIVER - coupling

1шт.

4

A70898

COUPLING

- half, drive shaft

1шт.

5

A46134

DISC

- coupling

8шт.

6

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

7

A46135

PLATE

- washer

2шт.

10

A46140

WASHER

- flat

2шт.

11

A46136

BUSHING

- flanged

8шт.

13

813-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

- driver, hex, M10 x 85 mm

2шт.

14

864-10055

HEX SOC SCREW,M10 x 55mm, Cl 8.8

BOLT - socket head, M10 x 55 mm

1шт.

15

A46138

NUT

- coupling

6шт.

16

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

7шт.

19

A70707

COVER

- drive coupling, injection pump

1шт.

20

814-8014

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, M8 x 14 mm

3шт.

21

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

3шт.

25

NSS

NOT SOLD SEPARAT

GOVERNOR ASSEMBLY - pump (Reference No. A70901)

1шт.

26

A70893

ARM

- throttle, Includes: Ref. 26 - 31

1шт.

27

A70902

KEY

- throttle arm

1шт.

28

814-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, M6 x 20 mm

1шт.

29

A70899

LEVER

- shut off

1шт.

30

A70900

BOLT (MACHINE)

BOLT - lever

1шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.
