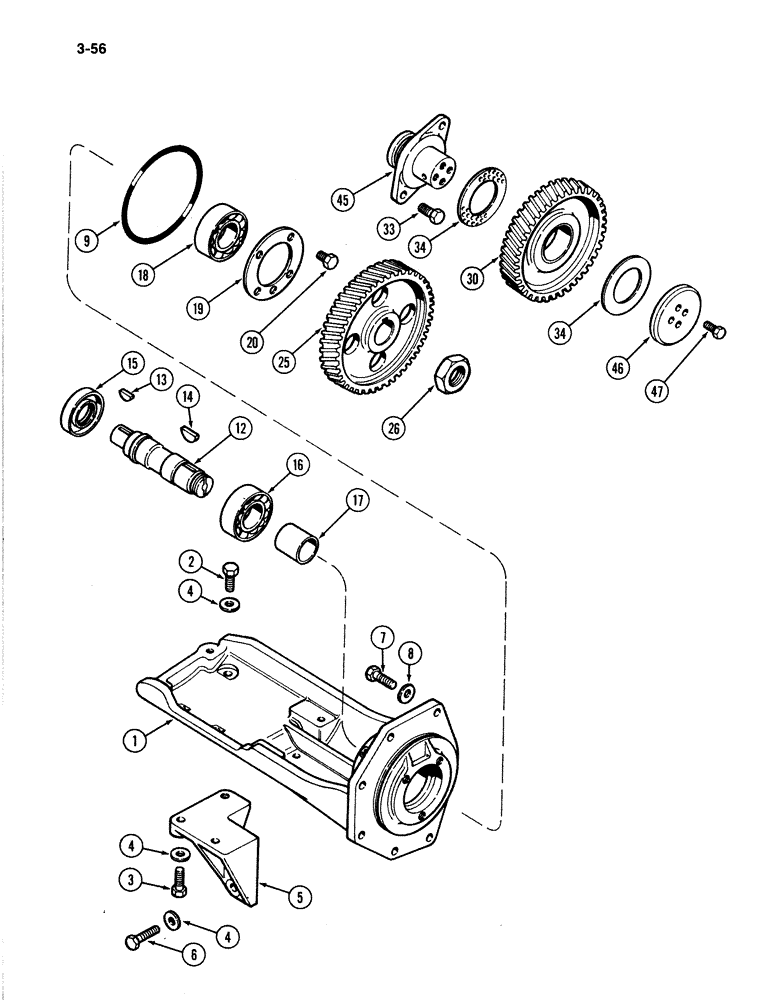

Запчасти Case IH 4894 (3-56) - INJECTION PUMP DRIVE 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

A46606

BRACKET

- fuel injection pump

1шт.

2

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

3

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

4

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

5шт.

5

A46194

SUPPORT

- bracket

1шт.

6

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, M10 x 40 mm

2шт.

7

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

8

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

6шт.

9

A46193

O-RING,134.5 mm ID x 140.5 mm OD

- bracket to timing gear cover

1шт.

12

A45939

SHAFT

- drive, injection pump

1шт.

13

NLS

NO LONGER SERVICED

-, Serial Range: coupling-shaft

1шт.

14

A46183

KEY

-, Serial Range: gear-shaft

1шт.

15

A45946

SEAL

- oil, pump drive shaft

1шт.

16

A45941

BALL BEARING

BEARING - inner, pump drive shaft

1шт.

17

A45943

BUSHING

SPACER - bearing, drive shaft

1шт.

18

A45940

BALL BEARING

BEARING - outer, pump drive shaft

1шт.

19

A45942

WASHER

- bearing retainer

1шт.

20

814-8014

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, M8 x 14 mm

3шт.

25

A45938

GEAR

- pump drive

1шт.

26

A70748

NUT

- hex, M30

1шт.

30

A45931

GEAR

- intermediate (Includes bushing)

1шт.

33

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

34

A45933

WASHER

- thurst

2шт.

45

A46614

SHAFT

AXLE - stud, intermediate gear

1шт.

46

A46615

WASHER

- retainer, intermediate gear

1шт.

47

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

retainer washer Hex, M8 x 20, 8.8

4шт.
