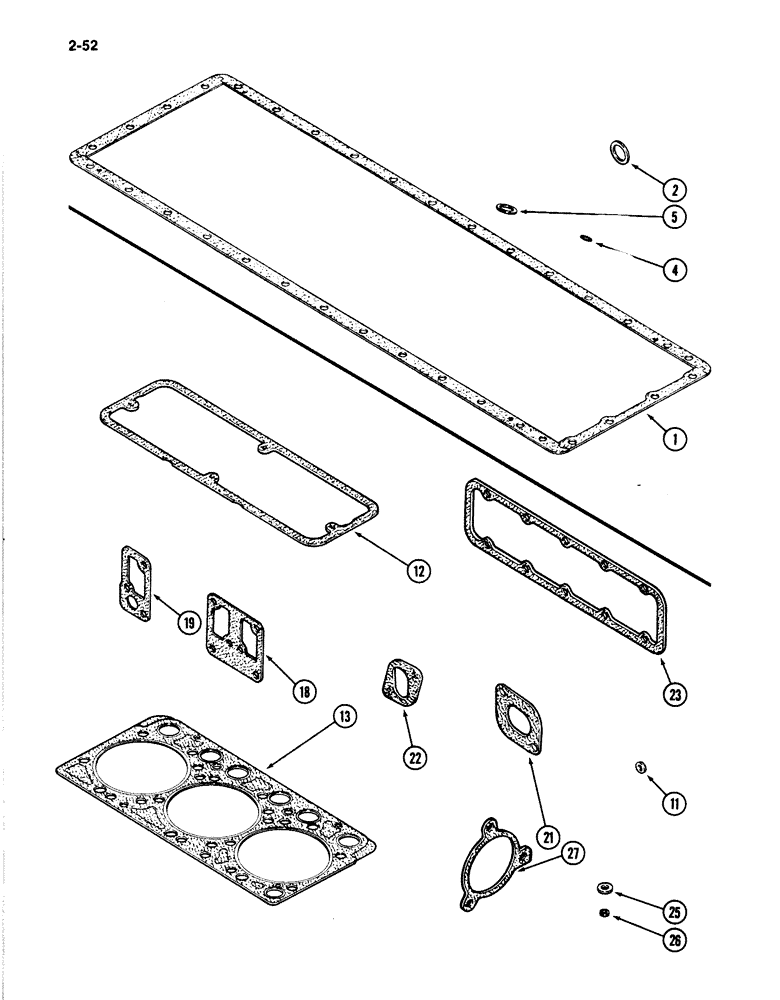

Запчасти Case IH 4894 (2-52) - GASKET KIT 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A46143

GASKET

KIT - oil pan (Order components), Includes: Ref. 1 - 5

1шт.

1

A45860

GASKET

- oil pan

1шт.

2

A45885

GASKET

WASHER - oil pan plug

1шт.

A45887

GASKET

- cover (Not Shown)

1шт.

4

A46167

O-RING,9 mm ID x 15 mm OD

- dipstick

1шт.

5

A46313

GASKET

- dipstick tube

1шт.

A166158

GASKET KIT

- cylinder head, overhaul, Includes: Ref. 11 - 27 and seal, P/N A46880

1шт.

11

A45731

GASKET

WASHER - lube tubes, for cylinder head overhaul

6шт.

12

A45742

GASKET

- valve cover to head, for cylinder head overhaul

1шт.

13

A166154

GASKET

- head to block (steel), for cylinder head overhaul

2шт.

18

A46383

MANIFOLD GASKET

- water flange, for cylinder head overhaul

1шт.

19

A46566

GASKET

- side cover, cylinder head, for overhaul

2шт.

21

A46368

MANIFOLD GASKET

- exhaust manifold, large, for cylinder head overhaul

2шт.

22

A46369

MANIFOLD GASKET

- exhaust manifold, small, for cylinder head overhaul

2шт.

23

A46360

GASKET

- intake manifold, for cylinder head overhaul

2шт.

A46362

GASKET

- intake tube (Not Shown), for cylinder head overhaul

1шт.

25

NLS

NO LONGER SERVICED

- fuel injection nozzle, copper, for cylinder head overhaul

3шт.

26

A46379

WASHER

- leak-off tube, for cylinder head overhaul

8шт.

27

A46613

GASKET

- intake manifold flange, for cylinder head overhaul

1шт.

A46880

SEALING RING

- rubber (Not Shown), for cylinder head overhaul

3шт.
