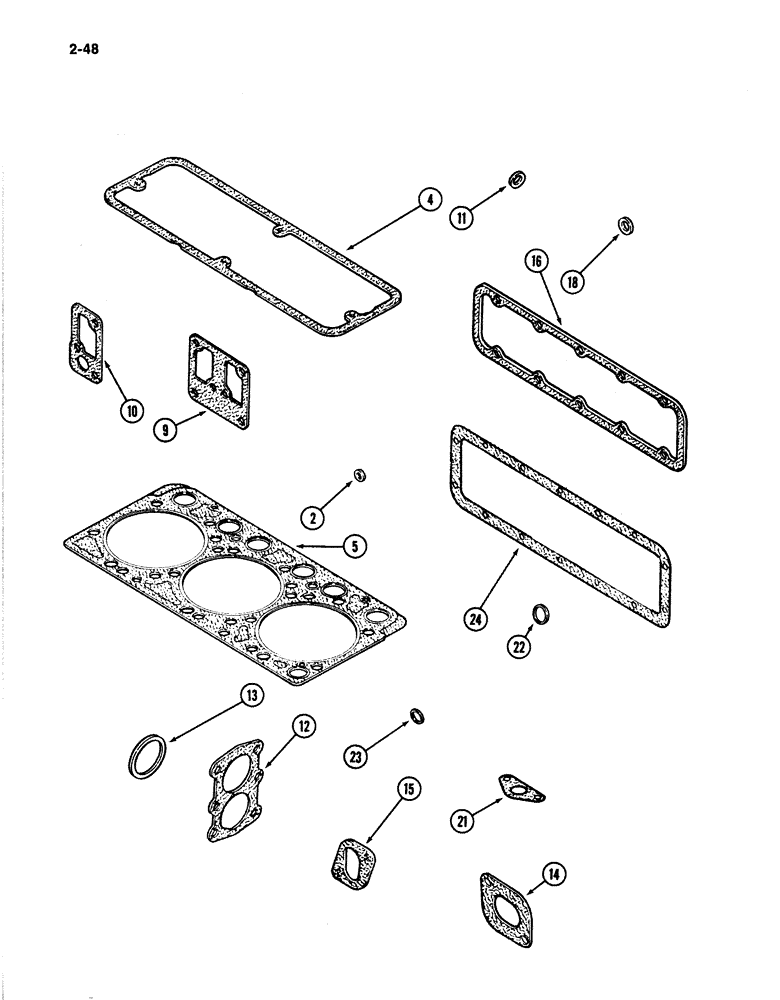

Запчасти Case IH 4894 (2-48) - GASKET KIT 674 CUBIC INCH DIESEL ENGINE, FOR COMPLETE ENGINE OVERHAUL (02) - ENGINE

A166159

KIT

GASKET KIT - complete engine overhaul, Includes: Ref. 2 - 24 and 25 - 51 on Fig. 2-50

1шт.

2

A45731

GASKET

WASHER - lube tubes

15шт.

A45737

GASKET

- valve cover nut (Order A46365) (Not Shown)

4шт.

4

A45742

GASKET

- valve, Serial Range: cover-head

2шт.

5

A166154

GASKET

-, Serial Range: head-block

2шт.

A46880

SEALING RING

- rubber (Not Shown)

6шт.

9

A46383

MANIFOLD GASKET

- water flange

1шт.

10

A46566

GASKET

- side cover, cylinder head

2шт.

11

A45766

GASKET

WASHER - injection, Serial Range: tube-nozzle

17шт.

12

A45769

GASKET,0.5mm Thk

- thermostat housing cover

1шт.

13

A45770

GASKET

- thermostat

2шт.

14

A46368

MANIFOLD GASKET

- exhaust manifold, large

2шт.

15

A46369

MANIFOLD GASKET

- exhaust manifold, small

2шт.

16

A46360

GASKET

- intake manifold

2шт.

A46362

GASKET

- intake tube (Not Shown)

1шт.

18

A45788

SEALING WASHER

WASHER - tube

1шт.

A45833

RING

O-RING - cylinder sleeve, upper and center (Not Shown)

12шт.

A45834

RING

O-RING - cylinder sleeve, lower (Not Shown)

6шт.

21

A45844

GASKET

- oil drain tube

1шт.

22

A45850

GASKET

WASHER - gasket, cylinder block plug

3шт.

23

A45852

GASKET

- drain cock

1шт.

24

A45856

GASKET

- side cover, cylinder block

2шт.

A166159

KIT

GASKET KIT - complete engine overhaul (Continued from Figure 2-48)

1шт.

25

A46437

GASKET

- timing gear housing

1шт.

26

A70923

GASKET

- timing cover

1шт.

27

A45871

GASKET

- tachometer drive cover

1шт.

A46359

GASKET

- oil cooler elbow (2 bolt hole) (Not Shown)

1шт.

A45876

RING,119.5 mm ID x 125.5 mm OD

O-RING - oil filler flange (Not Shown)

1шт.

A45876

RING,119.5 mm ID x 125.5 mm OD

O-RING - oil filler flange (Not Shown)

1шт.

30

A46438

GASKET

- flywheel housing

1шт.

31

A45879

SEAL

- oil, crankshaft rear

1шт.

32

A46436

GASKET

- breather tube

2шт.

33

A45913

O-RING,22.1 mm ID x 1.6 mm

- oil pump port

1шт.

A45927

LOCK WASHER

- lock, camshaft flange and idler gear (Not Shown)

4шт.

A45930

LOCK WASHER

- lock, camshaft nut (Not Shown)

1шт.

A45935

LOCK WASHER

- lock, idler gear (Not Shown)

1шт.

38

A45946

SEAL

- oil, injection pump drive shaft

1шт.

A45948

WASHER

- tachometer drive gear (Not Shown)

1шт.

40

A45968

GASKET

- oil pump suction tube

1шт.

41

A46069

GASKET

- fuel injection nozzle, copper

6шт.

42

A46379

WASHER

- leak-off tube

15шт.

43

A46178

O-RING,99.5 mm ID x 3mm

- blind cover, front

1шт.

44

A46193

O-RING,134.5 mm ID x 140.5 mm OD

- injection pump bracket

1шт.

45

A46434

GASKET

- return line

1шт.

46

A46258

GASKET

- water pump

1шт.

A46435

SEALING RING

- oil, crankshaft front (Not Shown) (Order A48640)

1шт.

51

A46613

GASKET

- oil cooler elbow (3 bolt hole)

1шт.

A46294

KIT

GASKET KIT - oil filter (See Figure 2-26)

1шт.
