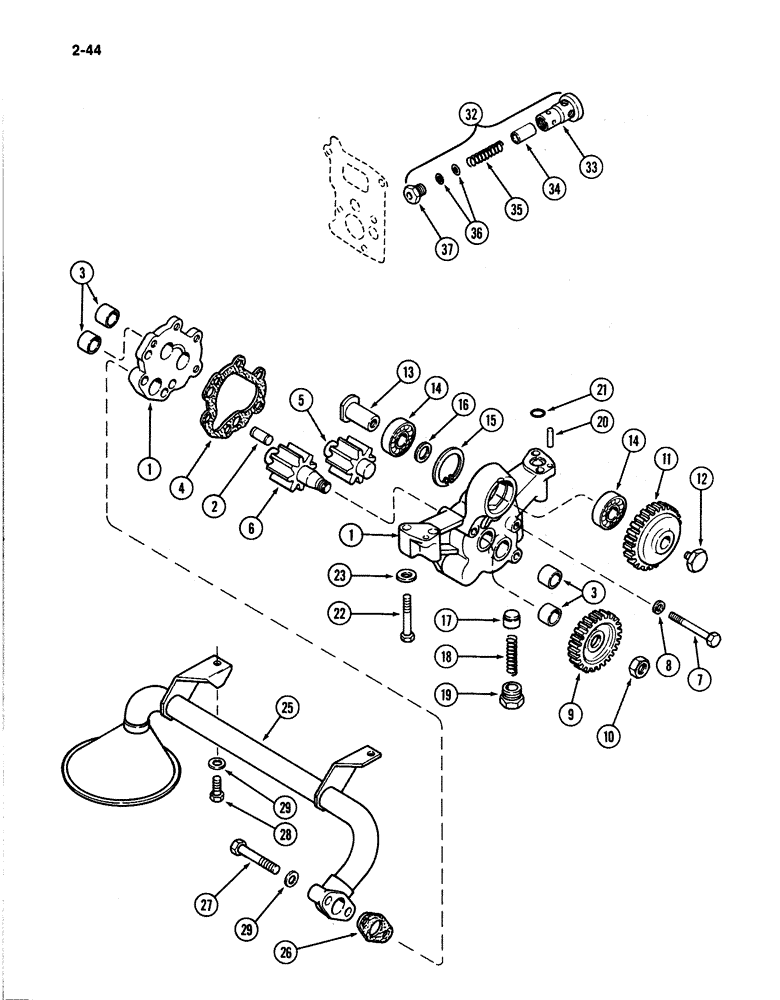

Запчасти Case IH 4894 (2-44) - OIL PUMP 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A46458

PUMP

ASSEMBLY - engine oil, Includes: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - pump gear (with matched cover) (Reference No. A46459), Includes: Ref. 2 and 3

1шт.

2

A45953

PIN

DOWEL -, Serial Range: cover-body

2шт.

3

A45954

BUSHING

- gear (in cover and housing)

4шт.

4

A45964

GASKET

- cover (0.05 mm)

1шт.

4

A45965

GASKET

- cover (0.07 mm)

1шт.

4

A45966

GASKET

- cover (0.10 mm)

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR - drive (Reference No. A45960)

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - driven (Reference No. A45963)

1шт.

7

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

8

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/64 inch (9 x 17 x 2 mm)

4шт.

9

A45961

GEAR

- pump drive

1шт.

10

A45962

NUT

- drive gear

1шт.

11

A45958

GEAR

- reverse idler

1шт.

12

A45959

BOLT

-, Serial Range: gear-shaft

1шт.

13

A45957

SHAFT

- reverse gear

1шт.

14

A45956

BALL BEARING

BEARING - reverse gear shaft

2шт.

15

A45972

RING

- snap, bearing

1шт.

16

A45955

BUSHING

SPACER - bearing

1шт.

17

A46460

PISTON

- damping

1шт.

18

A46461

SPRING

- piston

1шт.

19

A46462

PLUG

- piston

1шт.

20

A45969

PIN

DOWEL -, Serial Range: pump-engine

2шт.

21

A45913

O-RING,22.1 mm ID x 1.6 mm

- pump oil port

1шт.

22

814-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 8.8

- hex, M10 x 65 mm

4шт.

23

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

25

A46597

TUBE

- suction, oil, Serial Range: pump-pan

1шт.

26

A45968

GASKET

- suciton, Serial Range: tube-pump

1шт.

27

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 70

2шт.

28

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm (tube bracket)

2шт.

29

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/64 inch (9 x 17 x 2 mm)

4шт.

32

A46180

VALVE

ASSEMBLY - oil pressure, Includes: Ref. 33 - 37

1шт.

33

NSS

NOT SOLD SEPARAT

HOUSING - valve (Reference No. A70842), oil pressure

1шт.

34

NSS

NOT SOLD SEPARAT

PISTON - valve (Reference No. A70839), oil pressure

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING - pressure (Reference No. A70840), oil valve

1шт.

36

A46181

SHIM

- valve, oil pressure

1шт.

37

NSS

NOT SOLD SEPARAT

PLUG - valve (Reference No. A70843), oil pressure

1шт.
