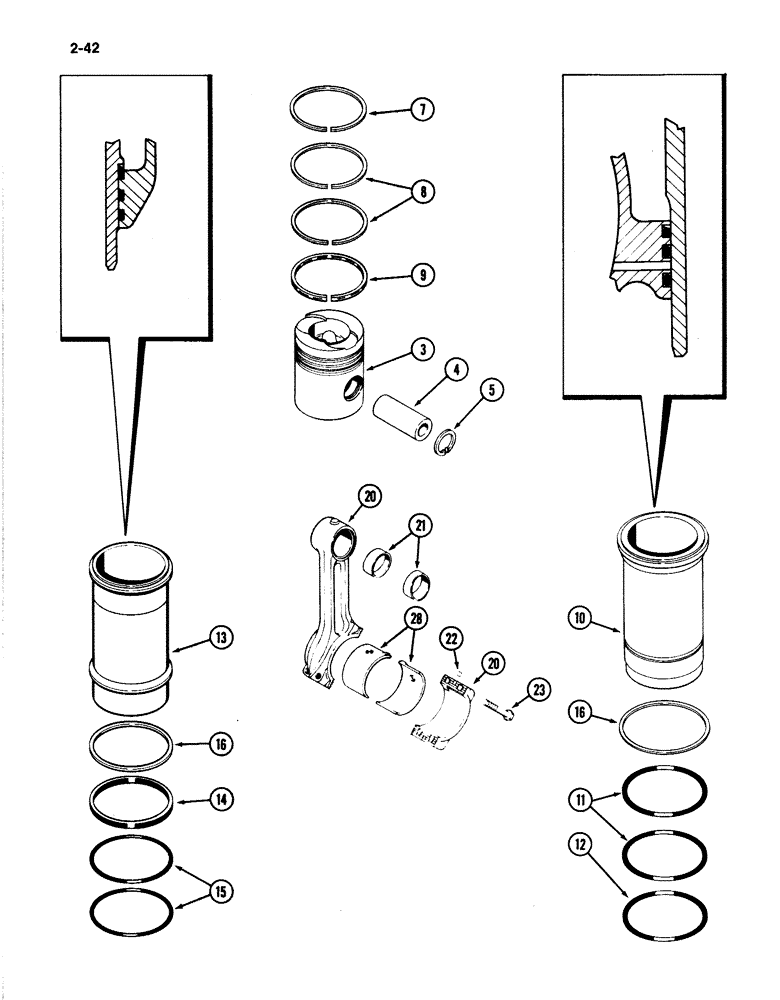

Запчасти Case IH 4894 (2-42) - PISTONS 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A46320

PISTON

ASSEMBLY - engine, Includes: Ref. 3 - 9

6шт.

3

NSS

NOT SOLD SEPARAT

PISTON - engine (Reference No. A45889)

1шт.

4

A46297

PIN

- piston

1шт.

5

A46174

SNAP RING,M50, Int

RING - snap, piston pin retaining

2шт.

A166224

RING, SET

RING KIT - piston, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

RING - compression, (top groove) (Rerference No. A45890)

1шт.

8

NSS

NOT SOLD SEPARAT

RING - compression, (second and third groove) (Reference No. A45891)

2шт.

9

NSS

NOT SOLD SEPARAT

RING - oil control (fourth groove) (Reference No. A45892)

1шт.

10

A45832

SLEEVE

- piston

6шт.

Used with A70658 cylinder block

1шт.

11

A45833

RING

O-RING - sealing, upper and center

12шт.

12

A45834

RING

O-RING - sealing, lower

6шт.

13

A70915

SLEEVE CYLINDER

SLEEVE - piston

6шт.

Used with A70918 cylinder block

1шт.

14

A46816

RING

- sealing

6шт.

15

A45834

RING

O-RING - sealing (Middle and bottom)

12шт.

Used with A70918 cylinder block

1шт.

16

A45835

SHIM,0.20mm Thk

Sleeve 0.20mm Thk

1шт.

16

A45836

SHIM,0.25mm Thk

Sleeve 0.25mm Thk

1шт.

16

A45837

SHIM,.030mm Thk

Sleeve .030mm Thk

1шт.

16

A45838

SHIM,0.50mm Thk

Sleeve 0.50mm Thk

1шт.

16

CAS45839

- sleeve (0.75 mm)

1шт.

20

A45894

ROD

ASSEMBLY - connecting, Includes: Ref. 21 - 23

6шт.

21

A45896

BEARING

BUSHING - piston pin connecting rod

2шт.

22

A45898

PIN

DOWEL - cap locating, connecting rod

2шт.

23

A45897

BOLT

- connecting rod cap

4шт.

28

A46445

LINING

LINER - connecting rod bearing (Standard)

12шт.

28

A46446

PACKAGE

LINER - connecting rod bearing (0.25 mm undersize)

12шт.

28

A46447

LINING

LINER - connecting rod bearing (0.50 mm undersize)

12шт.

28

A46448

LINING

LINER - connecting rod bearing (0.75 mm undersize)

12шт.

28

A46426

LINING

LINER - conecting rod bearing (1.0 mm undersize)

12шт.

28

A46556

LINING

LINER - connecting rod bearing (1.25 mm undersize)

12шт.

28

A45557

RECTIFIER

LINER - connecting rod bearing (1.50 mm undersize)

12шт.
