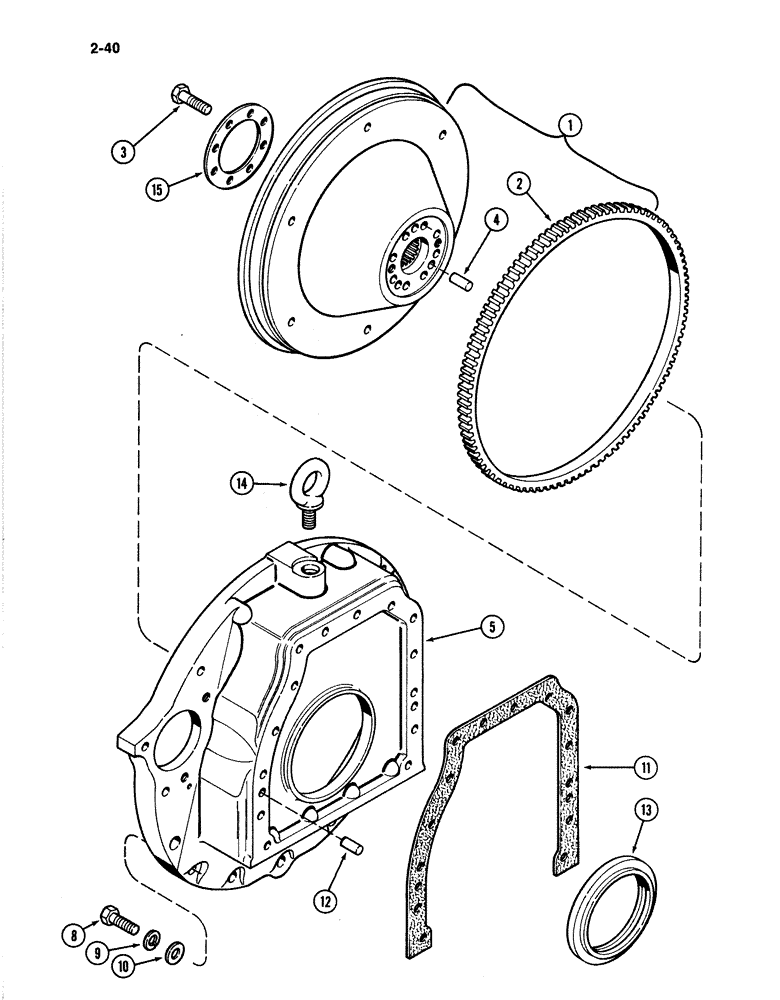

Запчасти Case IH 4894 (2-40) - FLYWHEEL AND HOUSING 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A46321

FLYWHEEL

ASSEMBLY - crankshaft, Includes: Ref. 2

1шт.

2

A46340

GEAR

- ring

1шт.

3

814-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 8.8

8шт.

4

A45908

PIN

DOWEL -, Serial Range: flywheel-crankshaft

3шт.

5

A45877

HOUSING

- flywheel

1шт.

8

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, M12 x 45 mm

14шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

14шт.

10

A46663

WASHER

- housing

14шт.

11

A46438

GASKET

-, Serial Range: housing-block

1шт.

12

A46655

PIN

- guide, Serial Range: housing-block

2шт.

13

A45879

SEAL

- oil, crankshaft rear

1шт.

14

A46171

BOLT

- lifting eye

1шт.

15

A70740

WASHER

PLATE - washer, flywheel

1шт.
