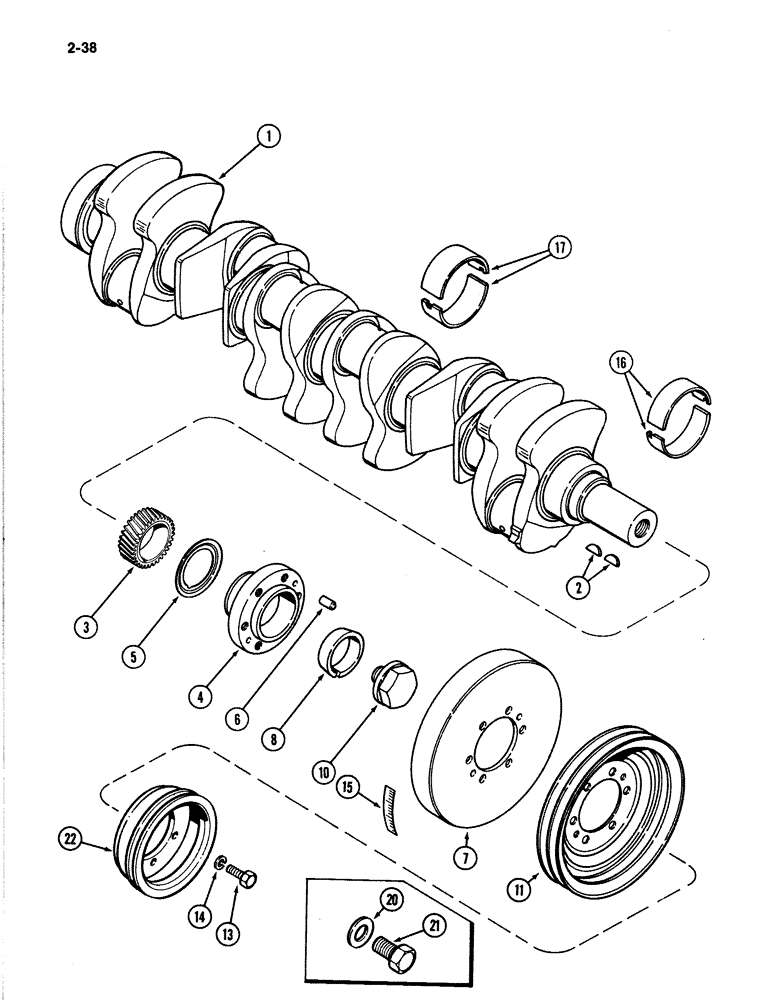

Запчасти Case IH 4894 (2-38) - CRANKSHAFT 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A46616
CRANKSHAFT
- engine
1шт.
2
A46182
KEY
- pinion and, Serial Range: hub-crankshaft
2шт.
3
A45909
GEAR
PINION - crankshaft gear
1шт.
4
A46554
HUB
- damper
1шт.
5
A70744
DEFLECTOR
- damper hub
1шт.
6
A45921
PIN
- guide, Serial Range: damper-hub
2шт.
7
A45914
DAMPER
- vibration, crankshaft
1шт.
8
A45916
CONE
- damper hub
1шт.
10
A48591
FLANGE BOLT
BOLT - hub to crankshaft (Order Ref. 20 and 21)
1шт.
11
A45918
PULLEY
- drive, two groove (If equipped)
1шт.
13
814-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd
- hex, M12 x 35 mm
6шт.
14
195-533
WASHER,1/2", SAE
- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 27 x 2 mm)
6шт.
15
A46398
TAPE
- timing indicator (Not Shown)
1шт.
16
A46441
LINING
LINER - main bearing, crankshaft (Standard)
12шт.
16
A46476
LINING
LINER - main bearing, (101.37 mm undersize) (subs to 87403190 which is a set of two, only order 6 sets)
12шт.
16
A46442
LINING
LINER - main bearing, (101.12 mm undesize)
12шт.
16
A46443
BEARING LINER
LINER - main bearing, (100.87 mm undersize)
12шт.
16
A46470
LINING
LINER - main bearing, (100.62 mm undersize)
12шт.
16
A46471
BEARING LINER
LINER - main bearing, (100.37 mm undersize)
12шт.
16
A46444
LINING
LINER - main bearing, (100.12 mm undersize)
12шт.
17
A46456
LINING
LINER - center bearing, crankshaft (Standard)
2шт.
17
A46187
LINING
LINER - center bearing (101.37 mm undersize)
2шт.
17
A46188
LINING
LINER - center bearing (101.12 mm undersize)
2шт.
17
A46189
LINING
LINER - center bearing (100.87 mm undersize)
2шт.
17
A46472
LINING
LINER - center bearing (100.62 mm undersize)
2шт.
17
A46473
LINING
LINER - center bearing (100.37 mm undersize)
2шт.
17
A46192
LINING
LINER - center bearing (100.12 mm undersize)
2шт.
20
A70912
WASHER
- hardened
1шт.
21
A70913
SCREW,Hex, M26 x 1.5 x 44mm
BOLT - hex, M26 x 44 mm
1шт.
22
A45893
PULLEY
- drive, one groove (If equipped) equipped)
1шт.
Выбрано товаров: 30
