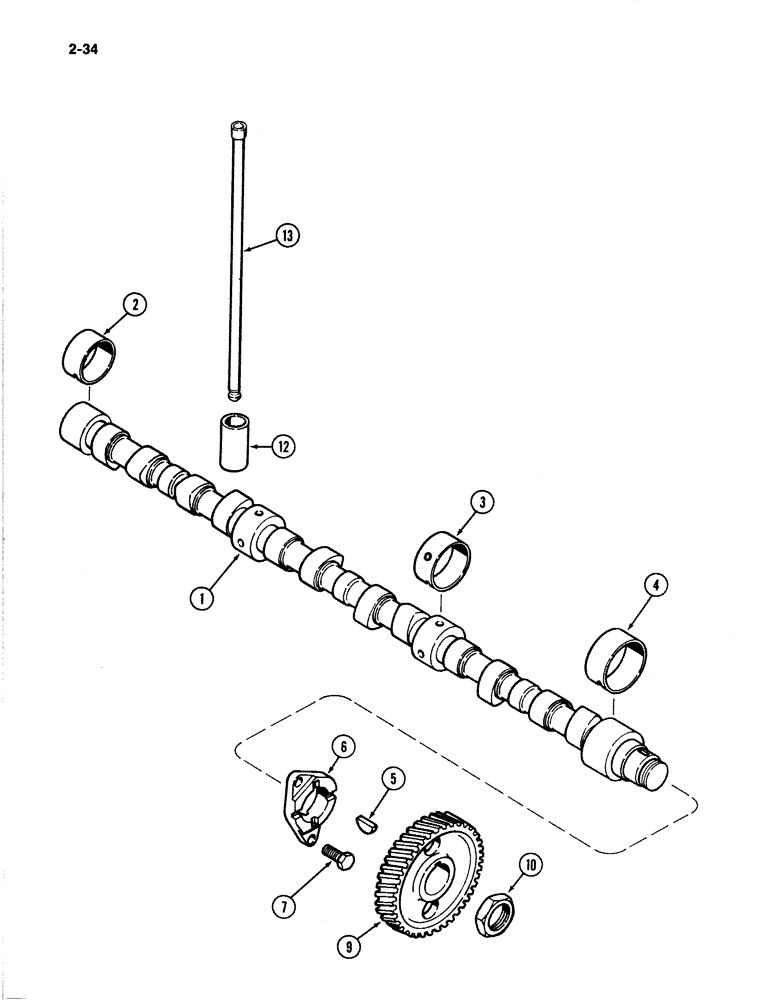

Запчасти Case IH 4894 (2-34) - CAMSHAFT 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A46589

SHAFT

CAMSHAFT - engine

1шт.

2

A45925

BEARING LINER

BUSHING - rear

1шт.

3

A45924

BEARING LINER

BUSHING - intermediate

2шт.

4

A45923

BEARING LINER

BUSHING - front

1шт.

2, 3, 4, Bushings need maching after installation

1шт.

5

A46183

KEY

- camshaft gear

1шт.

6

A45926

FLANGE

- camshaft

1шт.

7

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

9

A45928

GEAR

- camshaft

1шт.

10

A45929

NUT

- camshaft gear

1шт.

12

A45936

TAPPET

- valve

12шт.

13

A46357

ROD

- push, valve

12шт.
