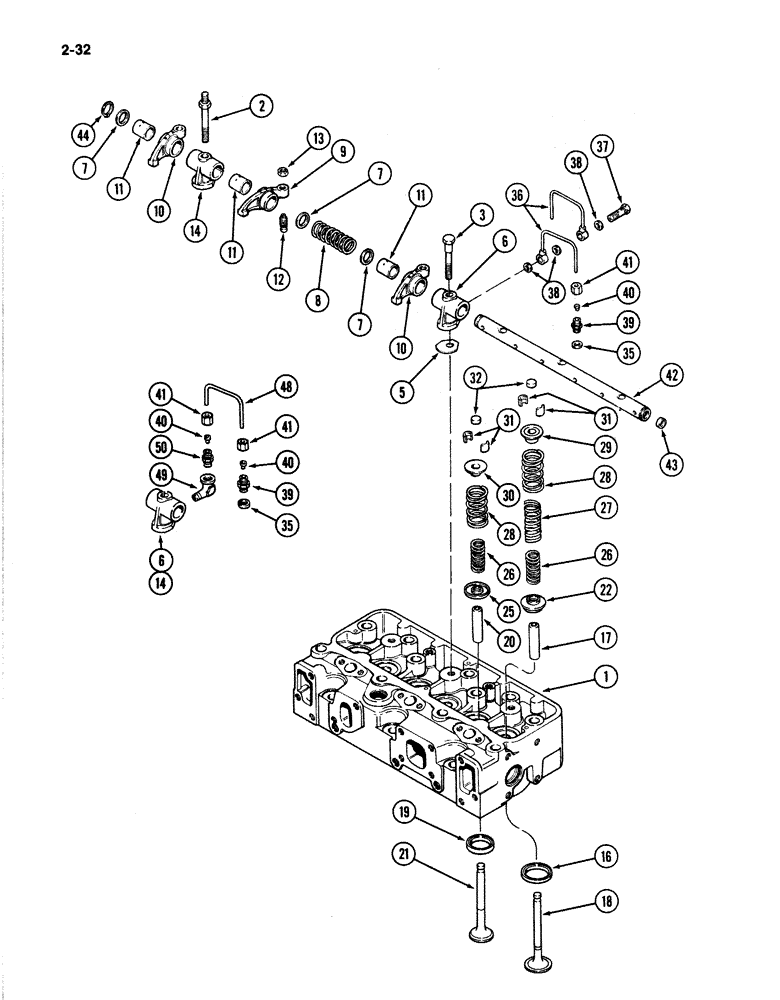

Запчасти Case IH 4894 (2-32) - VALVE MECHANISM 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD ASSEMBLY - cylinder (See Figure 2-30)

2шт.

2

A45728

STUD

- rocker arm brackets, outer

4шт.

3

A70606

BOLT

- hex, M12 x 1.75 x 80 mm

2шт.

5

A45727

GASKET

- bracket, rocker arm shaft

6шт.

6

A45726

BRACKET

- center, rocker arm shaft

2шт.

7

A45724

WASHER

- rocker arm shaft

12шт.

8

A45722

SPRING

- rocker arm shaft

4шт.

9

A70603

ROCKER

ARM ASSEMBLY - rocker right (Includes Ref 11)

6шт.

10

A70601

ARM

ASSEMBLY - rocker left, (Includes: Ref. 11)

6шт.

11

A70691

BUSHING

- rocker arm (Ream after assembly)

1шт.

12

A45718

STUD

- adjusting, rocker arm

12шт.

13

A45760

NUT

- lock, adjusting stud

12шт.

14

A45725

BRACKET

- outer , rocker arm shaft

4шт.

16

REF

INSTRUCTION

SEAT - intake valve (See Figure 2-30)

6шт.

17

REF

INSTRUCTION

GUIDE - intake valve (See Figure 2-30)

6шт.

18

A70938

VALVE

- intake

6шт.

19

REF

INSTRUCTION

SEAT - exhaust valve (See Figure 2-30)

6шт.

20

REF

INSTRUCTION

GUIDE - exhaust valve (See Figure 2-30)

6шт.

21

A70609

VALVE

- exhaust

6шт.

22

A46431

ROTOR

ROTATOR - intake valve stem

6шт.

25

A45710

WASHER

- lower, exhaust valve spring

6шт.

26

A45709

SPRING

- inner, valve stem

12шт.

27

A46325

SPRING

- damper, intake valve

6шт.

28

A45708

SPRING

- outer, valve stem

12шт.

29

A46315

WASHER

- upper, valve spring

6шт.

30

A45711

WASHER

- exhaust valve, upper (Order A46315 and A46325)

6шт.

31

A45712

KEY

- valve stem

24шт.

32

A45713

CAP

- valve stem

12шт.

35

A45731

GASKET

- washer, lube tube fitting

4шт.

36

A45729

TUBE

- lube oil, rocker shaft (See Ref. 48, 49 and 50)

4шт.

37

A45730

BOLT

- hollow, lube, Serial Range: tube-bracket

2шт.

38

A45731

GASKET

- washer, lube tube fitting

6шт.

39

A70607

ANCHOR

CONNECTOR -, Serial Range: tube-head

4шт.

40

A46549

CLAMP

SLEEVE - tube connector

4шт.

41

A46698

TUBE NUT

- tube connector

4шт.

42

A46586

SHAFT

ASSEMBLY - rocker arm, Includes: Ref. 43

2шт.

43

A46587

PLUG

- bowl type

2шт.

44

A46588

RING

- retaining

4шт.

48

A70931

TUBE

- lube oil, rocker shaft (If equipped)

2шт.

49

A70929

FITTING

ELBOW - 90 degree, tube fitting

2шт.

50

A70930

SUN VISOR

CONNECTOR - straight, tube fitting

2шт.
