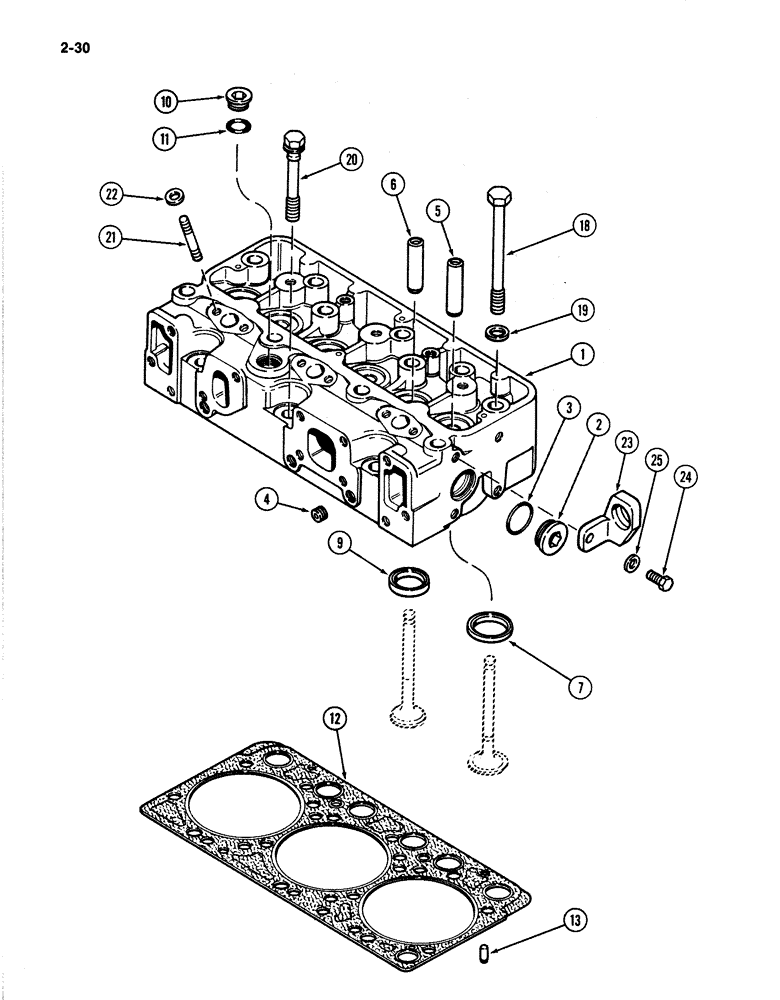

Запчасти Case IH 4894 (2-30) - CYLINDER HEAD 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A46415

CYLINDER HEAD

HEAD ASSEMBLY - cylinder, Includes: Ref. 2 - 11

2шт.

2

A45701

PLUG

- front and rear

2шт.

3

A45719

O-RING,39.3 mm ID x 1.6 mm

- plug

2шт.

4

A45720

PLUG

- side

3шт.

5

A46560

VALVE

GUIDE - intake valve

3шт.

6

A46561

VALVE

GUIDE - exhaust valve

3шт.

7

A46417

SEAT

- intake valve

3шт.

7

A46418

SEAT

- intake valve (Oversize)

1шт.

9

A45705

VALVE SEAT

SEAT - exhaust valve

3шт.

9

A46867

SEAL

SEAT - exhaust valve (Oversize)

1шт.

10

A46425

PLUG

- M27 x 1.5 mm

1шт.

11

A46424

RING

O-RING - M29.1 x 1.6 mm

1шт.

12

A166154

GASKET

- cylinder, Serial Range: head-block

2шт.

13

A45970

PIN

DOWEL -, Serial Range: head-block

4шт.

18

A45751

STEP BOLT

BOLT - cylinder head to block, M16 x 170 MM

22шт.

19

A45763

WASHER

- head bolt

22шт.

20

A45752

STEP BOLT

BOLT - cylinder head to block (18 x 110 mm)

6шт.

21

A46567

STUD

- injector nozzle

12шт.

22

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

12шт.

23

A45740

BRACKET

- lift, cylinder head

1шт.

24

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

25

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

2шт.
