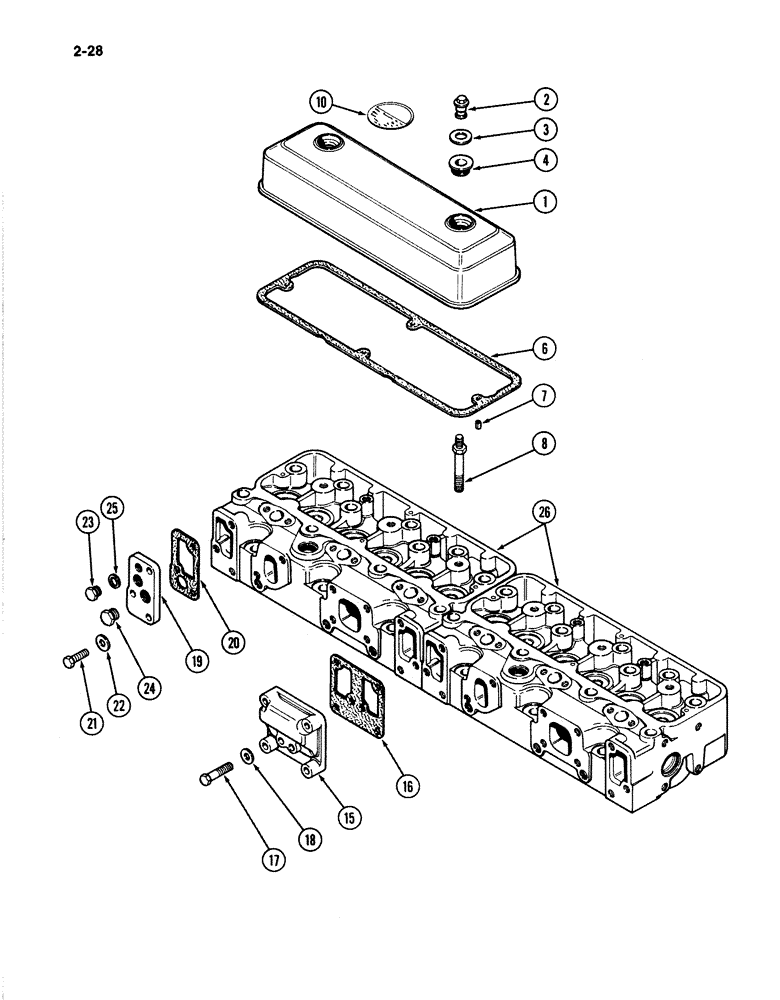

Запчасти Case IH 4894 (2-28) - CYLINDER HEAD COVERS 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A46528

COVER

- valve and head

2шт.

2

A46529

NUT

- cup, cover fastener

4шт.

3

A46364

WASHER

- fastener nut

4шт.

4

A46530

SEALING RING

- rubber, Serial Range: nut-cover

4шт.

6

A45742

GASKET

-, Serial Range: cover-head

2шт.

7

A45743

PIN

- tension, Serial Range: cover-head

8шт.

8

A45728

STUD

- valve cover and, Serial Range: bracket-head

4шт.

10

A166862

DECAL

- valve clearance

1шт.

15

A45754

FLANGE

- water connection, cylinder head

1шт.

16

A46383

MANIFOLD GASKET

-, Serial Range: flange-head

1шт.

17

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

18

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 27 x 2 mm)

2шт.

19

A46627

FLANGE

COVER - cylinder head, rear right side

1шт.

20

A46566

GASKET

- rear cover

1шт.

21

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- hex, M12 x 35 mm

3шт.

22

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 27 x 2 mm)

3шт.

23

A45764

PLUG

- cover

1шт.

24

A45765

PLUG

- cover

2шт.

25

A45766

GASKET

WASHER - plug

1шт.

26

REF

INSTRUCTION

HEAD - cylinder (See Figure 2-30)

2шт.
