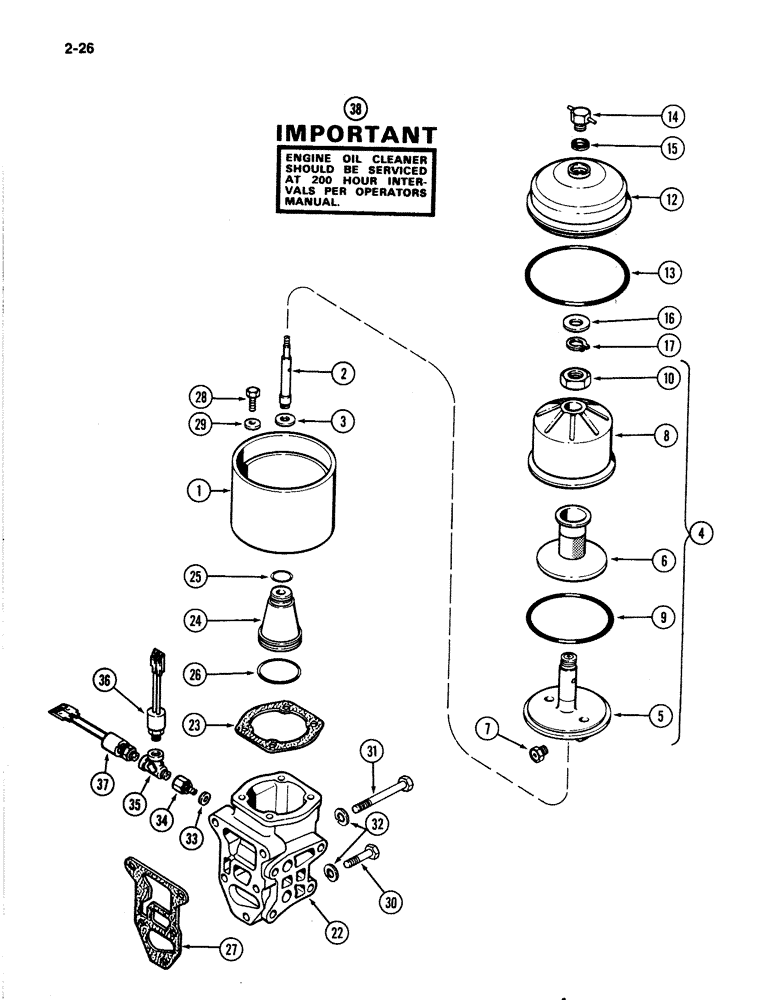

Запчасти Case IH 4894 (2-26) - OIL CLEANER 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A48626

CLEANER

ASSEMBLY - engine oil, Includes: Ref. 1 - 17

1шт.

1

A45975

HOUSING

- oil cleaner

1шт.

2

A45978

SPINDLE

- rotor

1шт.

3

A45993

WASHER

- spindle

1шт.

4

A48511

ROTOR

ASSEMBLY - oil cleaner, Includes: Ref. 5 - 10

1шт.

5

A48512

IMPELLER

ROTOR - oil cleaner

1шт.

6

A48513

FILTER

- oil

1шт.

7

A48516

PLUG

NOZZLE - rotor

1шт.

8

A48514

COVER

- filter

2шт.

9

A48515

O-RING

-, Serial Range: cover-rotor

1шт.

Part of Oil Cleaner Gasket Kit, P/N A70589, and four parts listed below this

1шт.

10

A48574

NUT

- cover

1шт.

12

A48627

COVER

- body

1шт.

13

A45992

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

- cover

1шт.

Part of Oil Cleaner Gasket Kit, P/N A70589, and four parts listed below this

1шт.

14

A48504

NUT

ASSEMBLY - lock, cover, Includes: Ref. 15 - 17

1шт.

15

A48503

O-RING

- cover nut

1шт.

Part of Oil Cleaner Gasket Kit, P/N A70589, and four parts listed below this

1шт.

16

A45996

WASHER

- cover nut

1шт.

17

A45987

RING

- snap, cover nut

1шт.

Part of Oil Cleaner Gasket Kit, P/N A70589, and four parts listed below this

1шт.

22

A46396

BRACKET

- oil cleaner

1шт.

Added A46209 Gasket & A46469 Plug

1шт.

23

A45976

GASKET

- cleaner, Serial Range: housing-bracket

1шт.

Part of Oil Cleaner Gasket Kit, P/N A70589, and four parts listed below this

1шт.

24

A45977

FILTER, ELEMENT

ELEMENT - oil cleaner

1шт.

25

A70916

O-RING,26 mm ID

- element (Small)

1шт.

Part of Oil Cleaner Gasket Kit, P/N A70589, and four parts listed below this

1шт.

26

A70919

O-RING,2.362" ID x 2.568" OD

- element (Large)

1шт.

Part of Oil Cleaner Gasket Kit, P/N A70589, and four parts listed below this

1шт.

27

A45988

GASKET

1шт.

Part of Oil Cleaner Gasket Kit, P/N A70589, and four parts listed below this

1шт.

28

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

29

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

30

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

4шт.

31

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- Hex, M10 x 100, 8.8

1шт.

32

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

5шт.

33

A45731

GASKET

- reducer, aluminum

1шт.

34

A165876

NIPPLE, LUBE

REDUCER - adapter, M10 x 1/8 inch PT

1шт.

35

217-50

TEE,1/8"-27 NPTF Fem x 1/8"-27 NPTF Male Run

- brass, 1/8 x 1/8 x 1/8 inch PT

1шт.

36

A167644

PRESSURE SWITCH

SWITCH - oil pressure, 40 PSI (276 kPa)

1шт.

37

A177628

SWITCH

- oil pressure, 15 PSI (105 kPa) (Replaces A167996)

1шт.

Ref #37 - A177628 Switch, Engine Oil Pressure, 8 PSI

1шт.

38

A180081

DECAL

- oil cleaner

1шт.

A70859

GASKET

KIT - gasket, oil cleaner, Includes: ref. nos. 9, 13, 15, 17, 23, 25, 26 and 27 plus the following parts), Includes gaskets and O-rings

1шт.

A46798

GASKET

- bracket to block (Not used)

1шт.

A45991

O-RING,4.359" ID x 4.637" OD

- cover to rotor (Not used) (Replaces NSS)

1шт.

A45995

GASKET

- cover nut (Not used)

1шт.

A46154

GASKET

- cleaner to bracket (See Ref, 10, Figure 2-24) Figure 2-24)

1шт.
