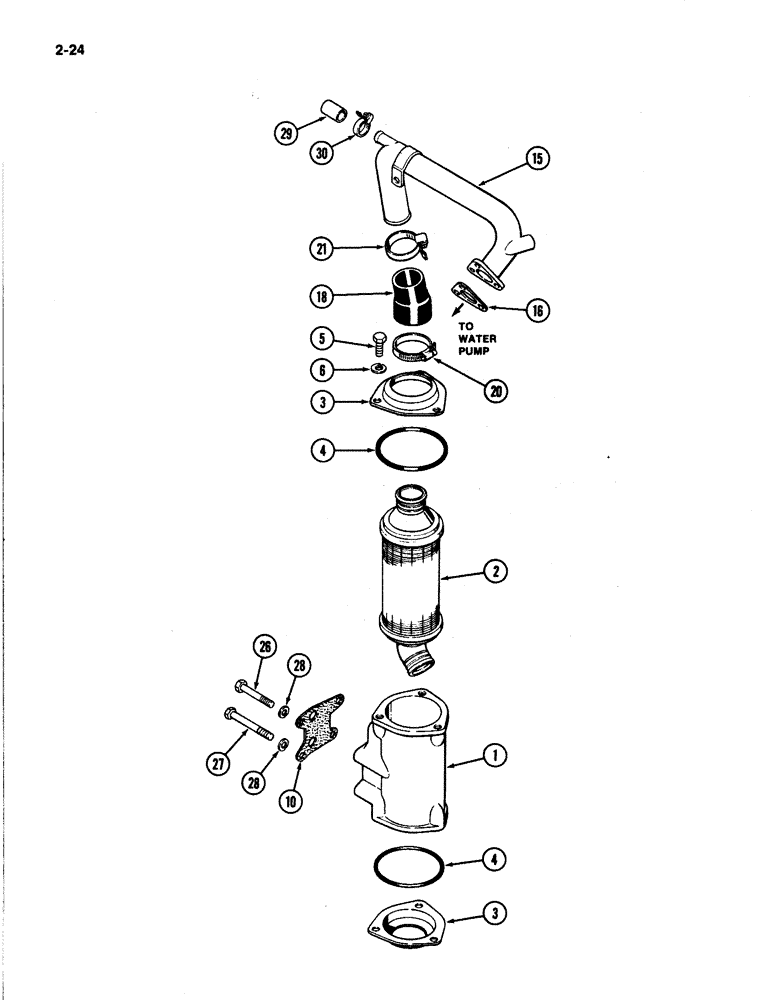

Запчасти Case IH 4894 (2-24) - OIL COOLER 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A46882

COOLER, OIL

COOLER ASSEMBLY - engine oil, Includes: Ref. 1 - 6

1шт.

1

A46883

HOUSING

BODY - cooler assembly

1шт.

2

NSS

NOT SOLD SEPARAT

ELEMENT - cooler (cleanable type)

1шт.

3

A70909

COVER

- cooler element

1шт.

4

A46195

O-RING,3.859" ID x 4.137" OD

- cover seal

2шт.

5

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

6шт.

6

195-515

WASHER,#12

- flat, 1/4 x 1/2 x 3/64 inch (6 x 13 x 1 mm)

6шт.

10

A46154

GASKET

- cooler and, Serial Range: cleaner-bracket

1шт.

15

A46884

TUBE

- cooler to water pump

1шт.

16

A46542

GASKET

- tube to water pump

1шт.

18

A46199

HOSE

-, Serial Range: tube-cooler

1шт.

20

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose to cooler, 2-5/16 to 3-1/4 inch (59 to 83 mm)

1шт.

21

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33 x 57 mm) #28, 1.31/2.25 Type F Worm

1шт.

26

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

1шт.

27

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- Hex, M10 x 100, 8.8

3шт.

28

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

29

A46201

PLUG

- cooler tube

1шт.

30

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - plug retaining

1шт.
