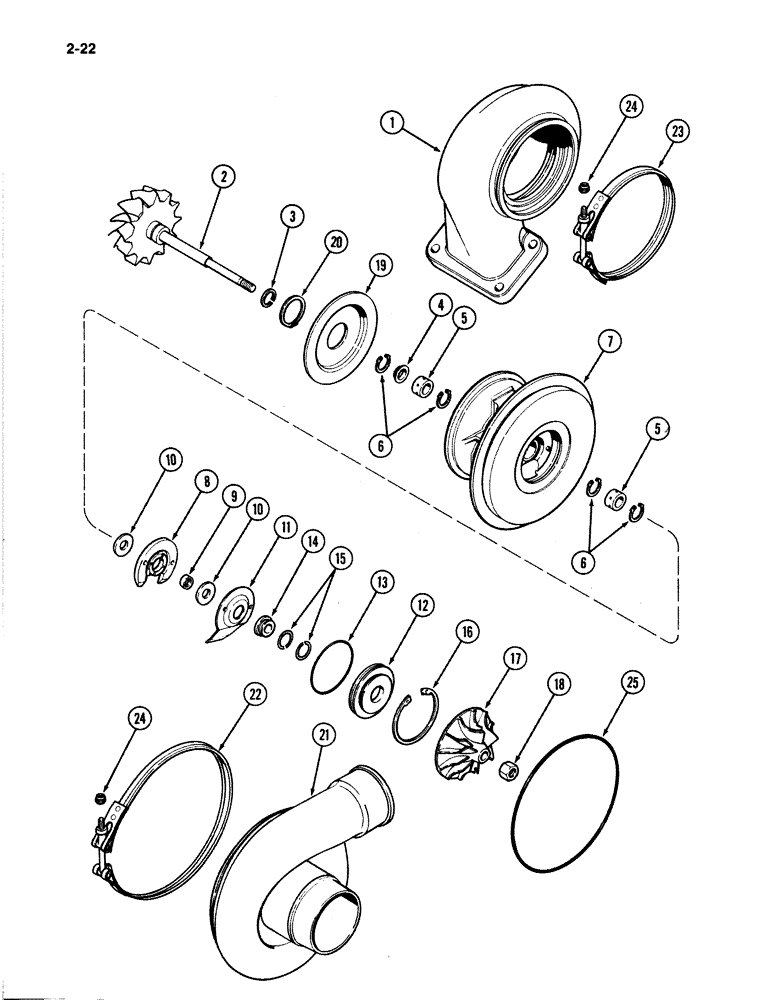

Запчасти Case IH 4894 (2-22) - TURBOCHARGER ASSEMBLY 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A46463

TURBOCHARGER

ASSEMBLY - engine (Schwitzer), Includes: Ref. 1 - 25

1шт.

1

A45791

HOUSING

- turbocharger

1шт.

A45792

CORE

ASSEMBLY - turbo service

1шт.

2

A45793

SHAFT

TURBINE SHAFT ASSEMBLY - turbocharger

1шт.

3

A45794

SEAL

RING - seal, turbine shaft

1шт.

Part of Turbocharger Repair Kit, P/N A70908

1шт.

4

A45795

SLEEVE

- oil control

1шт.

Part of Turbocharger Repair Kit, P/N A70908

1шт.

5

A45796

BEARING LINER

BEARING - turbine shaft

2шт.

Part of Turbocharger Repair Kit, P/N A70908

1шт.

6

A45809

RING, SNAP

RING - snap, bearing retainer

4шт.

Part of Turbocharger Repair Kit, P/N A70908

1шт.

7

A45797

HOUSING

- bearing

1шт.

8

A45798

PLATE

- thrust

1шт.

Part of Turbocharger Repair Kit, P/N A70908

1шт.

9

A45799

WASHER

SPACER - thrust

1шт.

10

A45800

RING

- thrust

2шт.

11

A45801

DEFLECTOR

- oil

2шт.

12

A45802

INSERT

- compressor wheel

1шт.

13

A45812

O-RING

- insert

1шт.

Part of Turbocharger Repair Kit, P/N A70908

1шт.

14

A45803

SPACER

- sleeve

1шт.

15

A45813

SEAL

RING - seal, compressor

2шт.

Part of Turbocharger Repair Kit, P/N A70908

1шт.

16

A45811

RING

- snap

1шт.

17

A45804

WHEEL

- compressor

1шт.

18

A45815

LOCK NUT

NUT - lock

1шт.

19

A45805

PLATE

BACKPLATE - turbine

1шт.

20

A45810

RING, SNAP

RING - snap, backplate

1шт.

21

A45806

COVER

- compressor

1шт.

22

A45807

CLAMP

- compressor cover

1шт.

23

A45808

CLAMP

- turbine housing

1шт.

24

A45816

LOCK NUT

NUT - lock, clamp

2шт.

25

A45814

O-RING

- bearing housing

1шт.

A46144

KIT

- turbocharger service, outer, Includes gaskets, filters and O-ring

1шт.

A46160

GASKET

- lube tube to turbocharger (See Figure 2-20)

1шт.

A46162

GASKET

- drain tube to turbocharger (See Figure 2-20)

1шт.

A46158

FILTER, ELEMENT

FILTER - oil (See Figure 2-20)

1шт.

A46185

MANIFOLD GASKET

- turbocharger to manifold (See Figure 2-16)

1шт.

A46855

GASKET

- exhaust manifold

1шт.

NSS

NOT SOLD SEPARAT

O-RING - turbocharger (Not used)

1шт.

A70908

KIT - turbocharger repair, inner, Includes: ref. nos. 3, 4, 5, 6, 8, 13, and 15

1шт.
