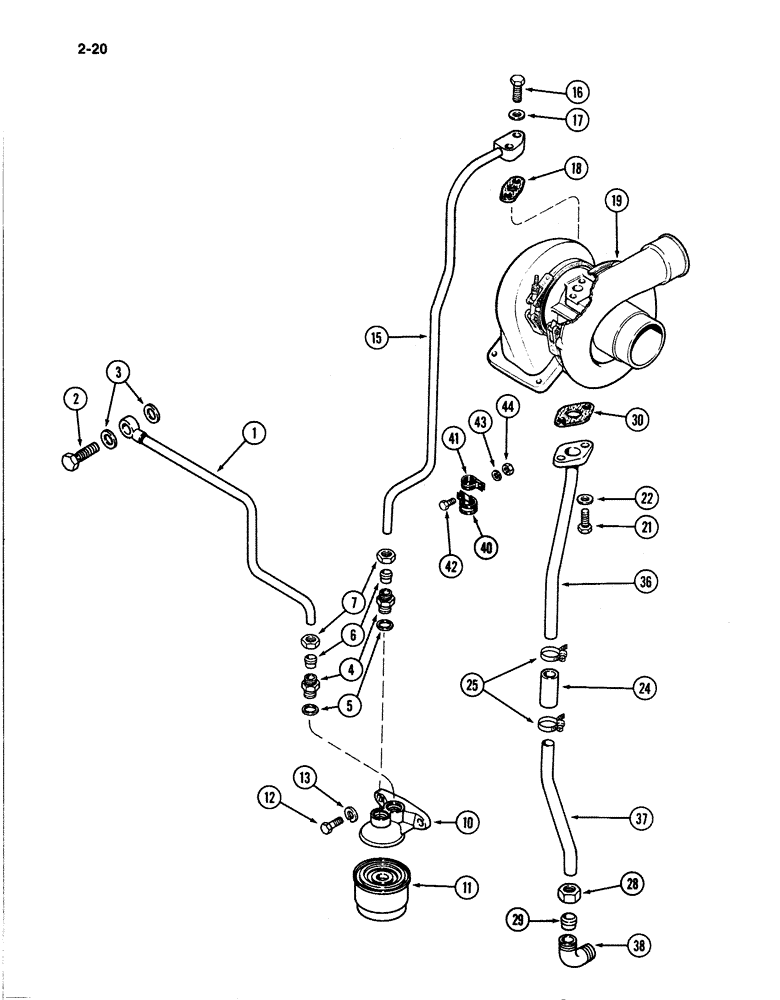

Запчасти Case IH 4894 (2-20) - TURBOCHARGER LUBRICATING SYSTEM 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A46607
TUBE
- block to filter, lubrication oil
1шт.
2
A46600
BOLT
- hollow, Serial Range: tube-block
1шт.
3
A46323
WASHER
- gasket, tube fitting
2шт.
4
A46609
CONNECTOR, ELEC
CONNECTOR -, Serial Range: tube-filter
2шт.
5
A45850
GASKET
GASKET -, Serial Range: connector-filter
2шт.
6
A46611
SLEEVE
-, Serial Range: connector-tube
2шт.
7
A46610
NUT
-, Serial Range: connector-tube
2шт.
A46157
FILTER
ASSEMBLY - lube oil, Includes: Ref. 10 and 11
1шт.
10
NSS
NOT SOLD SEPARAT
HOUSING - filter
1шт.
11
A46158
FILTER, ELEMENT
ELEMENT - oil filter
1шт.
12
814-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
2шт.
13
195-525
WASHER,3/8", SAE
- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)
2шт.
15
A46608
TUBE
- lube oil, Serial Range: filter-turbocharger
1шт.
16
814-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
2шт.
17
195-525
WASHER,3/8", SAE
- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)
2шт.
18
A46160
GASKET
-, Serial Range: tube-turbocharger
1шт.
19
REF
INSTRUCTION
TURBOCHARGER - engine (See Figure 2-22)
1шт.
21
814-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd
2шт.
22
195-525
WASHER,3/8", SAE
- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)
2шт.
24
A46163
HOSE
- tube connecting
1шт.
25
214-254
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
CLAMP - hose, 1-3/16 to 1-3/4 inch (30 to 44 mm)
2шт.
28
A46582
NUT
- tube nipple
1шт.
29
A46584
CAP
FERRULE - return tube
1шт.
30
A46162
GASKET
-, Serial Range: connector-block
1шт.
36
A46601
TUBE
- upper drain, turbocharger
1шт.
37
A46602
TUBE
- lower oil, Serial Range: return-block
1шт.
38
A46603
FITTING
ELBOW - 90 degree, Serial Range: tube-block
1шт.
40
A70874
CLAMP ASSEMBLY - tube
1шт.
41
A46612
CLAMP
ASSEMBLY - tube
1шт.
42
A46074
BOLT
- hex, M6 x 22 mm
1шт.
43
195-515
WASHER,#12
- flat 1/4 x 1/2 x 3/64 inch (6 x 13 x 1 mm)
1шт.
44
825-1006
NUT,M6, Cl 8
- M6
1шт.
Выбрано товаров: 32
